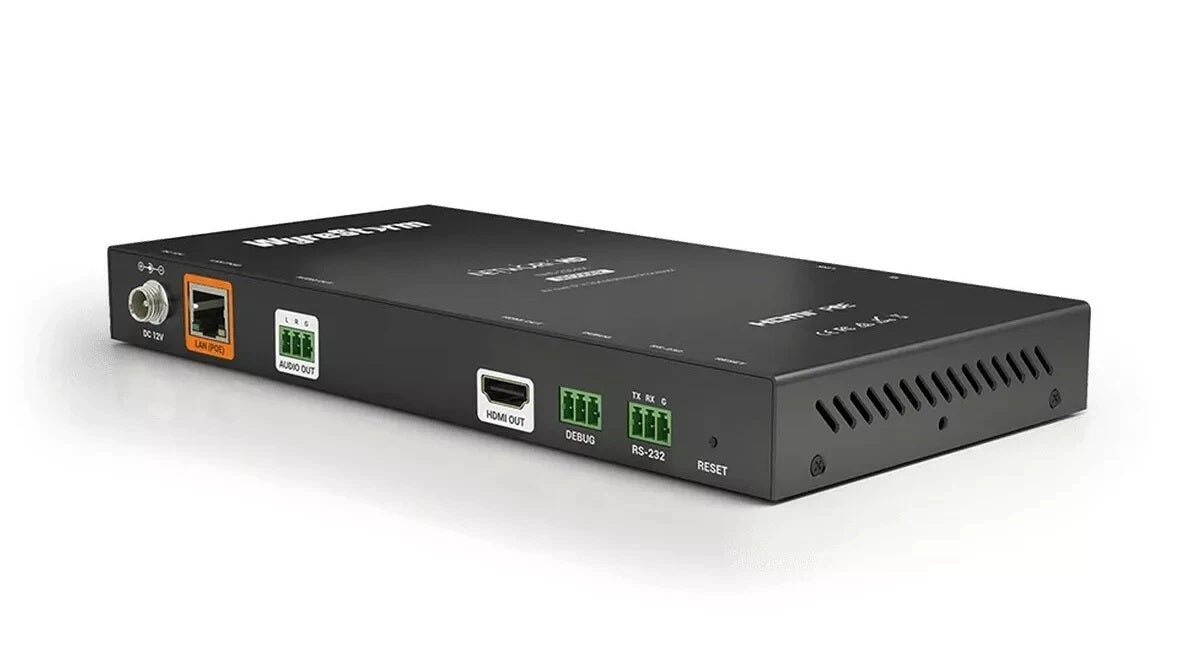

The WyreStorm NetworkHD NHD-250-RX is an advanced H.264 MultiView processor and decoder designed for professional AV-over-IP distribution. It is primarily used to display multiple video streams—up to nine simultaneous feeds—on a single 4K display.
Specifications
Model Number: NHD-250-RX
Brand: WyreStorm
Alt Part Number(s): NHD-250-RX
Product Type: Multiview Processor
Technical Description
Brand: WyreStorm
Model: NHD-250-RX
Series: NetworkHD 200
Resolution: 4K (3840 × 2160)
Supports: 1080p / HD streams (H.264 encoded inputs)
Inputs: 1x 8-pin RJ-45 (1000Base-T) for transmission from encoders
Outputs: 1x HDMI Type A, 1x Audio Out via 3-pin Terminal Block (3.5mm)
Control: Dual bidirectional RS-232 ports for 3rd-party integration
Audio: Supports 2ch LPCM 48KHz
Power: Supports PoE (IEEE 802.3af) or a 12V DC
Form factor: Compact rack-mountable
