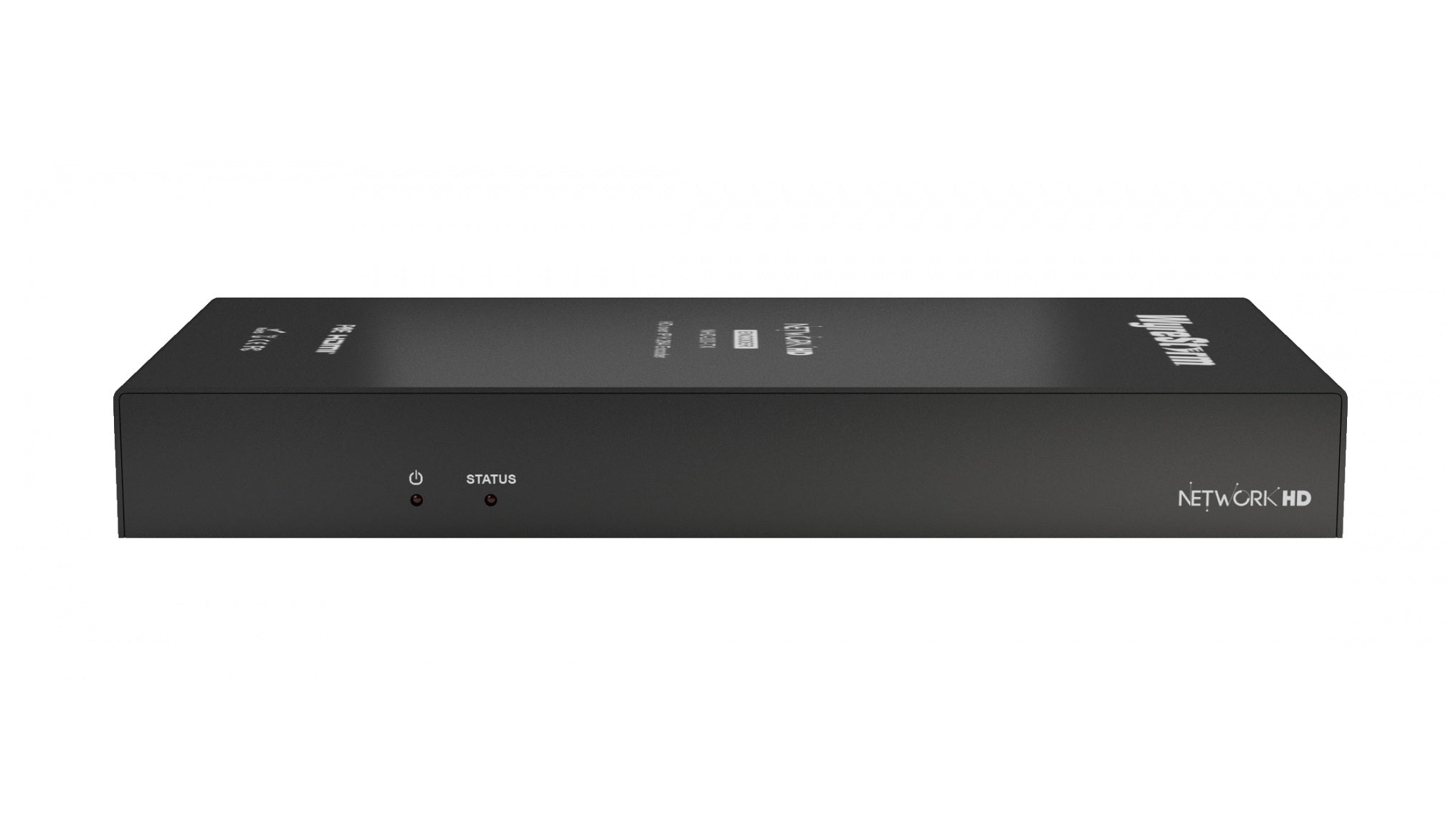

The WyreStorm NetworkHD NHD-200-TX is an H.264 AV over IP encoder that supports multi-format inputs (HDMI, VGA, Component, and DVI) for distribution across a network.



Specifications

Model Number:  NHD-200-TX

Brand:  Wyrestorm

Alt Part Number(s):  NHD-200-TX

Product Type:  Encoder



Technical Description

Brand:  Wyrestorm

Model:  NHD-200-TX

Series:  NetworkHD 200

Resolution:  1920 × 1200 @ 60Hz (Full HD/WUXGA)

Codec:  H.264 / MPEG-4 AVC

Pixel Clock:  up to 150MHz

Encoding Bitrate:  up to 30–40 Mbps

Latency:  60–90 ms (low latency mode), 250–300 ms (high quality mode)

Network:  10/100Base-T Ethernet

Video Encoding:  H.264/MPEG-4 AVC with a configurable data rate of 2–30 Mb/s

Audio Formats:  2ch PCM

Inputs: 1x 24-pin DVI-I and 1x 3.5 mm TRS Stereo Line In

Outputs:  1x RJ-45 (10/100Base-T with PoE) and 1x 3-pin Phoenix Audio Out

PoE:  IEEE 802.3af supported

Standards:  HDCP 1.4 compliant

Power Consumption:  ~6W

Power supply:  12V DC

Form factor:  Compact, rack/wall mountable
