Description

The Honeywell WW592-AG is a Wireless Dual Discrete Input Transmitter from the XYR 5000 series. It is designed to monitor two independent dry contact inputs and transmit their status wirelessly over the 902–928 MHz ISM band.

Technical Specifications

Information About WW592-AG

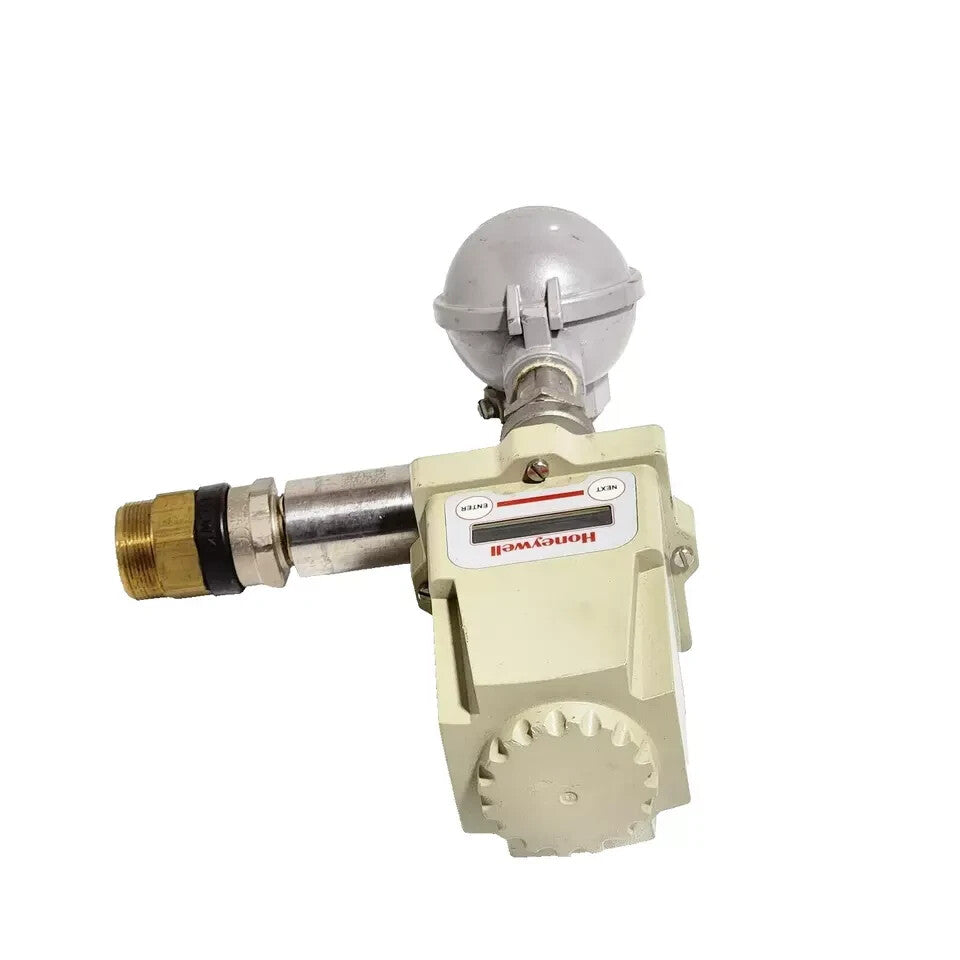

The Honeywell XYR 5000 WW592-AG is a wireless dual discrete input transmitter designed to monitor two independent dry contact inputs and transmit their status wirelessly over the 902–928 MHz ISM band. This device is ideal for applications in hazardous or hard-to-reach areas where traditional wiring is impractical. It features a rugged, weatherproof enclosure, long battery life, and supports secure, digital RF communication protocols, ensuring reliable performance in industrial environments.

Key Features:

• Model: WW592-AG
• Frequency Band: 902–928 MHz ISM
• Inputs: Two dry contact (discrete) inputs
• Communication Range: Up to 600 meters (2000 feet) line of sight; 150–300 meters (500–1000 feet) with obstructions
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Enclosure: Aluminum junction box with GE Lexan® cover; NEMA 4 rated
• Power Supply: 3.6V lithium battery
• Weight: Approximately 3.3 lbs (1.5 kg)
• Certifications: FM rated intrinsically safe for Class I/II/III, Division 1, Groups A, B, C, D, E, F, G; Class I/II/III, Division 2, Groups A, B, C, D, F, G


The WW592-AG transmitter is part of Honeywell's XYR 5000 series, offering a reliable solution for wireless monitoring of discrete inputs in challenging industrial environments. Its robust design and secure communication capabilities make it suitable for applications such as remote equipment monitoring, safety interlocks, and status indication in hazardous areas.
