Description

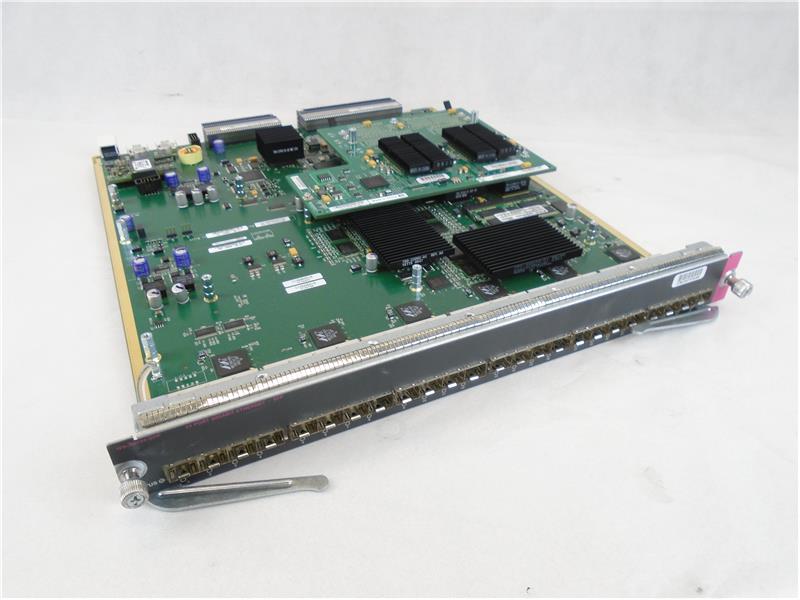

The Cisco WS-X6724-SFP is a high-density 24-port Gigabit Ethernet module designed for deployment in Cisco 7600 Series routers and Catalyst 6500 Series switches. Supporting a variety of SFP transceivers, this module delivers reliable fiber connectivity and scalable performance in campus, enterprise, and service provider networks.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
|
Category
|
|
|
Part Number
|
WS-X6724-SFP
|
| Subcatecory |
|
| Port Density |
24 x Gigabit Ethernet |
| Compatibility |
Cisco 7600 / Catalyst 6500 |
| Interfaces Supported |
1000BASE-SX, LX/LH, ZX, T, CWDM |
| Connector Type |
LC |
| Max Frame Size |
288 (6513), 192 (6509) |
| SFP Transceiver Support |
Yes (1000BASE-LX/LH) |
| Wavelength |
1300 nm |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Dimensions (H x W x D) |
1.2 x 14.4 x 16 in. |
Information About WS-X6724-SFP
The WS-X6724-SFP is compatible with both Cisco 7600 and Catalyst 6500 chassis and provides 24 Gigabit Ethernet ports using LC fiber connectors. It supports multiple transceiver types, including 1000BASE-SX, LX/LH, ZX, T, and CWDM, making it adaptable to a range of fiber networking environments. With support for a maximum frame size of up to 9216 bytes, the module is well-suited for applications requiring jumbo frame support.
Key Features:
-
24 x Gigabit Ethernet SFP Ports: Provides high-density fiber connectivity through a wide range of supported transceivers.
-
Chassis Compatibility: Fully compatible with Cisco 7600 Series routers and Catalyst 6500 Series switches.
-
Flexible Transceiver Support: Accepts 1000BASE-SX, LX/LH, ZX, T, and CWDM optics with LC connectors for deployment flexibility.
-
Jumbo Frame Support: Handles frames up to 9216 bytes, enabling efficient large-packet transfers.
-
Advanced Queuing: Includes Tx 1p3q8T and Rx 1q8T/2q8T queuing for precise traffic prioritization and congestion management.
The WS-X6724-SFP is ideal for enterprise core and data center networks requiring scalable fiber port density and high throughput performance.
