Description

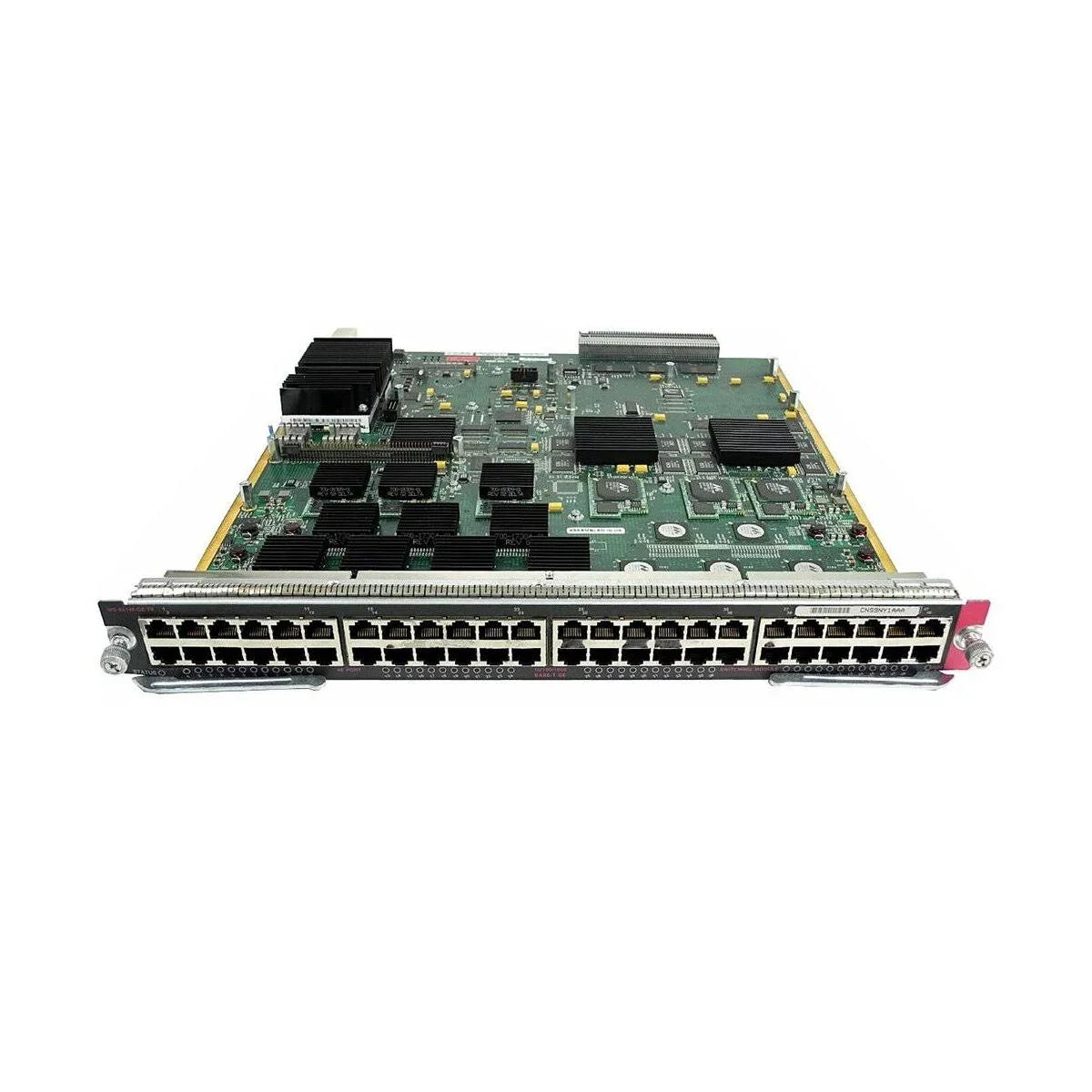

The Cisco WS-X6148-GE-TX is a high-density 48-port Gigabit Ethernet network module designed for Cisco Catalyst 6500 and 7600 Series chassis switches. Offering wire-speed 10/100/1000 Mbps connectivity and jumbo frame support, it delivers reliable, scalable access for high-throughput network environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-X6148-GE-TX |
| Subcatecory |
Switch Modules / Line Cards
|
| Compatibility |
Cisco Catalyst 6500, Cisco 7600 Series
|
| Number of Ports |
48 x 10/100/1000 Mbps Ethernet |
| Connector Type |
RJ-45 |
| Throughput per Port |
1 Gbps |
| Forwarding Bandwidth |
32 Gbps |
| Network Standards |
IEEE 802.3, 802.3u, 802.3ab |
| Operating Temperature |
0° to 40°C (32° to 104°F) |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| MTBF |
915,644 hours |
| Dimensions (H x W x D) |
1.2 x 14.4 x 16.0 in (3.0 x 36.6 x 40.6 cm) |
| Weight |
7.6 lb (3.4 kg) |
Information About WS-X6148-GE-TX
The WS-X6148-GE-TX is part of Cisco’s modular switching ecosystem for large-scale enterprise and service provider networks. It supports 48 RJ-45 Gigabit Ethernet ports with autosensing 10/100/1000Base-T capability, ensuring seamless connectivity for a wide range of devices. The module complies with IEEE 802.3 standards and supports jumbo frames for optimized performance in high-volume data environments such as video streaming, large file transfers, or virtualized networks.
Key Features:
- Port Count: 48 autosensing 10/100/1000 Ethernet ports via RJ-45 connectors.
- Compatibility: Designed for Cisco Catalyst 6500 and 7600 Series modular switches.
- Throughput: Wire-speed throughput up to 1 Gbps per port for high-performance access.
- Forwarding Bandwidth: Supports a total forwarding bandwidth of 32 Gbps across all ports.
- Jumbo Frames: Enables jumbo frame support for increased data efficiency.
- Standards Compliance: Supports IEEE 802.3, 802.3u, and 802.3ab networking standards.
- Environmental Tolerance: Operates from 0° to 40°C, stores from -40° to 70°C, and tolerates up to 95% humidity.
- Power Consumption: Up to 110 Watts maximum under full load.
- MTBF: Mean Time Between Failures of approximately 915,644 hours ensures long-term stability.
The WS-X6148-GE-TX delivers dense, scalable Gigabit access for high-demand enterprise switching cores.
