Description

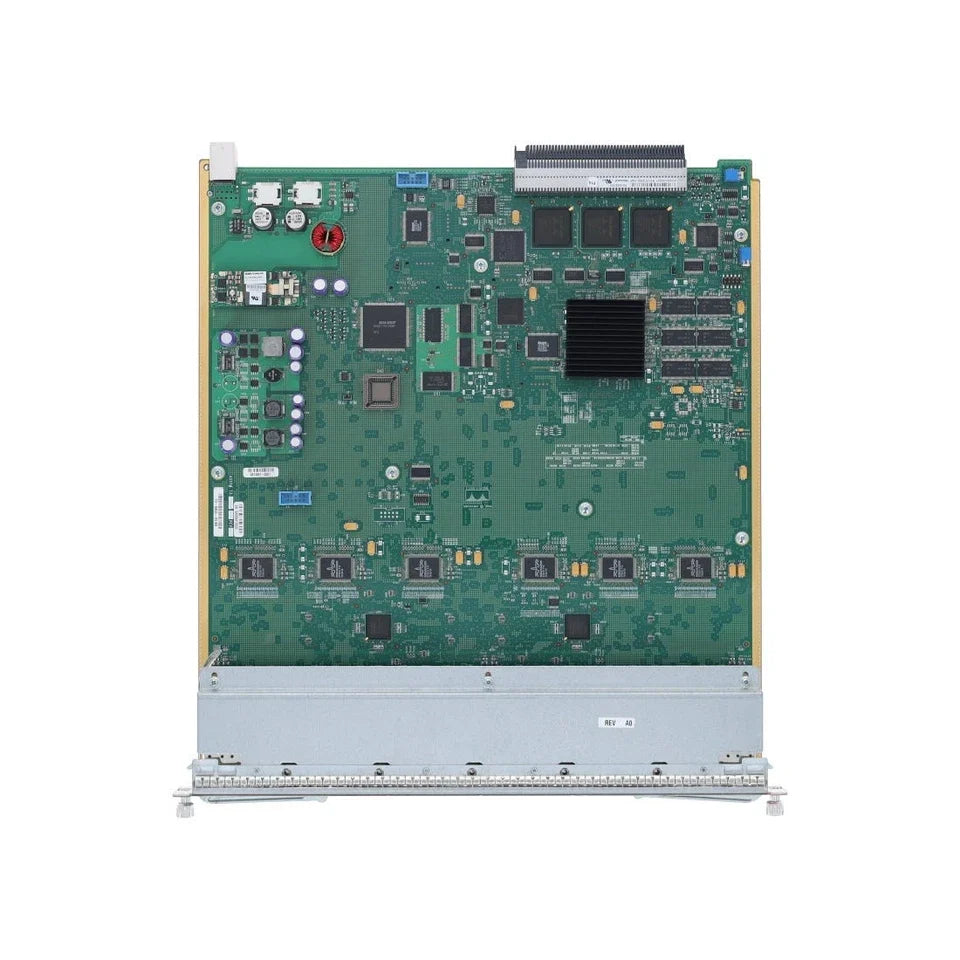

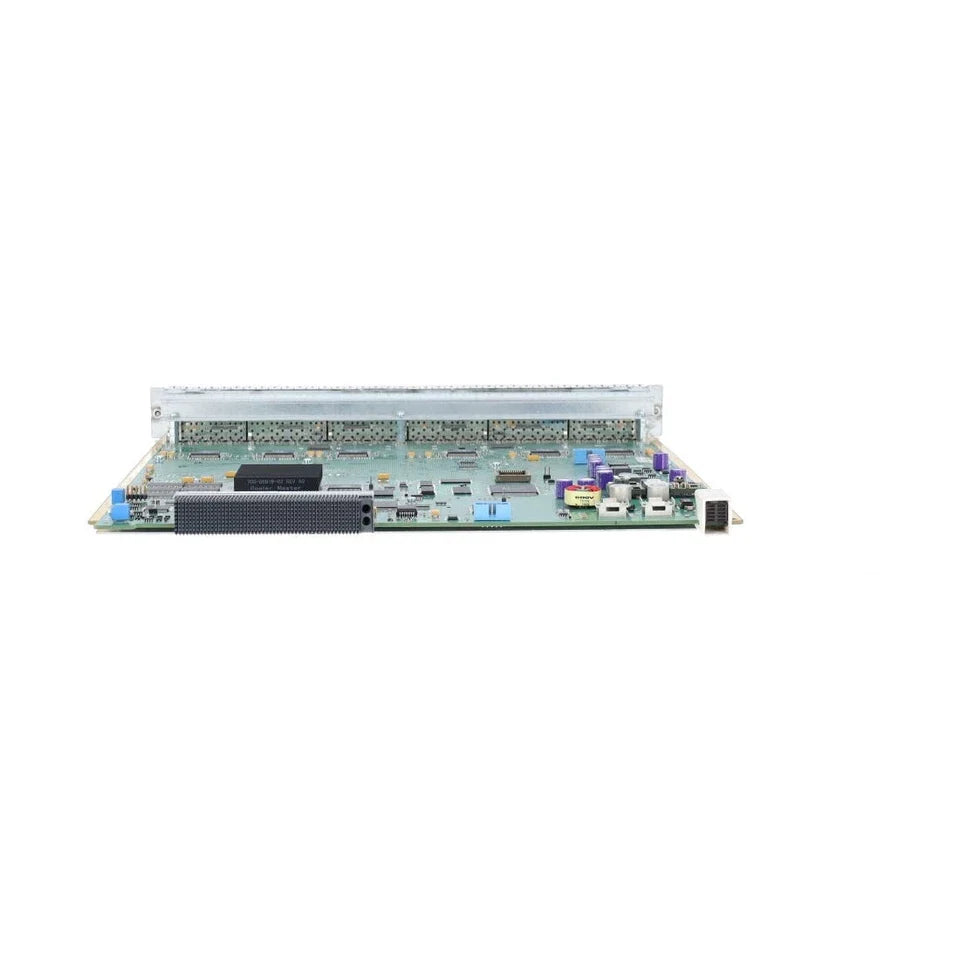

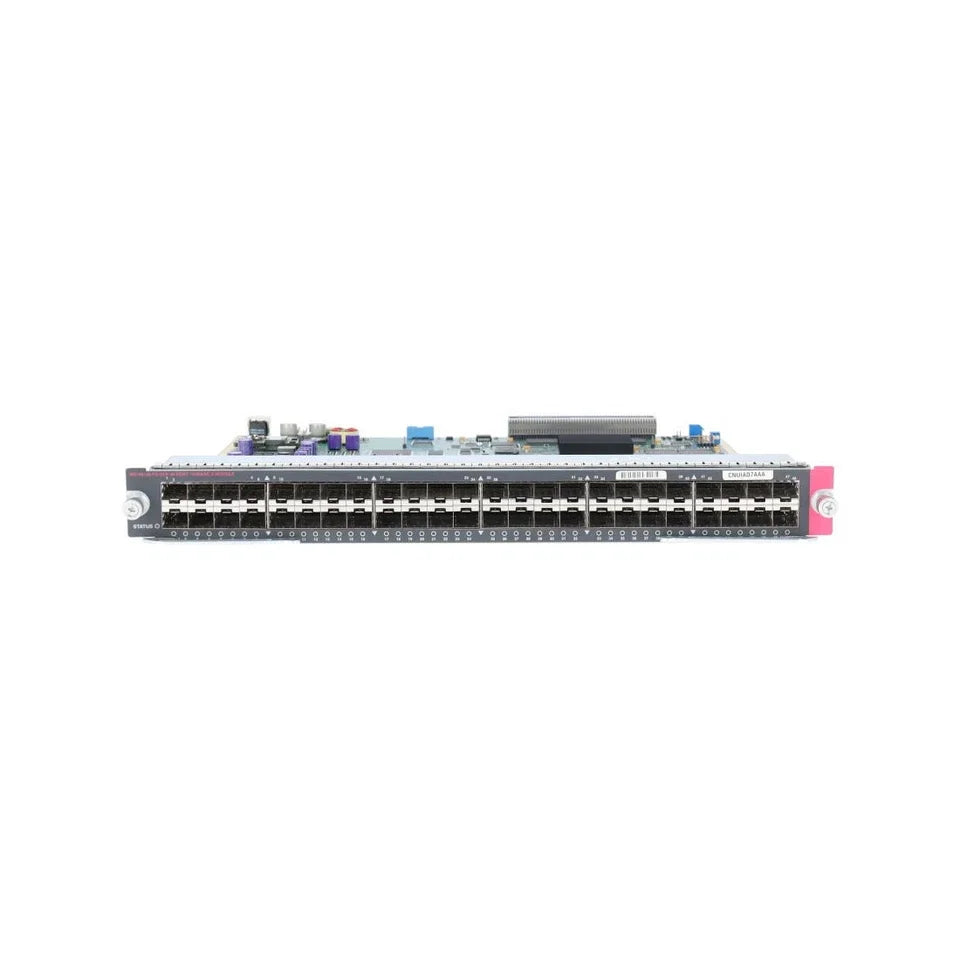

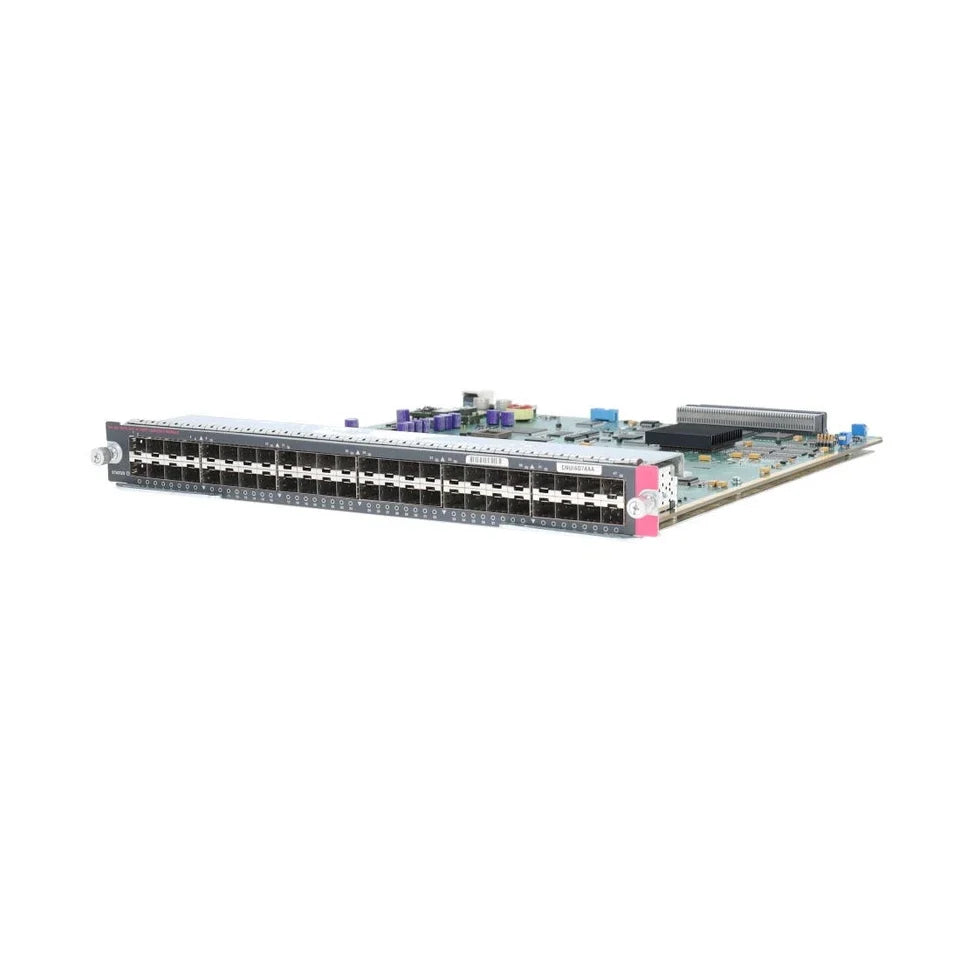

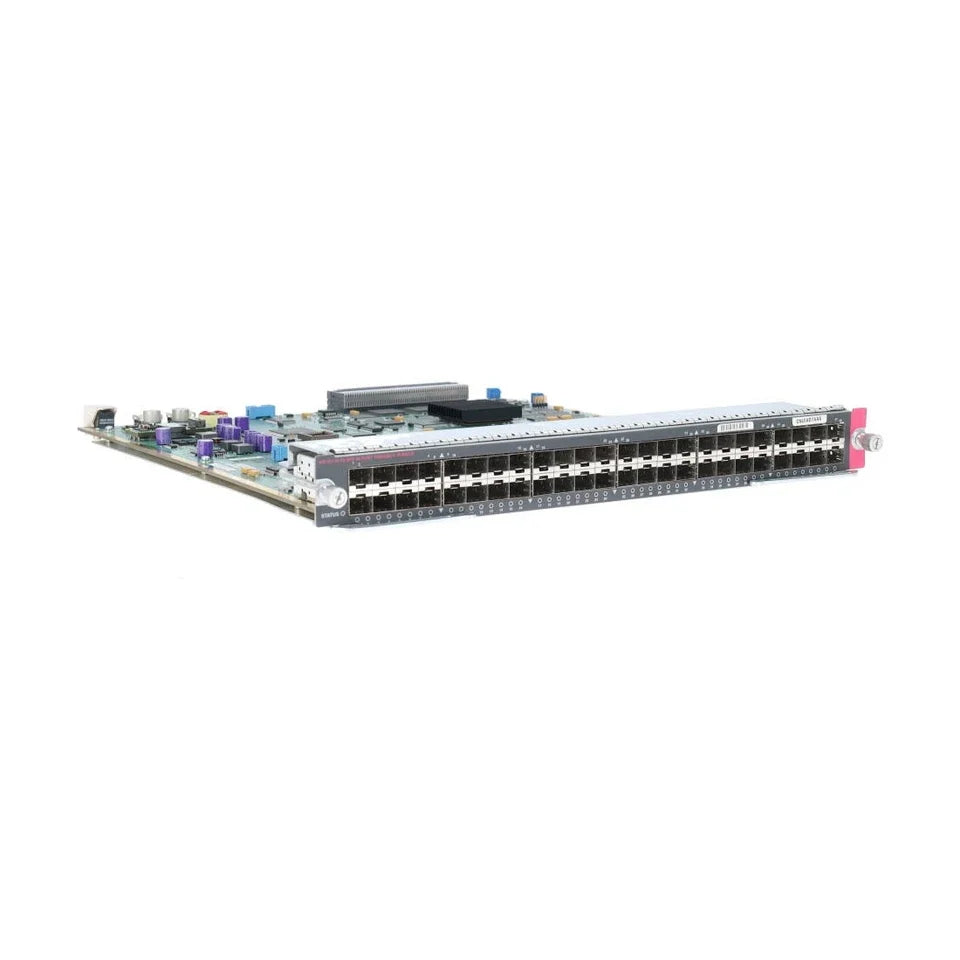

The Cisco WS-X6148-FE-SFP is a 48-port Fast Ethernet module designed for the Catalyst 6500 Series switches. It provides high-density fiber connectivity with 100Base-X SFP-based ports, delivering flexible and scalable networking for enterprise environments.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-X6148-FE-SFP
|
| Subcatecory |
|
| Product Line |
Catalyst 6500 Series |
| Port Count |
48 |
| Port Speed |
100Base-X |
| Transceiver Type |
SFP (Small Form-Factor Pluggable) |
| Interface Standard |
IEEE 802.3u |
| Backplane Speed |
32 Gbps |
| Forwarding Rate |
64 Mpps
|
| Compatibility |
Cisco Catalyst 6500 Series |
| Power Consumption |
95W |
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Dimensions (H x W x D) |
1.2 x 14.4 x 16 in |
| Weight |
6.6 lb (3 kg) |
Information About WS-X6148-FE-SFP
The WS-X6148-FE-SFP is a plug-in Ethernet line card designed for the Cisco Catalyst 6500 Series. Featuring 48 Small Form-Factor Pluggable (SFP) ports supporting 100Base-X fiber interfaces, it provides flexible deployment options using LC connectors. Each port allows hot-swappable transceivers to be installed, making it suitable for various fiber network topologies, including multimode and single-mode fiber. Engineered for environments requiring scalability, performance, and reliability, the WS-X6148-FE-SFP delivers a switching capacity of 32 Gbps on the backplane with a forwarding rate of 64 million packets per second (Mpps).
Key Features:
-
Port Density: 48 x 100Base-X ports via SFPs, ideal for high-density fiber deployments.
-
Flexibility: Supports a wide range of Cisco SFP transceivers with LC connectors, including MMF and SMF options.
-
High Performance: 32 Gbps backplane bandwidth with up to 64 Mpps forwarding rate ensures fast data transmission.
-
Standards Compliance: Fully compliant with IEEE 802.3u standards for Fast Ethernet over fiber.
-
Robust Design: Designed to operate in enterprise-grade conditions with an MTBF of over 1 million hours.
-
Environmental Resilience: Operates within a temperature range of 0 to 40°C and relative humidity of 10% to 95% (non-condensing).
-
System Compatibility: Seamless integration with Cisco Catalyst 6500 chassis and Supervisor Engines.
The WS-X6148-FE-SFP offers a reliable and scalable switching solution for fiber-based access networks and distribution layers within large-scale infrastructures.
