Description

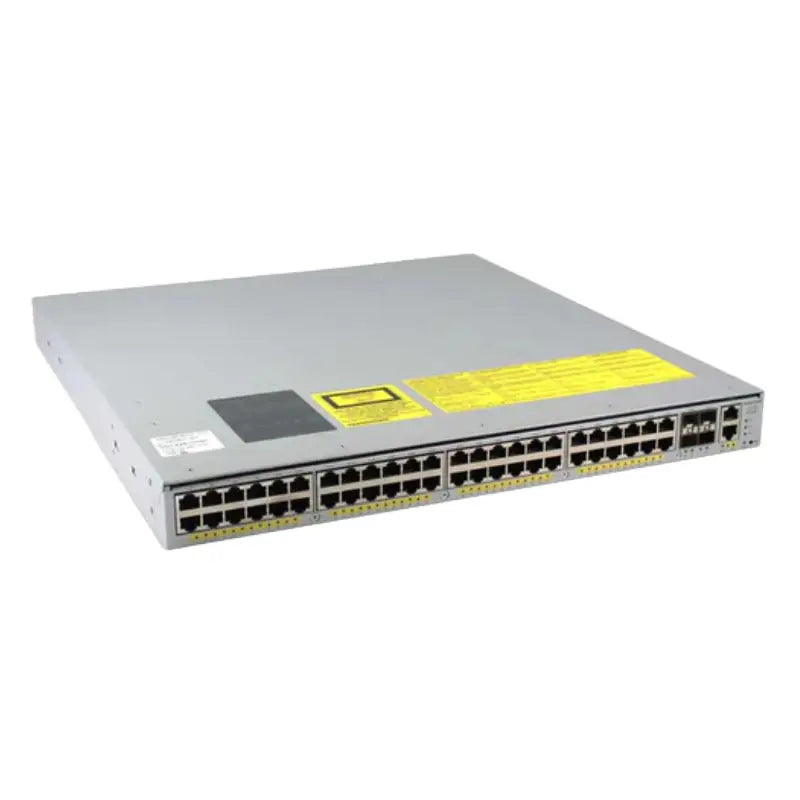

The WS-C4948E-F-E is a Cisco Catalyst 4948E Series switch featuring 48 Gigabit Ethernet ports and 4 uplink ports supporting 10 Gigabit Ethernet (SFP+).
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-C4948E-F-E |
| Subcatecory |
Data Center / Top-of-Rack Layer 3 Managed Switch
|
| Port Count |
48 |
| Port Type |
10/100/1000 Ethernet |
| Uplink Interfaces |
4 x 1 Gigabit Ethernet SFP Ports |
| Forwarding Rate |
96 Mpps |
| Switching Capacity |
136 Gbps |
| DRAM |
512 MB |
| Flash Memory |
64 MB |
| Rack Units (RU) |
1 RU |
| Power Supply |
AC/DC |
| Hot Swappable Fans |
Yes |
| Max Power Consumption |
300 W |
| Operating Temperature |
0 to 40°C (32 to 104°F) |
| Storage Temperature |
-40 to 70°C (-40 to 158°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| MTBF |
220,000 hours |
| VLAN IDs |
4000 |
| Maximum VLANs |
1005 |
| MAC Address Table Size |
55,000 |
| Dimensions (H x W x D) |
1.72 x 17.5 x 18.0 inches |
| Compliance |
RoHS-5 Compliant |
| Weight |
19 lbs |
Information About WS-C4948E-F-E
The WS-C4948E-F-E is a high-performance, fixed-configuration switch from Cisco’s Catalyst 4948E Series, engineered for low latency and high-density data center deployments.
Key Features:
-
Type: Managed Layer 3 Ethernet Switch
-
Series: Cisco Catalyst 4948E Series
-
Category: Network Switch
-
Subcategory: Data Center / Top-of-Rack Layer 3 Managed Switch
-
Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports
-
Uplink Ports: 4 x 10 Gigabit Ethernet SFP+ uplink ports
-
Switching Capacity: 176 Gbps
-
Forwarding Rate: 102 Mpps
-
Airflow: Front-to-back airflow (optimized for data center environments)
-
Layer Support: Layer 2 and Layer 3 with advanced routing protocols (OSPF, EIGRP, BGP, etc.)
-
Security Features: Access control lists (ACLs), DHCP snooping, private VLANs
-
Management: CLI, SNMP, and web-based management tools
-
Redundancy: Dual hot-swappable power supplies supported
-
Weight: Approximately 19 lbs (8.62 kg)
-
Power Supply: Redundant AC or DC power options
The WS-C4948E-F-E provides a robust, scalable solution for organizations seeking reliable, high-performance switching in demanding network environments.
