Description

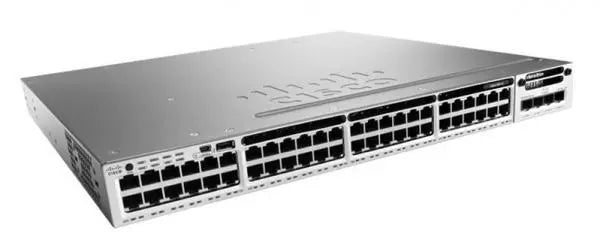

The WS-C3850-48T-L is a Cisco Catalyst 3850 Series managed Layer 3 switch featuring 48 Gigabit Ethernet ports.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
Telecommunications |
| Part Number |
WS-C3850-48T-L |
| Subcatecory |
|
| Switching Capacity |
176Gbps |
| Ports |
48 x 10/100/1000 |
| Maximum Stacking Number |
Up to 9 switches with same IOS feature set in same series
|
| Enclosure Type |
Rack-mountable - 1U |
| Stack Bandwidth |
480Gbps |
| Forwarding Performance |
130.95Mpps |
| Maximum VLANs IDs |
255 |
| MAC Address Table Size |
32K |
| CPU |
Multicore CPU |
| RAM |
4 G |
| Flash Memory |
2 G |
| Number Of AP Per Switch/stack |
100 |
| Number Of Wireless Clients Per Switch/stack |
2000 |
| Total Number Of WLANs Per Switch |
64 |
| Wireless Bandwidth Per Switch |
Up to 40Gbps |
| Console Ports |
USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
| Power Device |
Power supply - redundant - plug-in module |
| Power Redundancy |
Optional |
| Voltage Range (Auto) |
100V-240V |
| Power Consumption Of Standalone(in Watts) |
127.24 (Max) |
| Rack Mounting Kit |
Optional |
| MTBF In Hours |
303,660 |
| Width |
17.5 Inches (44.5 cm) |
| Depth |
17.7 Inches (44.5 Cm) |
| Height |
1.75 Inches (4.45 cm) |
| Weight |
7.7 kgs |
Information About WS-C3850-48T-L
The WS-C3850-48T-L is a high-performance, stackable managed switch from Cisco’s Catalyst 3850 Series, designed to deliver advanced network services and scalability for enterprise access layer deployments.
Key Features:
- Type: Managed Layer 3 Ethernet Switch
- Series: Cisco Catalyst 3850 Series
- Category: Network Switch
- Subcategory: Stackable Enterprise Access Layer 3 Switch
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports
- Uplink Options: Supports modular uplink network modules (sold separately) with options including Gigabit and 10 Gigabit SFP/SFP+ ports
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- Stacking: Supports Cisco StackWise-480 technology for up to 480 Gbps of stack bandwidth and up to nine switches in a stack
- Layer Support: Full Layer 2 and Layer 3 capabilities, including OSPF, EIGRP, BGP, static routing, and multicast routing
- Security Features: 802.1X, MACsec encryption, DHCP snooping, private VLANs, and advanced ACLs
- Management: Cisco IOS XE software, CLI, SNMP, and web-based management tools
- Redundancy: Dual redundant power supplies and field-replaceable fans supported
- Power Supply: Modular power supply options (default AC power supply included; additional power supplies sold separately)
- Use Case: Ideal for enterprise campus and branch access layer deployments requiring scalability, performance, and advanced security.
The WS-C3850-48T-L combines high-density Gigabit Ethernet connectivity with flexible stacking and Layer 3 routing capabilities, making it a robust solution for modern enterprise networks.
