Description

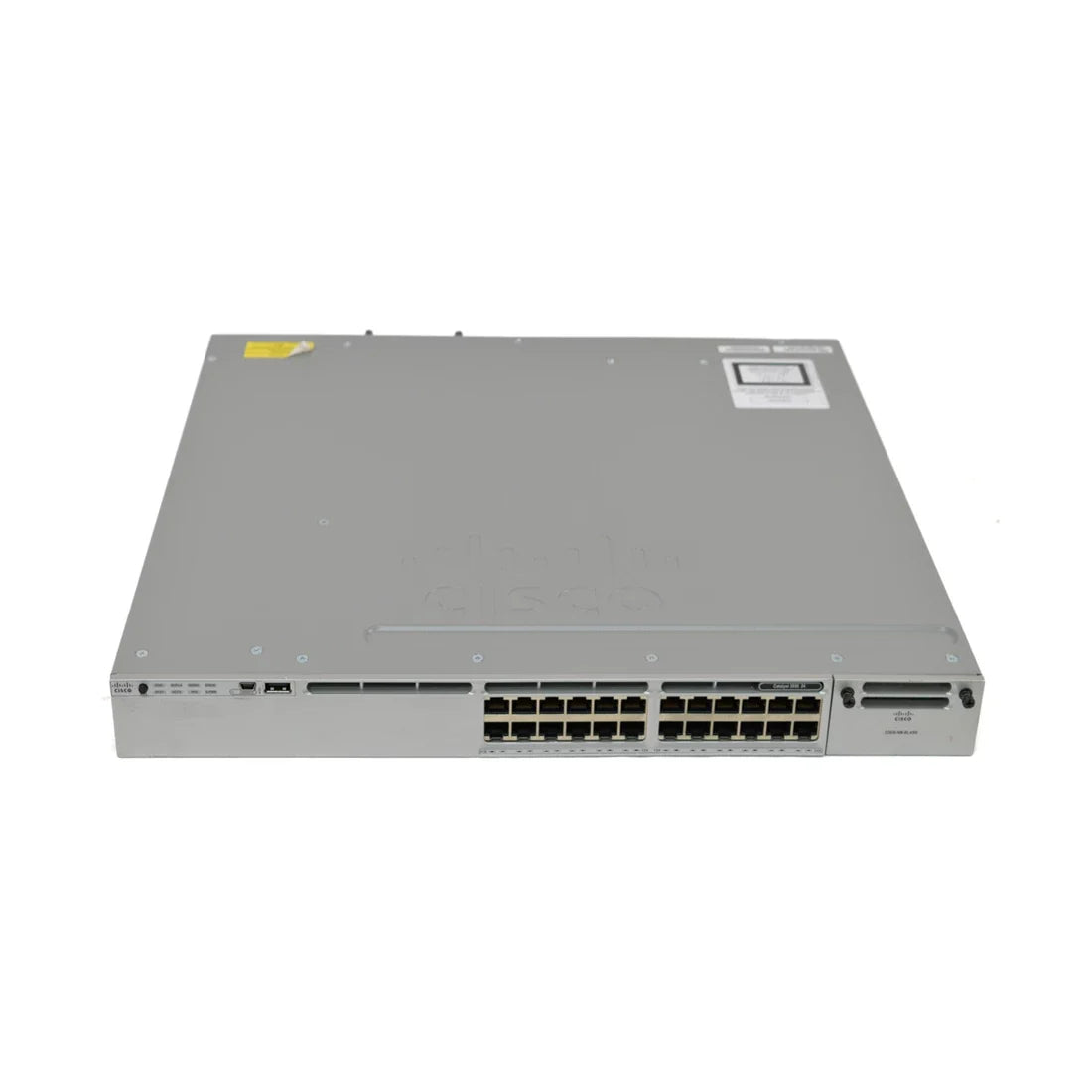

The Cisco WS-C3850-24T-L is a 24-port Gigabit Ethernet switch from the Catalyst 3850 Series, designed for enterprise-class access layer deployments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-C3850-24T-L
|
| Subcatecory |
|
| Enclosure Type |
Rack-mountable - 1U |
| Ports |
24 x 10/100/1000 |
| Network Management Interface |
Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections |
|
Switching Capacity
|
92 Gbps |
| Maximum Stacking Number |
Up to 9 switches with same IOS feature set in same series
|
| Stack Bandwidth |
480 Gbps |
| Forwarding Performance |
68.4Mpps |
| FNF Entries |
Disabled (IP base license required) |
| Maximum VLANs IDs |
255 |
| MAC Address Table Size |
32K |
| CPU |
Multicore CPU |
| RAM |
4 G |
| Flash Memory |
2 G |
| Console Ports |
USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
| Power Redundancy |
Optional |
| Voltage Range (Auto) |
100V-240V |
| Power Consumption Of Standalone(in Watts) |
84.97 (max) |
| Rack Mounting Kit |
Optional |
| MTBF in Hours |
303,230 |
| Width |
17.5 Inches (44.5 cm) |
| Depth |
17.7 Inches (44.5 Cm) |
| Height |
1.75 Inches (4.45 cm) |
| Weight |
7.2 kgs |
Information About WS-C3850-24T-L
The Cisco WS-C3850-24T-L is a stackable enterprise-class access switch from the Catalyst 3850 Series, offering high-performance Layer 2 switching for wired infrastructure. Designed with Cisco’s StackWise-480 technology, it enables scalable and resilient network deployments with enhanced power and data stacking capabilities.
Key Features:
- Product Type: Managed Layer 2 Ethernet Switch
- Ports: 24 × 10/100/1000 Mbps Ethernet ports
- Stacking Technology: StackWise-480 (up to 9 switches per stack)
- Switching Capacity: 92 Gbps
- Forwarding Rate: 68.4 Mpps (64-byte packets)
- Network Module Slot: 1 slot for optional uplink modules (e.g., 4x1G SFP, 2x10G SFP+)
- Power Supply: 350W AC (modular, supports redundant power)
- Software Image: LAN Base (Layer 2)
- Management Ports: USB mini-Type B console, RJ-45 console, USB Type-A storage
- Cooling: Redundant fan modules, field-replaceable
- Mounting System: 1RU rack-mountable
- Energy Efficiency: Supports Energy Efficient Ethernet (EEE)
The WS-C3850-24T-L delivers a highly reliable and flexible solution for Layer 2 switching needs in enterprise environments. With advanced stacking capabilities, redundant components, and energy-efficient operation, it offers long-term investment protection and simplified network management for high-demand deployments.
