Description

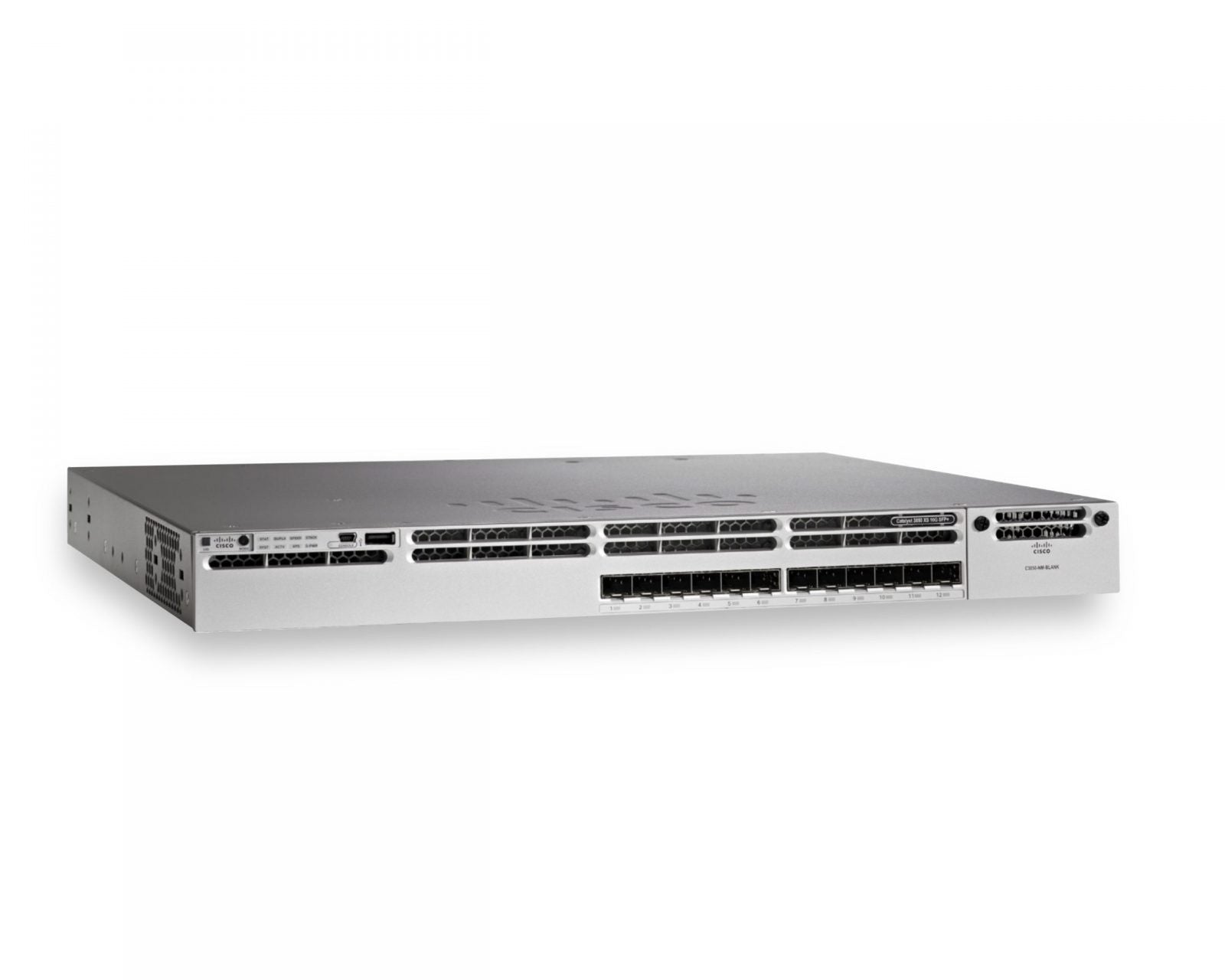

The WS-C3850-12XS-S is a 12-port 10G SFP+ switch from Cisco’s Catalyst 3850 series, offering high-performance, stackable Layer 3 switching with advanced features.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
WS-C3850-12XS-S |
| Subcategory |
Network Switches – Managed Switches
|
| Enclosure Type |
Rack-mountable - 1U |
| Ports |
12 x SFP+ ports |
| Switching Capacity |
320Gbps |
| Maximum Stacking Number |
9 |
| Stack Bandwidth |
480Gbps |
| Forwarding Performance |
227.28 Mpps |
| FNF Entries |
48,000 flows |
| Maximum VLANs IDs |
1,000
|
| MAC Address Table Size |
32K |
| CPU |
Multicore CPU |
| RAM |
4 G |
| Flash Memory |
4 G |
| Voltage Range (Auto) |
100V-240V |
| Power Consumption Of Standalone(in Watts) |
109.75 (Max) |
| MTBF in hours |
371,440 |
| Weight |
5.8 kgs |
Information About WS-C3850-12XS-S
The Cisco WS-C3850-12XS-S is a high-performance managed switch from the Catalyst 3850 Series, designed to deliver enterprise-class, high-speed switching with advanced Layer 3 capabilities. It features 12 SFP+ 10-Gigabit Ethernet ports, making it ideal for high-density aggregation in campus and data center environments.
Key Features:
-
Model: WS-C3850-12XS-S
-
Ports: 12 × 10-Gigabit Ethernet SFP+
-
Switching Capacity: 320 Gbps
-
Forwarding Rate: 190.4 Mpps
-
Software Image: IP Base (upgradeable to IP Services for advanced routing)
-
Stacking: Supports StackWise-480 technology, up to 9 switches
-
Uplink Slot: 1 × network module slot for optional uplink expansion
-
Power: Redundant power supply capable (1 installed, 1 optional)
This switch is ideal for enterprises seeking scalable, resilient, and high-throughput switching infrastructure. It supports converged access for both wired and wireless networks and offers modular uplink flexibility and high availability through advanced stacking and power redundancy features.
