Description

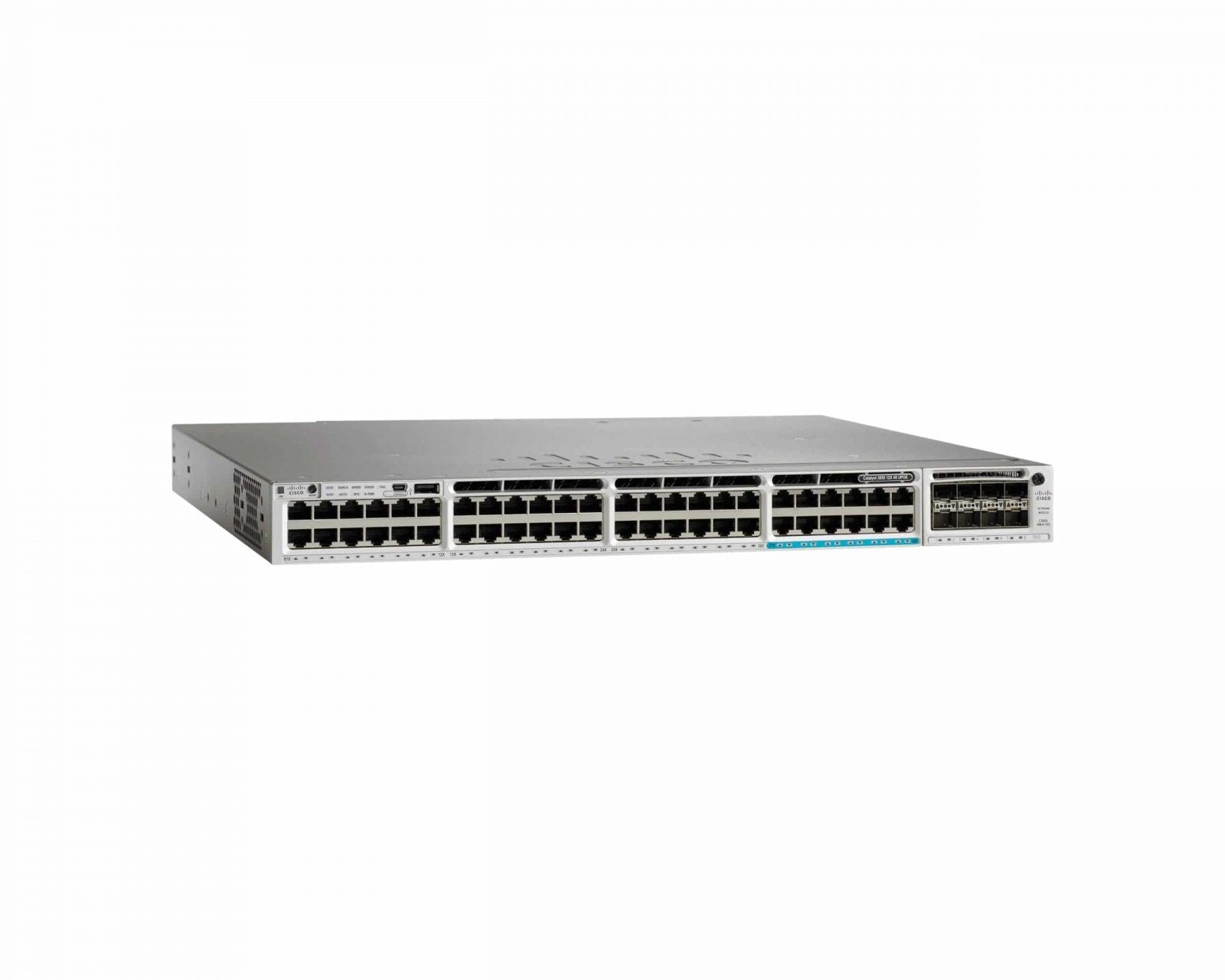

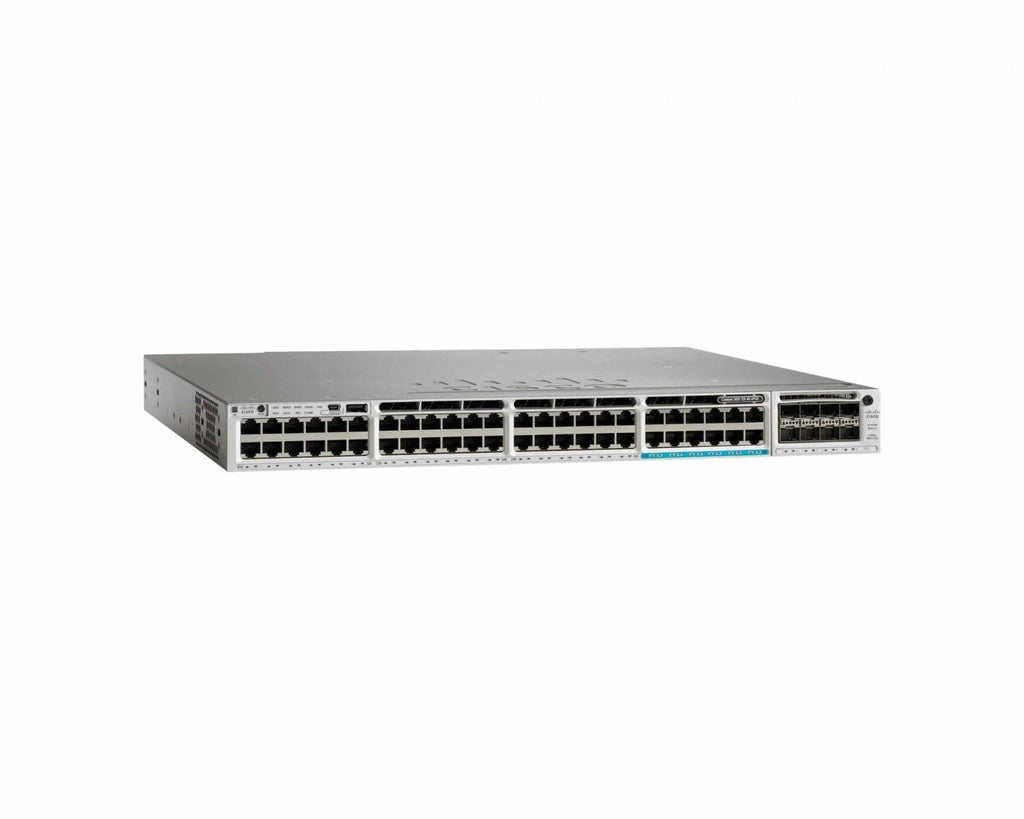

The Cisco WS-C3850-12X48U-S is a high-performance Layer 3 switch from the Catalyst 3850 Series, featuring 48 UPOE-capable Gigabit Ethernet ports and 12 10-Gigabit SFP+ uplinks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
WS-C3850-12X48U-S |
| Subcategory |
|
| Enclosure Type |
1 RU |
| Feature Set |
IP Base |
| Ports |
12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports |
| Performance |
Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps |
| RAM |
4GB |
| Flash Memory |
2GB |
| Dimension |
Width: 17.5 in
Depth: 19.2 in
Height: 1.8 in
|
| Weight |
17.64 lbs |
Information About WS-C3850-12X48U-S
The Cisco WS-C3850-12X48U-S is a high-performance, stackable Layer 3 switch from the Catalyst 3850 Series. It features 48 Universal Power over Ethernet (UPOE) Gigabit Ethernet ports and 12 multigigabit uplinks (supporting 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps speeds), providing flexible and scalable network connectivity. Designed for enterprise access layer deployments, it supports Cisco StackWise-480 and StackPower technologies for enhanced scalability and redundancy. Running on the IP Base feature set, it offers advanced routing, security, and network management capabilities.
Key Features:
-
Downlink Ports: 48 x 10/100/1000 Mbps UPOE-capable Ethernet ports
-
Uplink Ports: 12 x multigigabit SFP+ ports (100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps)
-
Stacking Bandwidth: Up to 480 Gbps with Cisco StackWise-480
-
Power Supply: 1100W AC power supply
-
Software License: IP Base feature set
-
Management Interfaces: Web UI, CLI, SNMP, and Cisco Prime Infrastructure
-
Security Features: 802.1X, port security, DHCP snooping, dynamic ARP inspection
-
QoS Features: Ingress policing, rate limiting, egress queuing/shaping
This switch is ideal for organizations seeking a robust, scalable solution for converged wired and wireless access, offering high availability and advanced features to meet growing network demands.
