Description

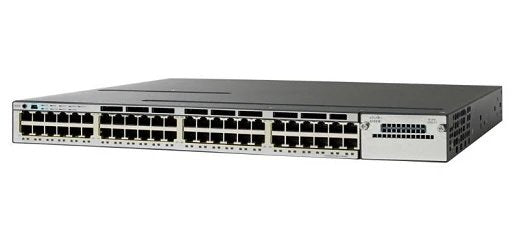

The Cisco WS-C3750X-48PF-L is a 48-port Gigabit Layer 3 managed switch with full PoE+ support and advanced stackable architecture, designed for scalable enterprise access and distribution networks. With an 800W PoE budget, it can power a wide range of IP-based devices, offering both performance and flexibility in a compact rack-mountable form factor.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
|
Category
|
Computers/Tablets & Networking
|
|
Part Number
|
WS-C3750X-48PF-L
|
| Subcatecory |
|
| Series |
Catalyst 3750-X |
| Ports |
48 x 10/100/1000 Ethernet PoE+ |
| PoE Budget |
800W |
| Software Image |
LAN Base (Layer 3) |
| Switching Capacity |
160 Gbps |
| Forwarding Rate |
65.5 Mpps |
| Stacking Support |
StackWise Plus |
| Flash Memory |
128 MB |
| DRAM |
256 MB |
| Mounting Type |
Rack-mountable |
| Power Supply |
AC 120/230 V (50/60 Hz) |
| Humidity |
10% to 95% non-condensing |
Information About WS-C3750X-48PF-L
The WS-C3750X-48PF-L is part of the Cisco Catalyst 3750-X Series, known for delivering high availability, energy efficiency, and enhanced scalability. It features 48 x 10/100/1000 Ethernet ports with IEEE 802.3at-compliant PoE+ on all ports, supporting up to 30W per port with a total PoE budget of 800W—perfect for powering phones, wireless access points, and IP cameras.
Key Features:
-
48 x PoE+ Gigabit Ports: Power all connected devices directly via Ethernet with up to 30W/port.
-
800W PoE Power Budget: Sufficient for high-density IP device deployments.
-
Layer 3 Routing (LAN Base): Enables inter-VLAN routing and static routing features.
-
160 Gbps Switching Capacity: High-speed data throughput for demanding enterprise applications.
-
Stackable Architecture (StackWise Plus): Up to 9 switches, simplifying network scaling and redundancy.
-
Redundant Power Support: StackPower and external RPS for continuous operation.
-
Robust Operating Conditions: Designed for 0–45°C, up to 95% humidity (non-condensing).
The WS-C3750X-48PF-L is ideal for enterprise access layers that demand power delivery, scalability, and simplified management.
