Description

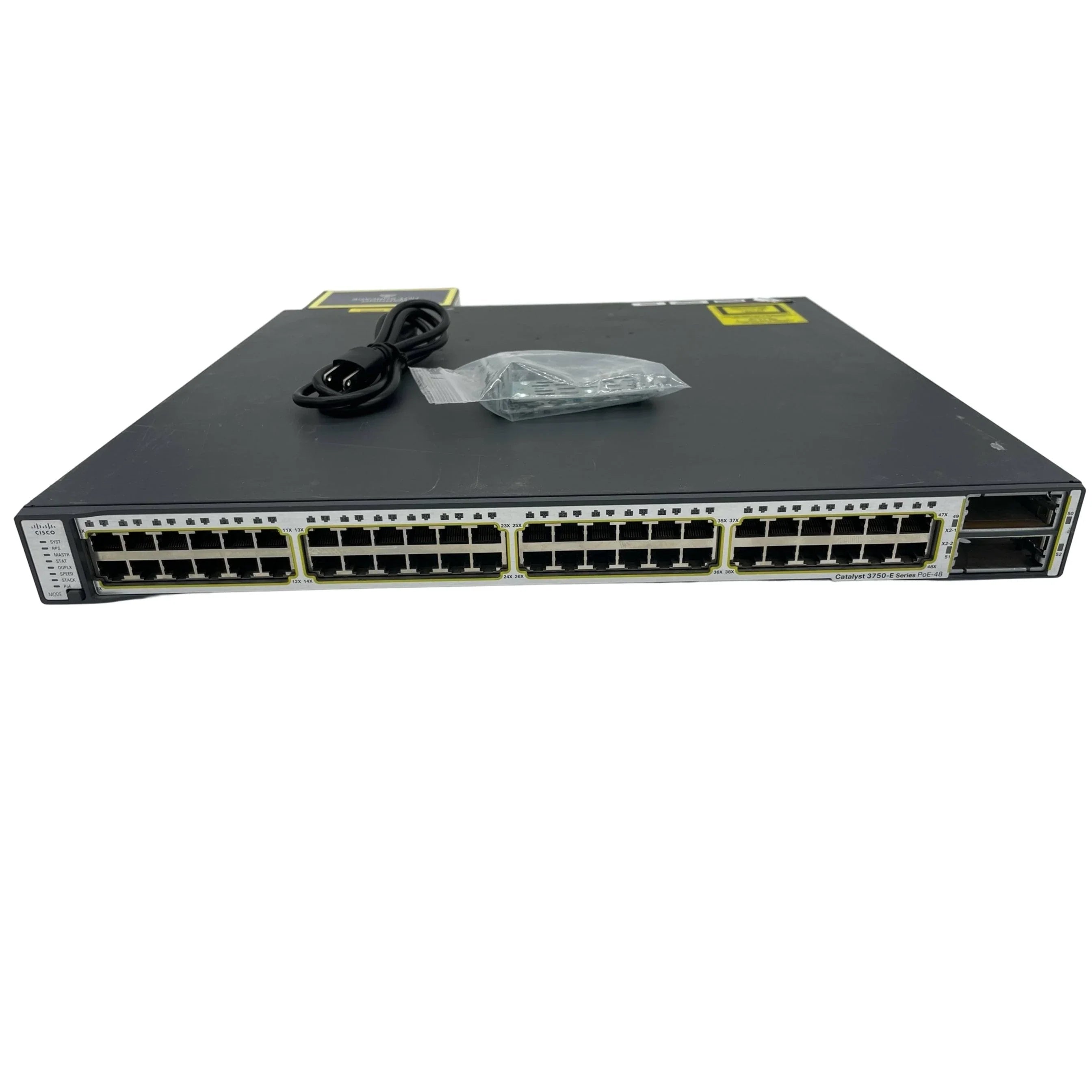

The Cisco WS-C3750E-48PD-E is a high-performance Layer 3 switch from the Catalyst 3750-E Series, engineered to deliver enterprise-class performance and scalable network access. It offers Power over Ethernet Plus (PoE+) capabilities, extensive VLAN support, and efficient stacking options for demanding network environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
WS-C3750E-48PD-E
|
| Subcategory |
Enterprise Switches |
| Product Series |
Catalyst 3750E |
| Port Count |
48 x 10/100/1000 Ethernet |
| Uplink Ports |
2 x 10GE (X2) |
| PoE Support |
Yes, PoE+ (750W Budget) |
| Layer |
Layer 3
|
| Software |
IP Services (IPS) |
| Switching Capacity |
128 Gbps |
| Forwarding Rate |
101.2 Mpps |
| VLAN IDs |
Up to 4,096 |
| Flash Memory |
64 MB |
| DRAM |
128 MB |
| Operating Temperature |
0 to 45 °C |
| Form Factor |
1U Rack-Mountable |
| Dimensions (H x W x D) |
1.69 x 16.7 x 16.4 inches |
| Weight |
8.7 kg |
Information About WS-C3750E-48PD-E
The WS-C3750E-48PD-E is a 48-port 10/100/1000 Ethernet switch with dual 10 Gigabit Ethernet uplink ports using X2 transceivers. The model includes a generous 750W PoE power budget, supporting both standard PoE and PoE+ devices across all ports. It runs Cisco’s IP Services (IPS) software, delivering advanced routing features, including support for OSPF, EIGRP, and full IPv6 routing. Built for enterprise-class networks, this switch features a switching capacity of 128 Gbps and a forwarding rate of 101.2 Mpps. With internal power supply, rack-mountable design, and support for up to 4,096 VLANs, it offers flexibility and high availability for scalable network architectures.
Key Features:
- 48 Gigabit Ethernet Ports with PoE+: All access ports support IEEE 802.3af/at for powering IP phones, cameras, and wireless access points with a combined PoE budget of 750W.
- Dual 10GE Uplink Ports (X2): Two high-speed uplinks ensure future-ready connectivity and link aggregation for uplink redundancy.
- Layer 3 Switching with IPS Software: Advanced IP Services license provides routing protocols such as OSPF, EIGRP, and full IPv6 support for dynamic and scalable network topologies.
- StackWise Plus Technology: Enables stacking of multiple Catalyst switches with 64 Gbps stack bandwidth, simplifying management and improving resilience.
- High Performance: With 128 Gbps switching capacity and 101.2 Mpps forwarding rate, it handles high-throughput demands in enterprise networks.
- VLAN Scalability: Supports up to 4,096 VLAN IDs, ideal for complex segmentation in multi-tenant or enterprise environments.
- Robust Memory Configuration: Equipped with 128 MB DRAM and 64 MB flash memory for reliable operation of advanced features.
- Rack-Mountable Design: 1U form factor fits standard racks, simplifying integration into data centers and wiring closets.
- Energy Efficient: Designed to optimize power usage with intelligent energy-saving technologies and internal power supply.
- Wide Operating Temperature: Operates reliably in environments from 0 to 45 °C, suitable for most IT deployments.
The WS-C3750E-48PD-E provides exceptional scalability, power delivery, and Layer 3 feature sets for demanding enterprise edge and distribution layer networks.
