Description

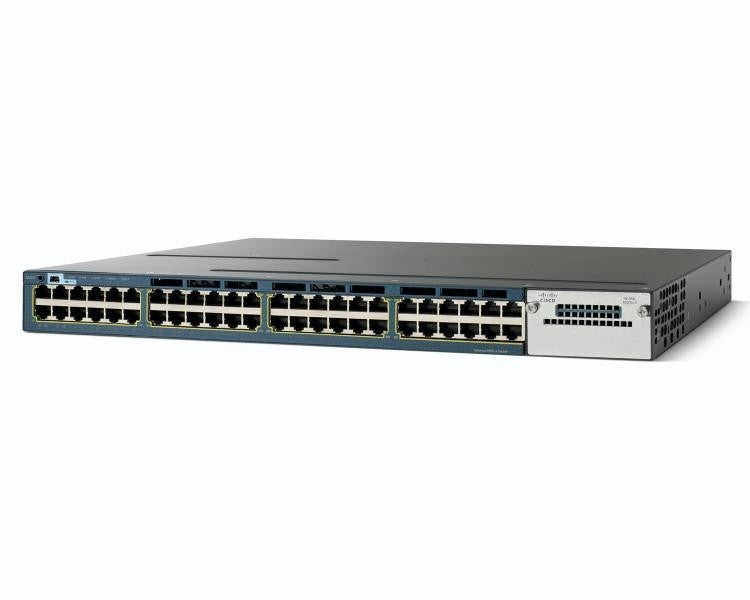

The WS-C3560X-48PF-S is a high-performance enterprise-class Layer 3 switch from Cisco, offering robust PoE+ capabilities, advanced routing functions, and scalability for growing network environments.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
|
Category
|
Computers/Tablets & Networking
|
|
Part Number
|
WS-C3560X-48PF-S
|
| Subcatecory |
Managed Layer 3 PoE+ Switches
|
| Ports |
48 x 10/100/1000 Ethernet PoE+ |
| PoE Power Budget |
800W |
| Switching Fabric |
160 Gbps |
| Forwarding Rate |
101.2 Mpps |
| DRAM |
256 MB |
| Flash Memory |
64 MB |
| VLAN Support |
1005 VLANs, 4K VLAN IDs |
| Switched Virtual Interfaces |
Up to 1K |
| Jumbo Frame Size |
9216 Bytes |
| Routed Ports per Stack |
468 |
| Dimensions (H x W x D) |
1.75 x 17.5 x 19.5 inches |
| Weight |
16.7 lb (7.6 kg) |
Information About WS-C3560X-48PF-S
The WS-C3560X-48PF-S is a member of the Cisco Catalyst 3560-X Series, designed to deliver enterprise-level switching performance with enhanced power and security features. It includes 48 10/100/1000 Ethernet ports with PoE+ support and a total PoE budget of 800W, allowing seamless connection and power delivery to a variety of end devices. Equipped with a single network module slot for uplink expansion, this switch supports advanced Layer 3 features, such as IP routing, multicast protocols, and access control. The 3560X-48PF-S also integrates well with Cisco's StackPower and StackWise technologies for power and data redundancy.
Key Features:
-
48 x PoE+ Ethernet Ports: Delivers full 10/100/1000 Mbps connectivity with IEEE 802.3at PoE+ power capability.
-
800W PoE Power Budget: Provides ample power for VoIP phones, wireless access points, and surveillance equipment.
-
160 Gbps Switching Fabric: High-bandwidth switching capacity for demanding enterprise applications.
-
Layer 3 Routing: Supports static routing, multicast routing, and IPv4/IPv6 for advanced network segmentation.
-
Advanced Security Features: Includes ACLs, Port Security, and DHCP Snooping to secure network endpoints.
-
Modular Uplink Slot: Supports various network modules for customized uplink configurations.
The WS-C3560X-48PF-S offers a feature-rich, scalable solution ideal for organizations requiring reliable PoE+ switching, Layer 3 intelligence, and future-ready architecture.
