Description
The Cisco GLC-LH-SMD is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet and Fibre Channel applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
WS-C2960X-48FPS-L |
| Subcategory |
|
| Form Factor |
Rack-mountable |
| Uplink Interfaces |
4 x 1G SFP
|
| Switching Capacity |
216 Gbps |
| RAM |
512 MB
|
| Power Supplies |
2 (1 Fixed, 1 Modular) |
| Layer |
2 |
| Management |
Managed |
| Port Count |
48 Ports |
| Downlink Interfaces |
48 x 10/100/1000 (PoE+) |
| Forwarding Performance |
107.1 Mpps |
| Flash Memory |
128 MB |
| PoE Budget |
740W |
| Stackable |
Yes |
| Operating Temperature |
0 to 45°C (32 to 113°F) |
| Weight |
2.44 kgs |

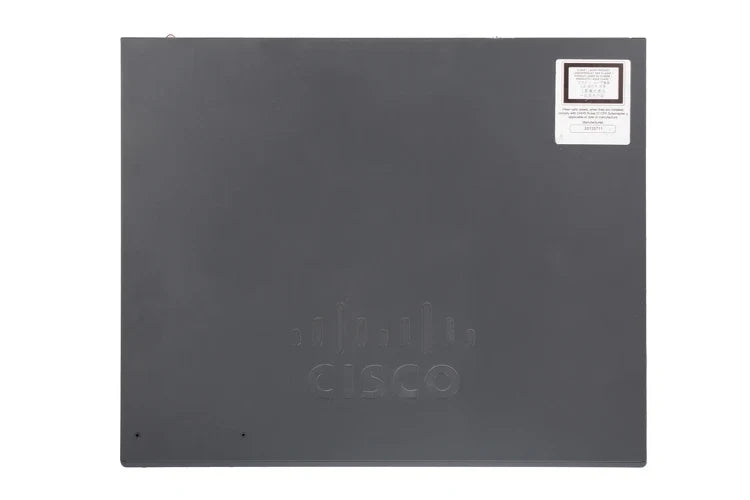

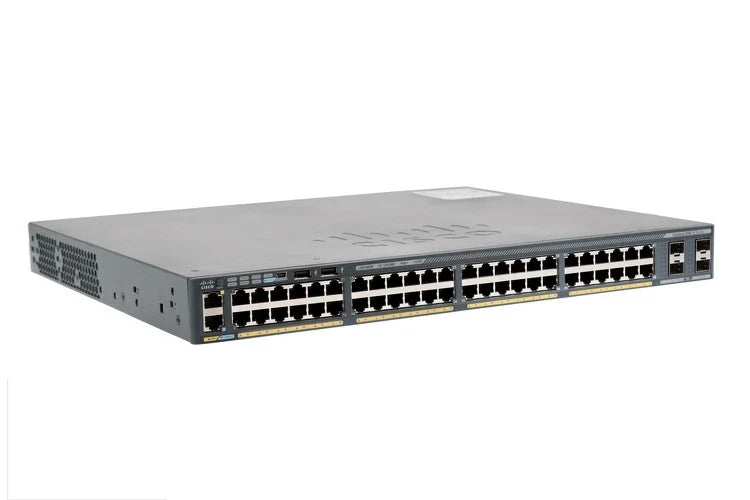

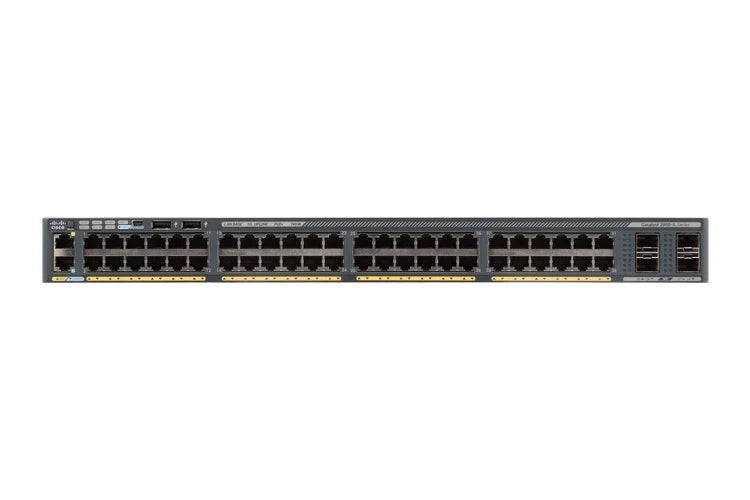

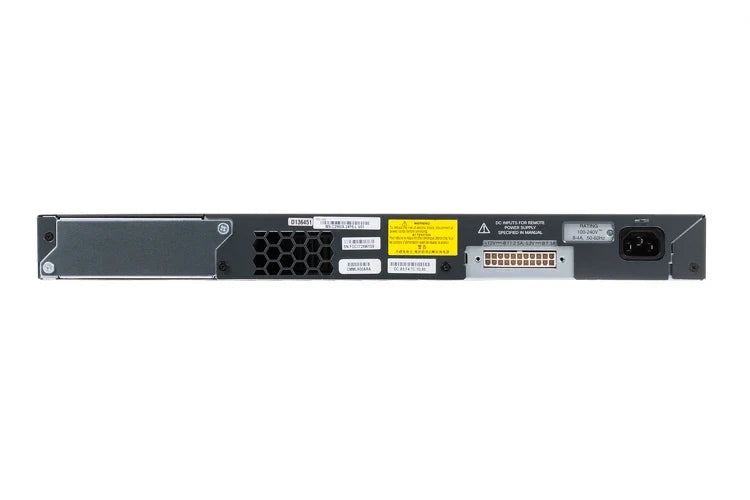

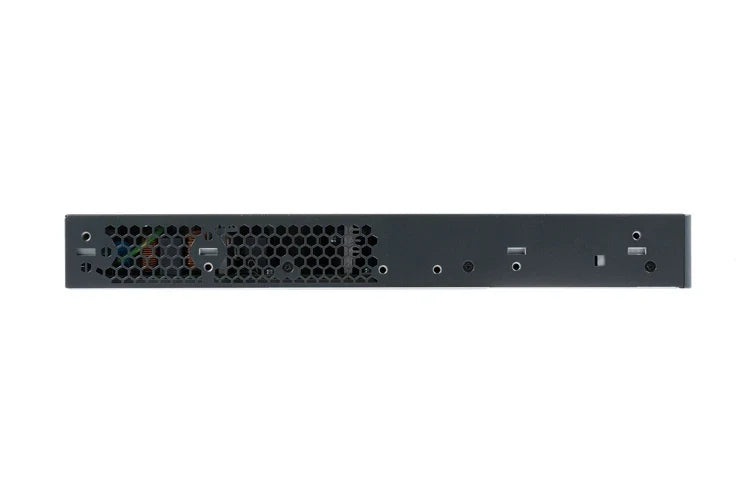

Information About WS-C2960X-48FPS-L
The Cisco Catalyst WS-C2960X-48FPS-L is a fixed-configuration, stackable Gigabit Ethernet switch designed for enterprise-class access in campus and branch networks. It offers advanced Layer 2 switching capabilities, Power over Ethernet Plus (PoE+) support, and energy-efficient features to meet the demands of modern network infrastructures.
Key Features:
-
Ports: 48 x 10/100/1000 Gigabit Ethernet ports with PoE+ support
-
Uplinks: 4 x 1G SFP uplink interfaces
-
PoE+ Power Budget: Up to 740W, supporting 24 ports at 30W or 48 ports at 15.4W
-
Switching Capacity: 216 Gbps
-
Forwarding Rate: 107.1 Mpps
-
Stacking: Supports FlexStack-Plus with up to 8 switches per stack and 80 Gbps stack bandwidth
-
Memory: 512 MB RAM, 128 MB Flash
-
Dimensions: 1.75 x 17.5 x 14.5 inches (4.45 x 44.5 x 36.8 cm)
-
Weight: Approximately 13.2 lbs (6.0 kg)
-
Operating System: Cisco IOS LAN Base
-
Perpetual PoE: Maintains PoE power during switch reloads, ensuring uninterrupted power to connected devices.
-
Energy Efficiency: Incorporates Cisco EnergyWise technology and supports IEEE 802.3az for reduced power consumption.
-
Security: Offers features like 802.1X authentication, MAC-based VLAN assignment, and Cisco TrustSec for enhanced network security.
-
Management: Provides various management options, including web UI, CLI, SNMP, and integration with Cisco DNA Center.
-
Reliability: Includes features like enhanced limited lifetime warranty and high mean time between failures (MTBF) for dependable operation.
