Description
Catalyst 2960X 24PSQ-L Switch Overview

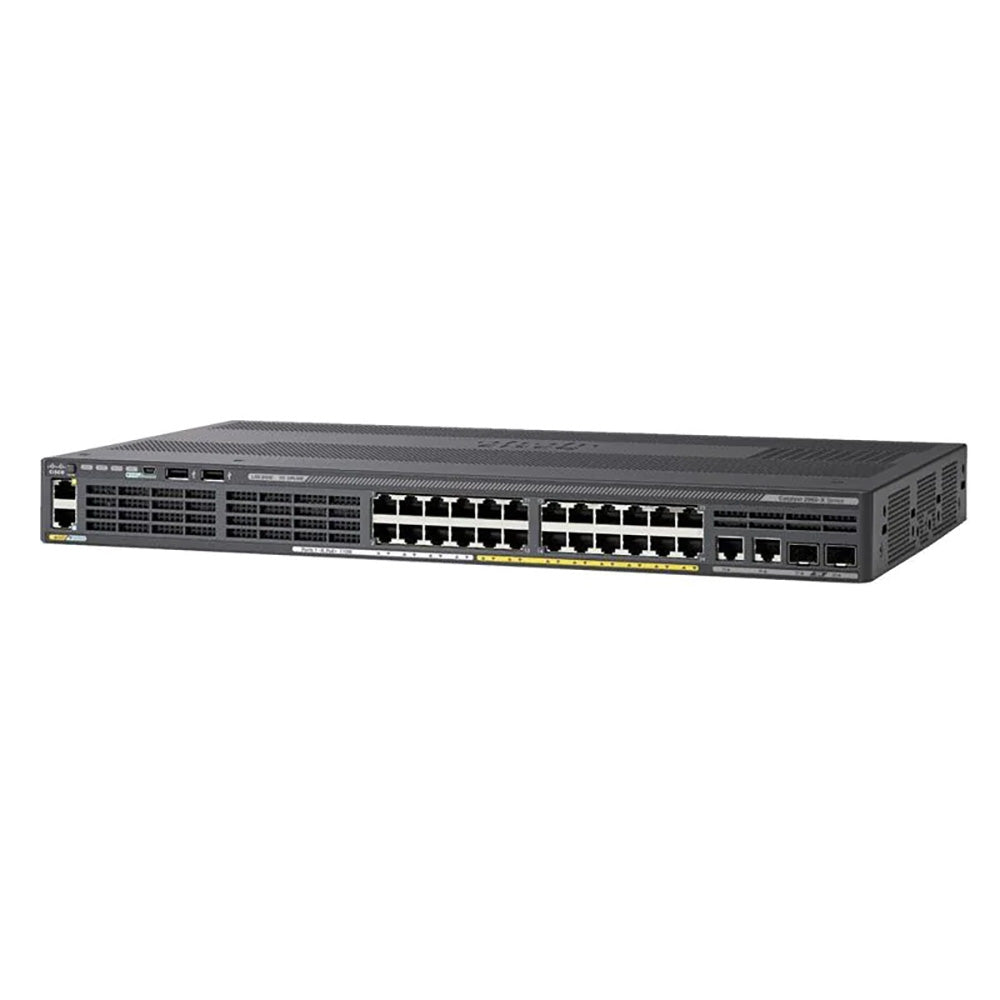

The Cisco Catalyst WS-C2960X-24PSQ-L is a LAN Base standalone Layer 2 switch that offers 24 x 10/100/1000 Ethernet Gigabit ports and 2 x 1G SFP and 2 x Copper 10/100/1000 uplink interfaces. This switch supports IEEE802.3at PoE+, providing up to 110W PoE power, which can power up to 8 ports of PoE (first eight ports only) with 12.95W per port, or 7 ports of PoE with 15.4W per port, or 3 ports of PoE with 30W per port. The WS-C2960X-24PSQ-L is rack-mountable with a 1U form factor, offering 1 Gigabyte RAM and 128 MB flash memory for reliable performance. With 216Gbps switching bandwidth and 71.4Mpps forwarding performance, this switch ensures high-speed, efficient operation. While it does not support stacking, it remains a highly reliable solution for Cisco Aggregation Switch deployments. Shop Cisco Switch models like the WS-C2960X-24PSQ-L to benefit from GigE Ports, PoE support, and the flexibility of SFP connectivity in a rack-mountable design with LAN Base features.
Recommended modules and accessories
Models |
Description |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Models |
WS-C2960X-24PSQ-L |
WS-C2960X-24PS-L |
| Ports |
24 x Ethernet 10/100/1000 Gigabit ports (8 PoE) |
24 x Ethernet 10/100/1000 Gigabit PoE ports |
| Uplinks | 2 x 1G SFP + 2 x 10/100/1000BT | 4 x 1G SFP |
| Feature Set | LAN Base | LAN Base |
| FlexStack-Plus Stacking | Not Supported | Optional |
| Available PoE Power | 110W | 370W |
Specifications
WS-C2960X-24PSQ-L Specification |
|
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 1G SFP + 2 10/100/1000BT |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 110W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | None |
| Stack Bandwidth | None |
| Forwarding Performance | 71.4Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators |
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | None |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.16KVA |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 11.03 Inches (28 cm) |
| Height | 1.73 Inches (4.45 cm) |
| Weight | 12.8 Pounds (5.8 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 462,680 |
| Compliant Standards |
● IEEE 802.1D Spanning Tree Protocol 1000BASE-T ports● IEEE 802.3 10BASE-T
|
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features |
●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
| Network security |
●SSH, SSL and SCP●RADIUS and TACACS+●SNMPv3 crypto ●802.1x●802.1x Accounting / MIB●802.1x w/ port security ●802.1x w/Voice VLAN●802.1x Guest VLAN●802.1x VLAN assignment ●802.1x MAC-Auth Bypass●BPDU/Root Guard●Port Security ●Private VALN Edge●Storm Control●Block unknown unicast and multicast ●IGMP Snooping●IGMP Filter/Throttle |
| Management and Troubleshooting |
●Auto-MDOX●TDR●UDLD●IP SLA Responder●layer 2 / IP Traceroute ●SPAN●RSPAN●Express Setup●Device Manager ●Cisco Network Assistant●Smartports + Advisor●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade●IP Address DHCP ●Autoinstall with saved configuration●Configuration Replace ●DHCP Auto Image Upgrade●DHCP Port Based Allocation●Error Disable MIB |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF(-5ºC to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF(-5ºC to 40ºC) |
| Short-term exception at sea level | 23ºF to 131ºF(-5ºC to 55ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF(-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF(-5ºC to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23º to 104ºF(-5ºC to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF(-25º to 70ºC) |
| Operating altitude | Up to 10,000 Feet(Up to 3000 Meters) |
| Storage altitude | Up to 13,000(Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
