Description

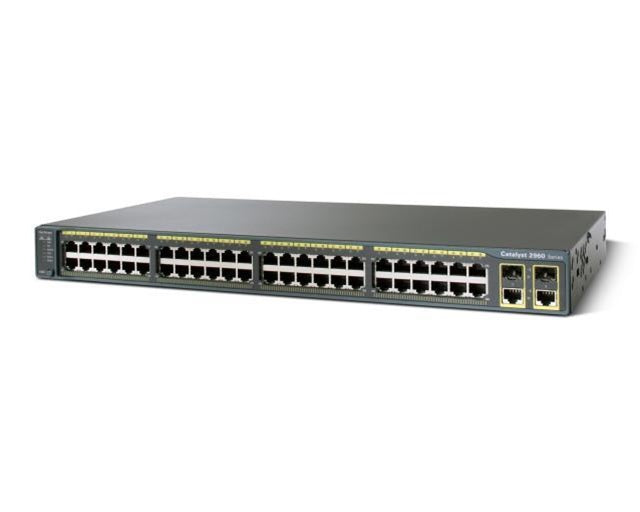

The Cisco WS-C2960-48TT-L is a fixed-configuration, Layer 2 network switch from the Cisco Catalyst 2960 Series. It offers 48 Fast Ethernet 10/100 ports and 2 10/100/1000BASE-T uplink ports, making it ideal for small to mid-sized business networks or branch office deployments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-C2960-48TT-L
|
| Subcatecory |
Ethernet Switches – Layer 2 Switches
|
| Switch Type |
Layer 2 |
Port Configuration
|
48 x 10/100 Ports |
| Uplink Ports |
2 x 1000BT |
| Software Image |
LAN Base Image |
| Management |
Managed |
| Performance |
32 Gbps (switching capacity) |
| Packet Forwarding |
6.5 million packets per second (Mpps)
|
| Maximum VLANs |
256 |
| MAC Address Table Size |
8,000 |
| Mount Type |
Rack-mountable |
| Power Supply |
AC 120/230V (50/60 Hz) |
| Flash Memory |
32 MB |
| DRAM |
64 MB |
| Enclosure Type |
Desktop, Rack-mountable |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) |
| Relative Humidity |
10% to 85% (non-condensing) |
| Dimensions |
1.73 x 17.5 x 9.3 inches |
| Weight |
8 lbs |
Information About WS-C2960-48TT-L
The Cisco WS-C2960-48TT-L is a fixed-configuration, Layer 2 Ethernet switch from the Cisco Catalyst 2960 Series, designed to deliver enterprise-class access switching with enhanced security, manageability, and performance. It features 48 Fast Ethernet (10/100 Mbps) ports and 2 Gigabit Ethernet uplink ports, making it an ideal solution for branch offices, small to medium-sized businesses, and campus LAN environments. The switch runs on the Cisco IOS LAN Base software, providing robust Layer 2 switching capabilities, including VLAN support, Quality of Service (QoS), and security features. With its compact 1U form factor and fanless design, it supports quiet operation and efficient deployment in space-constrained settings.
Key Features:
-
Port Configuration: 48 x 10/100 Fast Ethernet ports, 2 x 10/100/1000 Gigabit Ethernet uplinks
-
Software Image: Cisco IOS LAN Base
-
Switching Capacity: 32 Gbps
-
Forwarding Bandwidth: 16 Gbps
-
Form Factor: 1U rack-mountable
-
Memory: 64 MB DRAM, 32 MB Flash
-
Security Features: Port security, DHCP snooping, Dynamic ARP Inspection
-
QoS Support: Traffic prioritization for voice and video applications
-
Management Options: CLI, SNMP, web-based GUI, Smartports
-
Fanless Design: Yes (for quieter operation)
-
MTBF: Approximately 223,000 hours
-
Operating Temperature Range: 0°C to 45°C
This switch is ideal for access layer deployment in enterprise or branch networks requiring reliable and scalable Layer 2 switching with simplified management and essential security features.
