Description

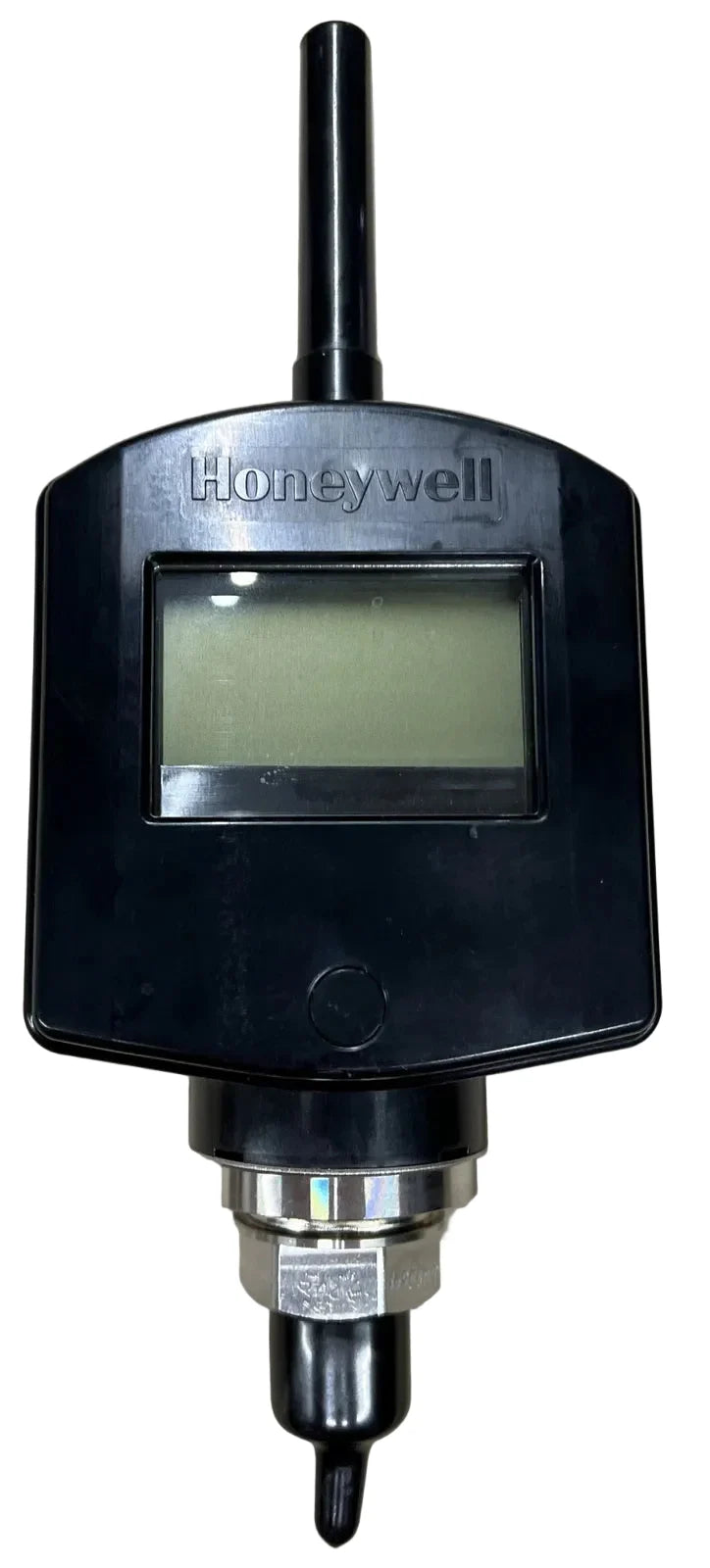

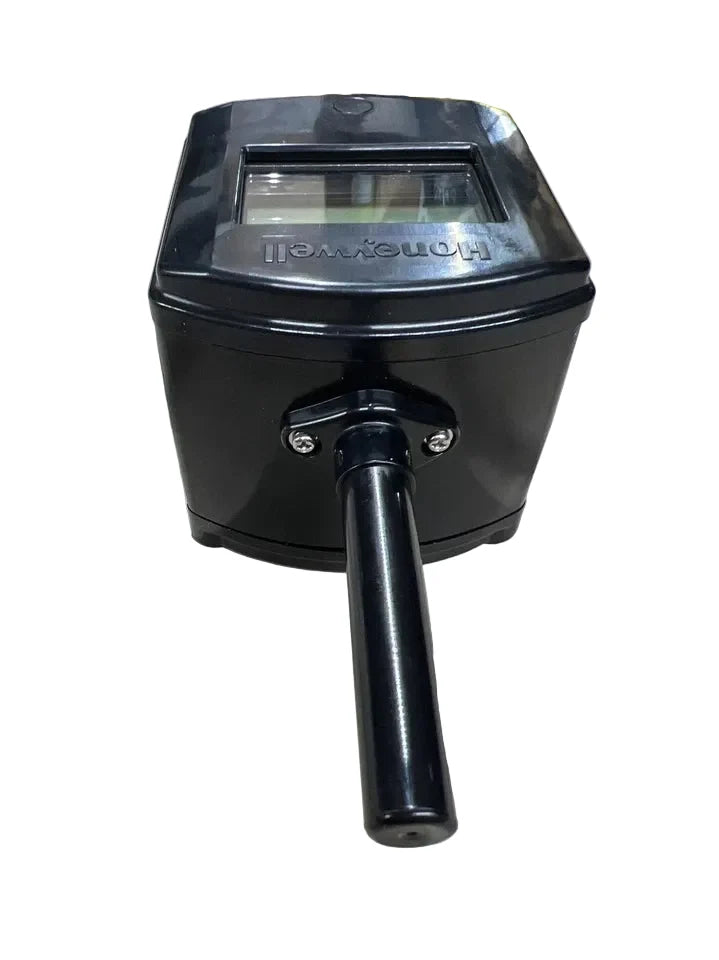

The Honeywell WPS1A12AGP1PFP1N is a wireless gauge pressure sensor designed for industrial automation applications with an operating range up to 500 psi. It features a 1/2" NPT male threaded pressure port and transmits measurement data via RF wireless communication. The unit operates from a 3.6 VDC supply and is built for remote pressure monitoring in harsh environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
WPS1A12AGP1PFP1N |
| Subcategory |
Pressure Sensor/Transducer |
| Series |
WPS |
| Product Type |
Industrial Wireless Pressure Sensor |
| Pressure Type |
Gauge |
| Operating Pressure |
0 to 500 psi |
| Maximum Pressure |
2000 psi |
| Accuracy |
±2% |
| Output Type |
Digital (RF 2.4 GHz Wireless) |
| Supply Voltage |
3.6 VDC |
| Operating Temperature |
-55°C to 85°C |
| Port Size |
1/2" NPT |
| Port Style |
Threaded |
| Mounting Type |
1/2" NPT Male |
| RoHS Compliant |
Yes |
| Weight |
3.00 lbs |
Information About WPS1A12AGP1PFP1N
The WPS1A12AGP1PFP1N is part of the Honeywell WPS Series of Limitless™ wireless pressure sensors developed for industrial process monitoring. It measures gauge pressure up to 500 psi and communicates using a 2.4 GHz RF wireless output, enabling point-to-point integration without hardwired connections. The sensor includes a 1/2" NPT male threaded port and is constructed for durability, supporting operation between -55°C and 85°C. With ±2% accuracy and a maximum pressure rating of 2000 psi, it is suited for demanding automation environments requiring reliable remote sensing.
Key Features:
-
0 to 500 psi Operating Range: Designed for medium-range gauge pressure measurement.
-
Wireless RF Output: 2.4 GHz digital transmission for remote monitoring.
-
±2% Accuracy: Provides consistent pressure measurement performance.
-
1/2" NPT Male Port: Threaded connection for secure industrial installation.
-
3.6 VDC Supply Voltage: Low-voltage operation for wireless systems.
-
Maximum Pressure Rating 2000 psi: Supports high overpressure tolerance.
-
Wide Operating Temperature Range: Functions from -55°C to 85°C.
-
Industrial-Grade Construction: Suitable for automation and outdoor applications.
The WPS1A12AGP1PFP1N delivers the reliability and precision required for wireless gauge pressure monitoring in industrial control systems.
