Description

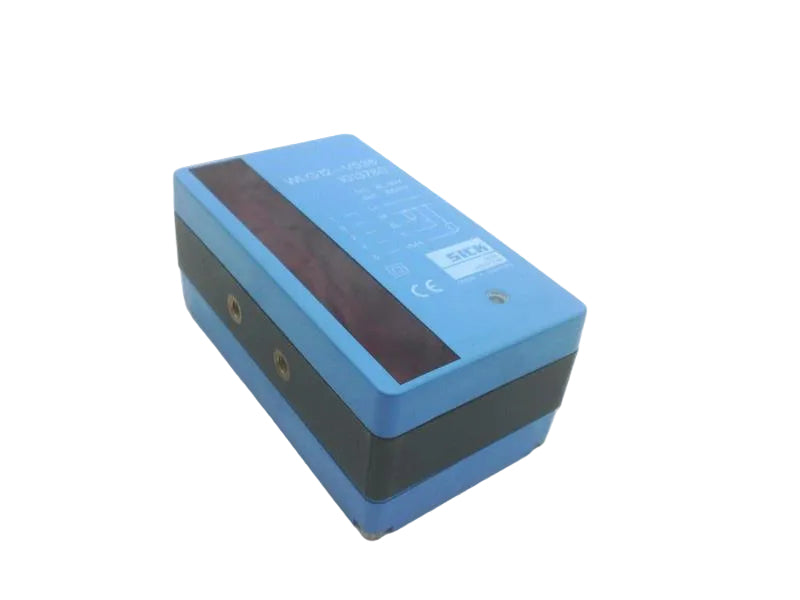

The SICK WLG12-V538 is a reflex light grid designed for multi-point object detection in industrial automation applications. This device uses visible red light and provides eight PNP switching outputs to detect object presence across a defined sensing field. It is engineered for reliable operation in inspection, counting, and positioning tasks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Industrial Sensors |
| Part Number |
WLG12-V538 |
| Subcategory |
Light Grids |
| Sensor Type |
Reflex Light Grid |
| Number of Outputs |
8 |
| Output Type |
PNP |
| Light Source |
Visible Red Light |
| Sensing Range |
0 to 1.5 m |
| Supply Voltage |
18–30 VDC |
| Output Current |
100 mA per output |
| Operating Principle |
Optical, Reflex Light Grid |
| Application |
Object Detection / Counting |
| Installation Environment |
Industrial |
| Operating Environment |
Factory Automation |
| Weight |
1.2 lbs (approx.) |
Information About WLG12-V538
The WLG12-V538 is part of SICK’s WLG light grid product family, developed for applications requiring simultaneous detection across multiple light beams. It operates on a reflex light grid principle, allowing detection without the need for complex multi-sensor arrangements. The unit supports eight independent PNP outputs, enabling direct integration into PLC and control systems. Designed for industrial environments, it operates on a wide DC voltage range and delivers stable performance within its specified sensing distance.
Key Features:
- Reflex Light Grid Technology: Enables multi-beam object detection using a compact sensing device.
- Eight PNP Outputs: Provides multiple independent switching signals for advanced detection logic.
- Visible Red Light Source: Allows easy alignment and stable optical performance.
- Defined Sensing Range: Supports detection distances from 0 to 1.5 meters.
- Industrial Output Rating: Each output supports up to 100 mA load current.
- Wide DC Supply Range: Operates reliably from 18 to 30 VDC.
- Compact Industrial Design: Suitable for inspection, counting, and positioning applications.
The WLG12-V538 delivers the reliability and precision required for multi-point optical detection in industrial automation systems.
