Description

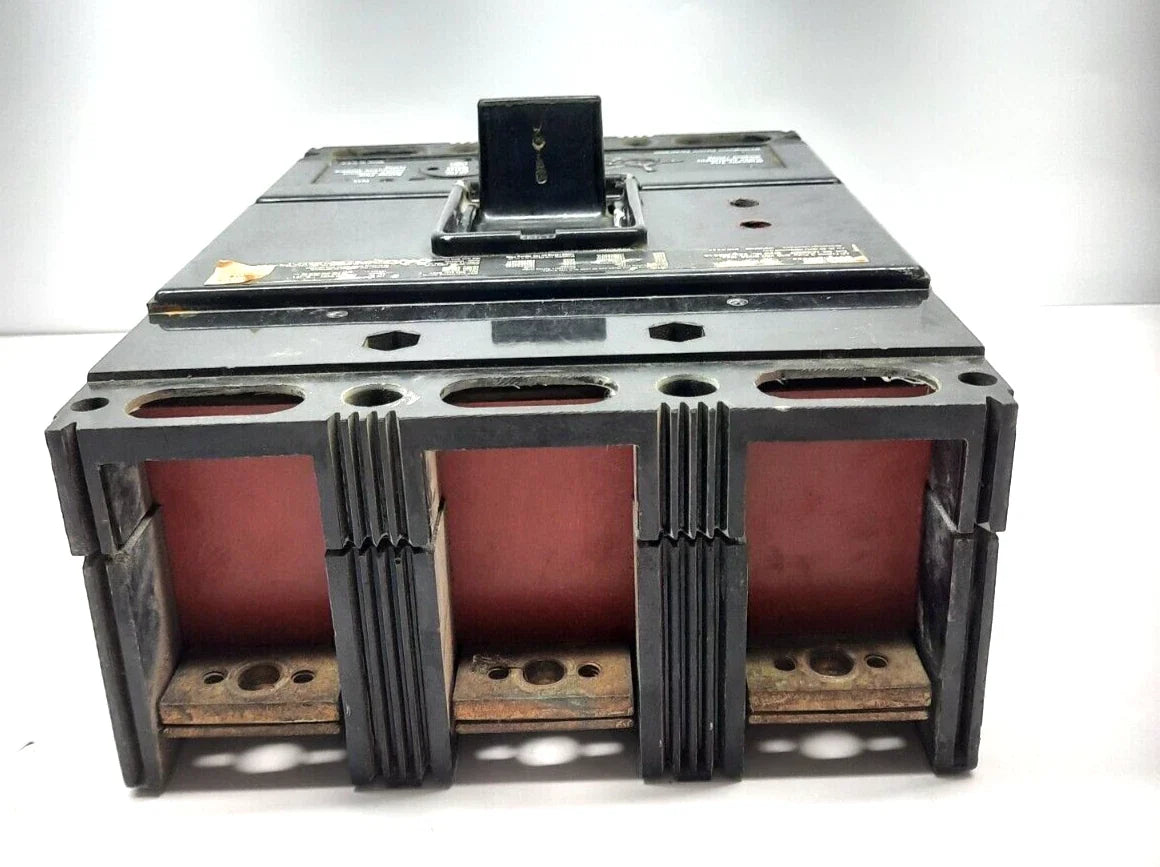

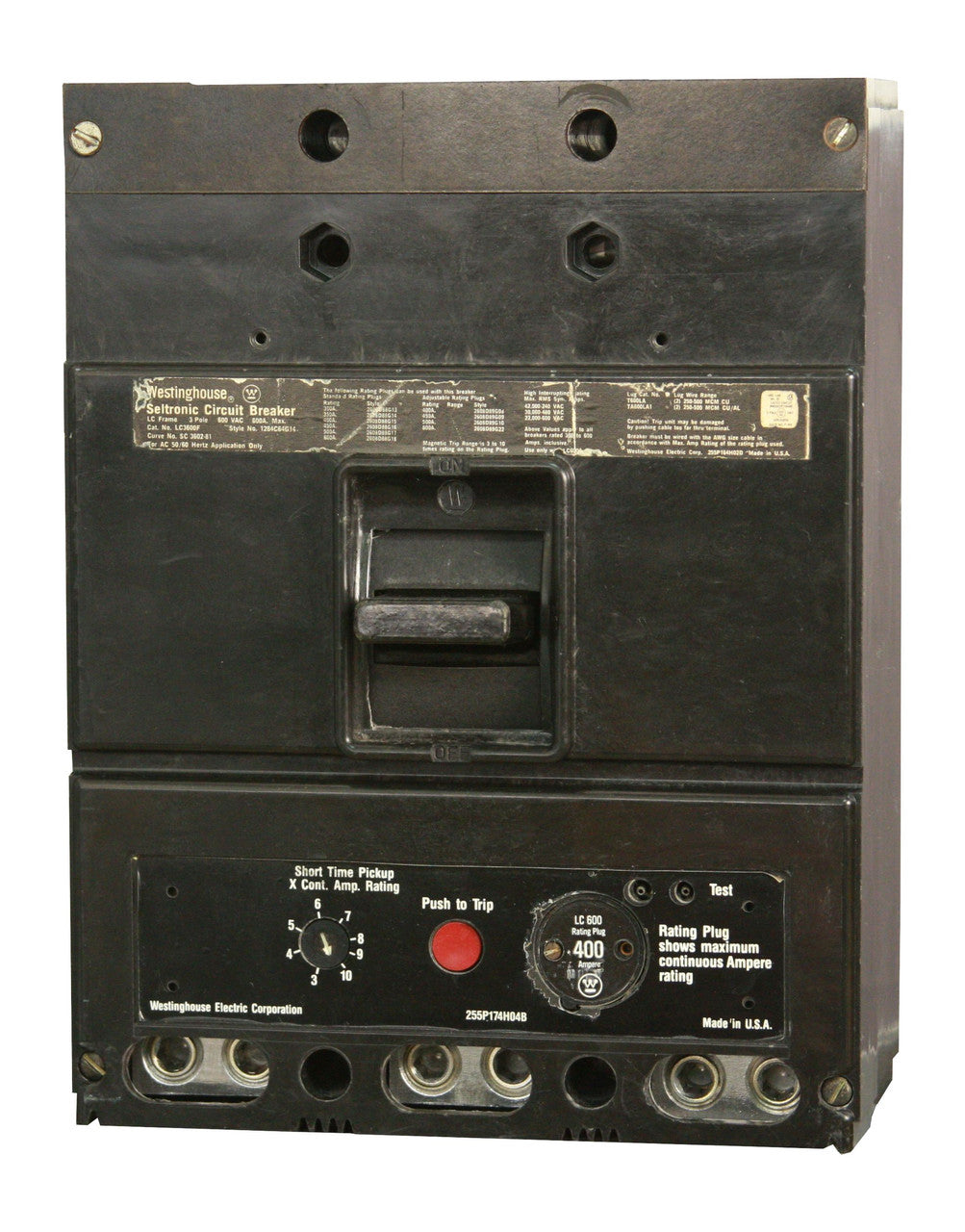

The Westinghouse LC3600F is a molded case circuit breaker frame designed for high-capacity electrical protection in industrial power distribution systems. Rated for up to 600 amperes and 600 volts alternating current, it provides a robust platform for electronic trip configurations. This unit is commonly used as a panel-mounted breaker frame in systems requiring flexible trip rating selection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Westinghouse |
| Category |
Circuit Breaker |
| Part Number |
LC3600F |
| Subcategory |
Molded Case Circuit Breaker |
| Frame Type |
Cutler Hammer Circuit Breaker Frame |
| Rated Current (Frame) |
600 Ampere |
| Voltage Rating |
600 VAC |
| Poles |
3 |
| Phase |
3 Phase |
| Interrupting Capacity |
30 kiloampere interrupting capacity at 480 volts |
| Trip Type |
Electronic Trip Compatible |
| Configuration |
Frame Only (No Rating Plug, No Trip Unit) |
| Mounting Type |
Panel Mount |
| Manufacturer Type |
Original Equipment Manufacturer, Seltronic |
| Condition Note |
Re-certified |
| Weight |
12.00 lbs |
Information About LC3600F
The LC3600F is a Cutler Hammer and Westinghouse OEM molded case circuit breaker frame, engineered for use in heavy-duty electrical distribution environments. It features a three-pole configuration and supports electronic trip units, allowing customizable protection settings depending on installed rating plugs. Designed as a frame-only designation, it does not include a rating plug or trip unit, making it suitable for retrofit or replacement applications where components are configured separately. With a 30 kiloampere interrupting capacity at 480 volts, it is widely applied in commercial and industrial panels requiring dependable fault protection and modular configuration.
Key Features:
- High Current Frame Capacity: Supports up to 600 ampere applications for large electrical distribution systems.
- Three-Pole Design: Configured for three-phase power systems in industrial environments.
- Electronic Trip Compatibility: Allows integration with adjustable electronic trip units for precise protection.
- Frame-Only Configuration: Supplied without rating plug or trip unit for flexible customization.
- High Interrupting Rating: 30 kiloampere interrupting capacity at 480 volts ensures reliable fault clearing.
- Panel Mount Installation: Designed for secure mounting within switchboards and distribution panels.
- OEM Construction: Manufactured to Westinghouse and Cutler Hammer specifications for compatibility.
- Re-Certified Unit: Tested and verified for continued operational use in legacy systems.
The LC3600F delivers the reliability and precision required for adaptable circuit protection in high-capacity industrial power distribution systems.
