Highlights
- Up to 102 Ultrastar HDDs (SAS or SATA)
- Up to 1.8PB raw capacity in 4U using 18TB CMR HDDs
- Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of the drive slots
- Dual-port SAS for high availability or single-port SATA for low cost
- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
- 5-year limited warranty
- Many configurations available, contact us via Live Chat or call us for more options
Applications and Workloads
- SDS Environments
- Big Data
- Private Cloud
- Data Analytics
- Cloud Infrastructure
IsoVibe Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
| Max. Drives |
102 x 3.5" drive bays
Up to 24 SAS/SATA SSD
|
| Drive Interface |
12Gb/s SAS
6Gb/s SATA
|
| Available Drive Capacities |
HDD up to 18TB CMR
SSD up to 15.36TB
|
| Host Interface |
Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
|
| Weight |
Without Drives: 31.8kg (70lbs)
With 60 HDDs: 118.8kg (262lbs)
|
| LED Indicators |
Front/Rear: Power, ID, Fault
Drive: Activity, Fault |
| Physical Dimensions |
Height: 175mm (6.89")
Width: 447mm (17.61")
Depth: 1047mm (41.25")
Depth in Rack: Max of 1197mm (47.13") w/ dual CMA
|
| Management |
SCSI Enclosure Services
Redfish (out of band, via RJ45)
|
| Power |
Dual 1600W, 80+ Platinum
200-240V AC input, auto ranging, 50-60Hz
|
| Cooling |
4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 IO module fan

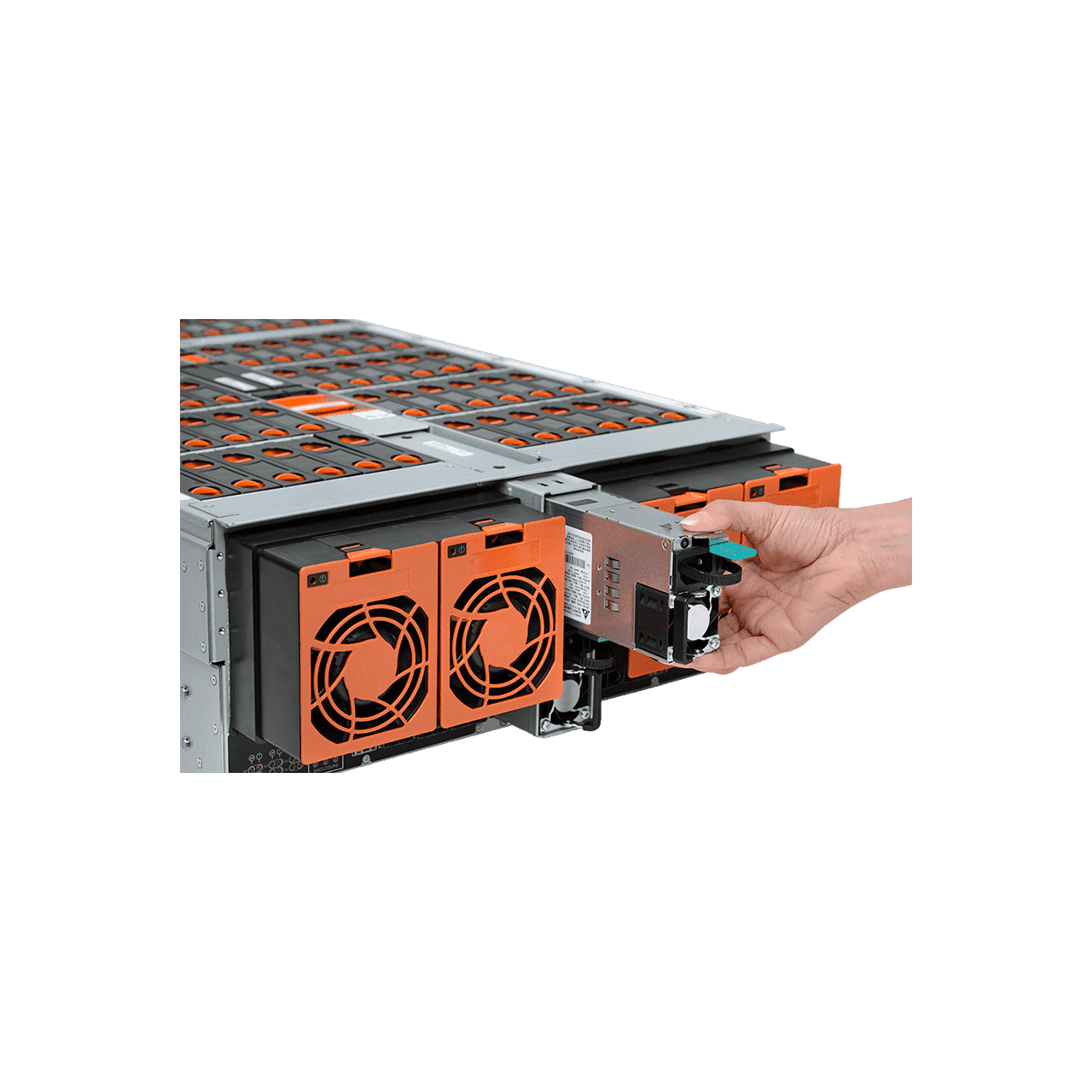

Dual PSUs with built-in fans
|
| Environmental |
Operating Temperature: 5 C to 35 C
Non-op Temperature: -40 to 70 C
Humidity: 5 to 85% relative humidity
Operating Altitude: -300m to 3048m (-984 ft to 10,000 ft)
Sound Power: < 7.2Bels @ 23 C
|
| Serviceability |

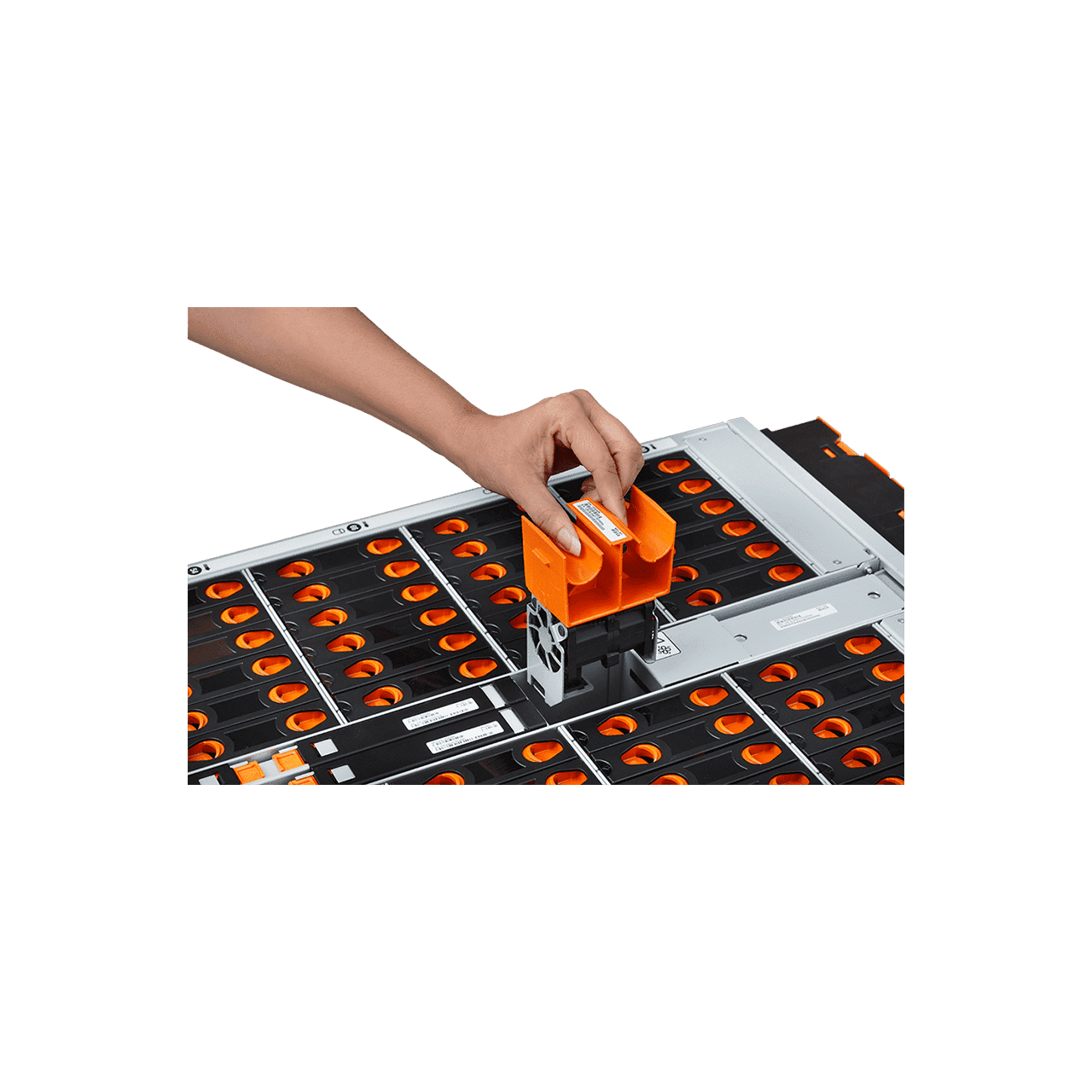

Cable-free hot-swappable IOM, power supply, fans and drives
|
