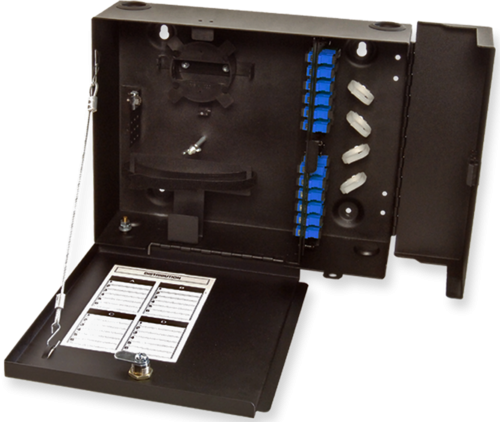

Wall Mount Fiber Patch & Splice Enclosure – Black. Holds (8) LGX Adapter Plates, (4) Splice Trays

This wall-mount fiber patch and splice enclosure is designed for compact, secure termination of fiber optic cables in indoor distribution environments. Built from rugged 16-gauge steel, it supports both splicing and patching within a single enclosure, making it suitable for telecom rooms, MDF/IDF closets, and enterprise fiber deployments.

The enclosure accommodates up to eight LGX-style adapter plates and four splice trays, allowing clean organization of incoming fibers while maintaining easy access for moves, adds, and changes. A dual-door design with integrated lock provides physical protection while separating splice management from connector access. Top and bottom cable entry points with dust-proof grommets help maintain proper bend radius and reduce debris ingress.

Download product spec sheet (PDF)

Specifications

• Capacity:

  • Holds (8) LGX-style adapter plates (not included)

  • Holds (4) splice trays (not included)

  • Supports up to 48 fiber ports (depending on adapter configuration)

• Splice Tray Compatibility:

  • F1-SPL24 or 2000-SSTA splice trays (approximately 12" L × 4" W)

• Construction:

  • Material: 16-gauge steel

  • Finish: Black polyester powder coating

• Design Features:

  • Dual-door enclosure with integrated lock (lock and key included)

  • Top and bottom cable entry holes

  • Dust-proof grommets

  • Wall-mountable compact housing

  • Supports both splicing and patching in one enclosure

• Dimensions:

  • 15.46" L × 20.29" H × 6.31" W
