Wall-Mount Fiber Enclosure — Patch and Splice, Unloaded (2 Adapter Plates)

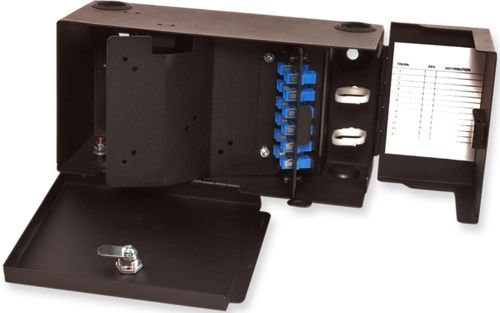

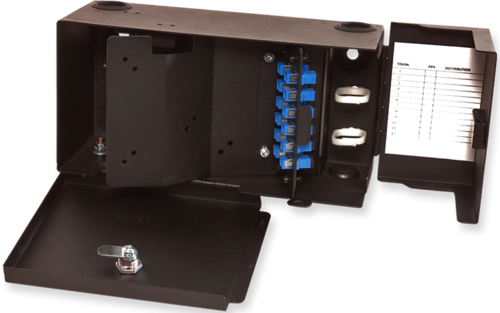

This compact wall-mount fiber enclosure is designed for small to medium fiber terminations where both splicing and patching are required in a single, secure housing. Its lightweight yet rugged construction makes it easy to install in telecom rooms, equipment closets, and building entry points with limited space.

The enclosure supports up to two LGX-style adapter plates and accommodates splice trays for fiber splicing, allowing clean integration of incoming and outgoing fibers. Top and bottom cable entry holes are protected by dust-proof grommets to safeguard fibers during installation and long-term operation. Inside, the layout provides sufficient space for orderly fiber routing and strain relief.

A double-door design with an integrated lock and key provides controlled access and added security, making the enclosure suitable for shared or semi-public environments. Constructed from durable 16-gauge steel with a black powder-coated finish, the enclosure offers reliable protection for fiber connections while maintaining a compact footprint. Splice trays and adapter plates are not included, allowing flexibility to configure the enclosure to specific application needs.

Download product spec sheet (PDF)

Technical Specifications

• Mounting Type: Wall-mount fiber enclosure

• Functionality: Integrated fiber splicing and patching

• Adapter Plate Capacity:

  • Holds up to (2) LGX-style adapter plates (not included)

• Splice Tray Capacity:

  • Holds up to (2) splice trays (not included)

• Cable Entry:

  • Top and bottom entry holes

  • Dust-proof grommets

• Doors / Security:

  • Double-door design

  • Lock and key included

• Construction:

  • 16-gauge steel

• Finish / Color:

  • Black powder-coated finish

• Dimensions (L × H × D):

  • 12.29 in × 6.46 in × 5.06 in

• Included Components:

  • Enclosure only (adapter plates and splice trays not included)
