Description

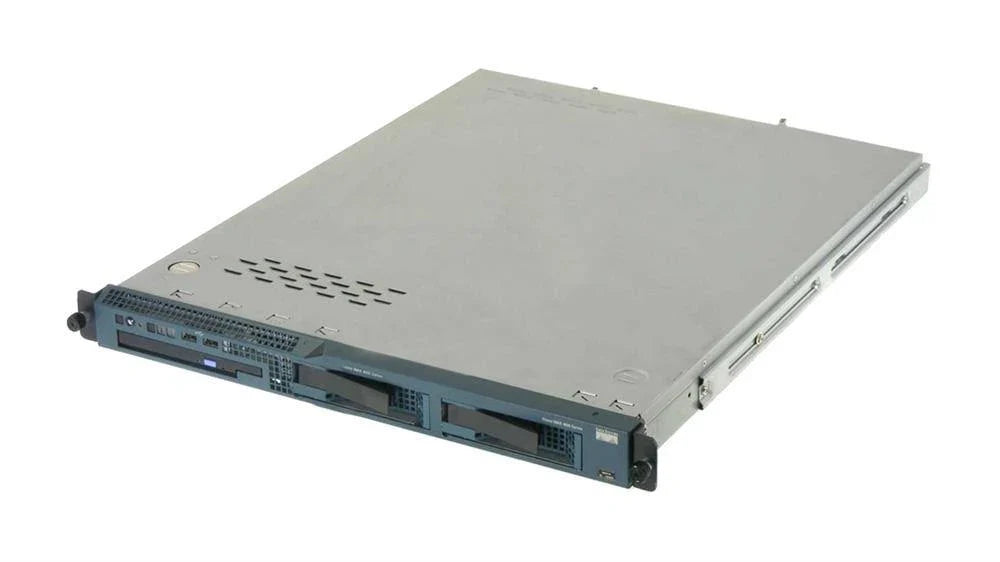

The Cisco WAE‑612‑K9 is a rack‑mountable Wide Area Application Engine designed for WAN optimization and application acceleration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
PLCs/Machine Control |
| Part Number |
WAE-612-K9
|
| Subcategory |
PLC Module/Rack |
| Hard Drive |
2 x 300 GB |
| Data Transfer Rate |
10 Mbps Ethernet, 100 Mbps Fast Ethernet, 1 Gbps Gigabit Ethernet |
| Dimensions |
1.8" Height x 17.2" Width x 22.0" Depth |
| Processor |
1 x Intel Pentium D 3 GHz |
| Interfaces/Ports |
2 x RJ-45 10/100/1000Base-T Network LAN |
| Connectivity Media |
10/100/1000Base-T Twisted Pair |
| Input Voltage Range |
100 V AC to 127 V AC, 200 V AC to 240 V AC |
| Management |
Content Distribution Manager (CDM), Command-Line Interface (CLI), Cisco WAAS Central Manager, Cisco WAFS Central Manager |
| Expansion Slots |
1 x Expansion Slot |
| Input Voltage |
110 V AC, 220 V AC |
| Load Balance Applications |
Web |
| Maximum Memory |
4 GB DDR SDRAM |
| Power Supply |
1 x 350 W |
| Standard Memory |
2 GB DDR SDRAM |
| Interface Type |
10/100/1000Base-T |
| Number of Ports |
2 |
| Weight |
32.00 lbs |
Information About WAE-612-K9
The Cisco WAE-612-K9 is a Wide Area Application Engine designed to accelerate and optimize application delivery across WAN environments. Built for mid-size branch offices and enterprise data centers, it supports Cisco WAAS, ACNS, or WAFS software to reduce latency, improve bandwidth utilization, and enhance user experience for web, file, and video-based applications. With a dual-core processor, RAID-enabled storage, and Gigabit Ethernet connectivity, the WAE-612-K9 offers scalable and secure performance in a compact 1U form factor.
Key Features:
-
Product Type: Wide Area Application Engine (WAN Optimizer)
-
Series: Cisco WAE 600 Series
-
Processor: Dual-core Intel Pentium D 3.0 GHz, 1 MB L2 cache per core
-
Memory: 2 GB DDR SDRAM (expandable to 4 GB)
-
Storage Options: Two SAS hot-swappable drives with RAID-1 (292 GB or 600 GB total)
-
Networking: 2 × Gigabit Ethernet ports (10/100/1000 Base-T RJ-45)
-
Form Factor: 1U rack-mount (17.2" × 1.8" × 22.1")
-
Weight: Approximately 12.7 kg (28 lb)
-
Software Support: Cisco WAAS, ACNS, or WAFS (one active at a time)
-
Traffic Interception: Inline support via optional PCI-X adapter
-
Management: Managed through Cisco IOS and WAAS Central Manager
-
Export Classification: EAR99
The WAE-612-K9 is ideal for enterprises aiming to enhance WAN efficiency, accelerate remote application access, and consolidate IT infrastructure. Its robust hardware and flexible software options make it a powerful solution for optimizing bandwidth and reducing load times, particularly in distributed and hybrid network environments.
