Description

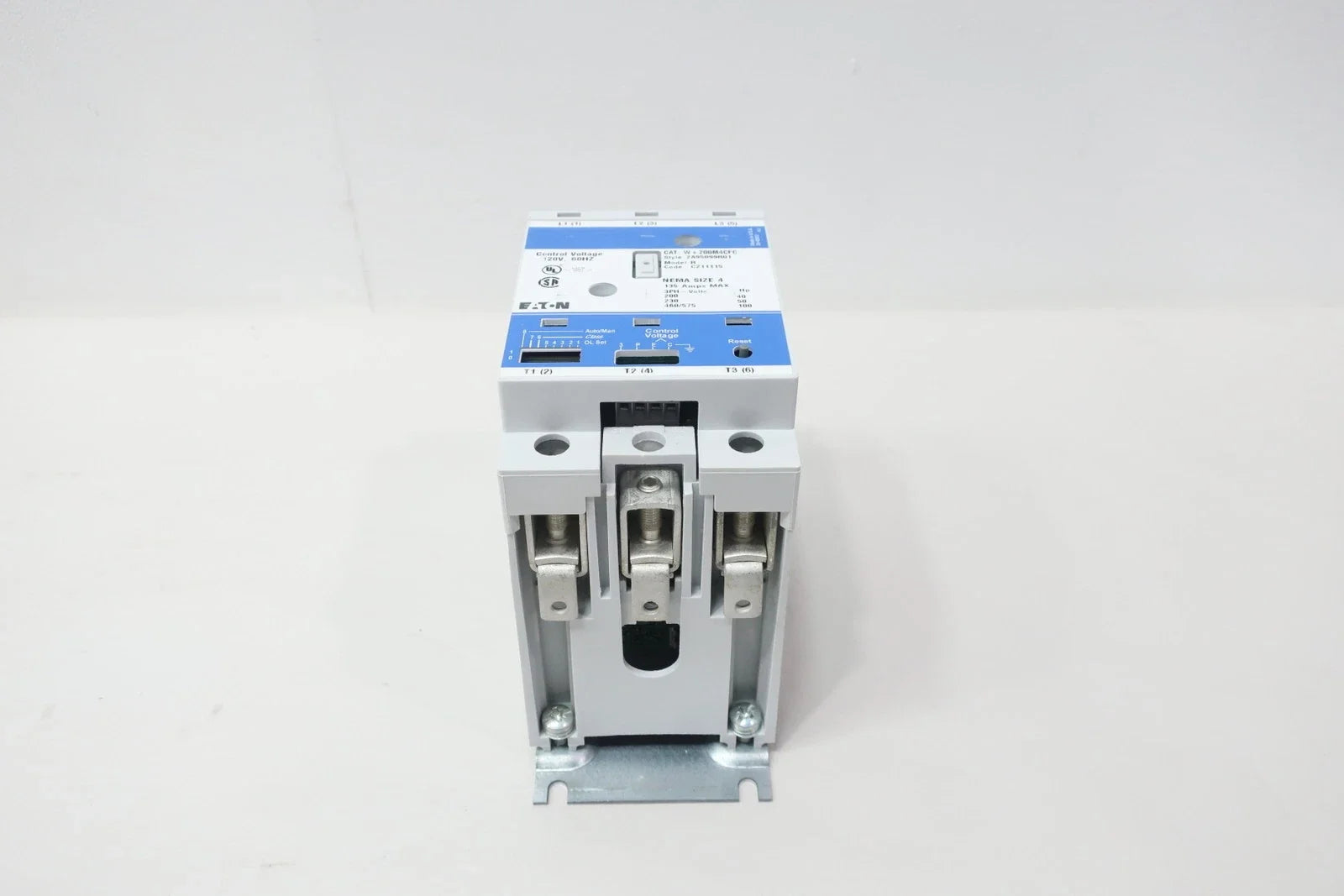

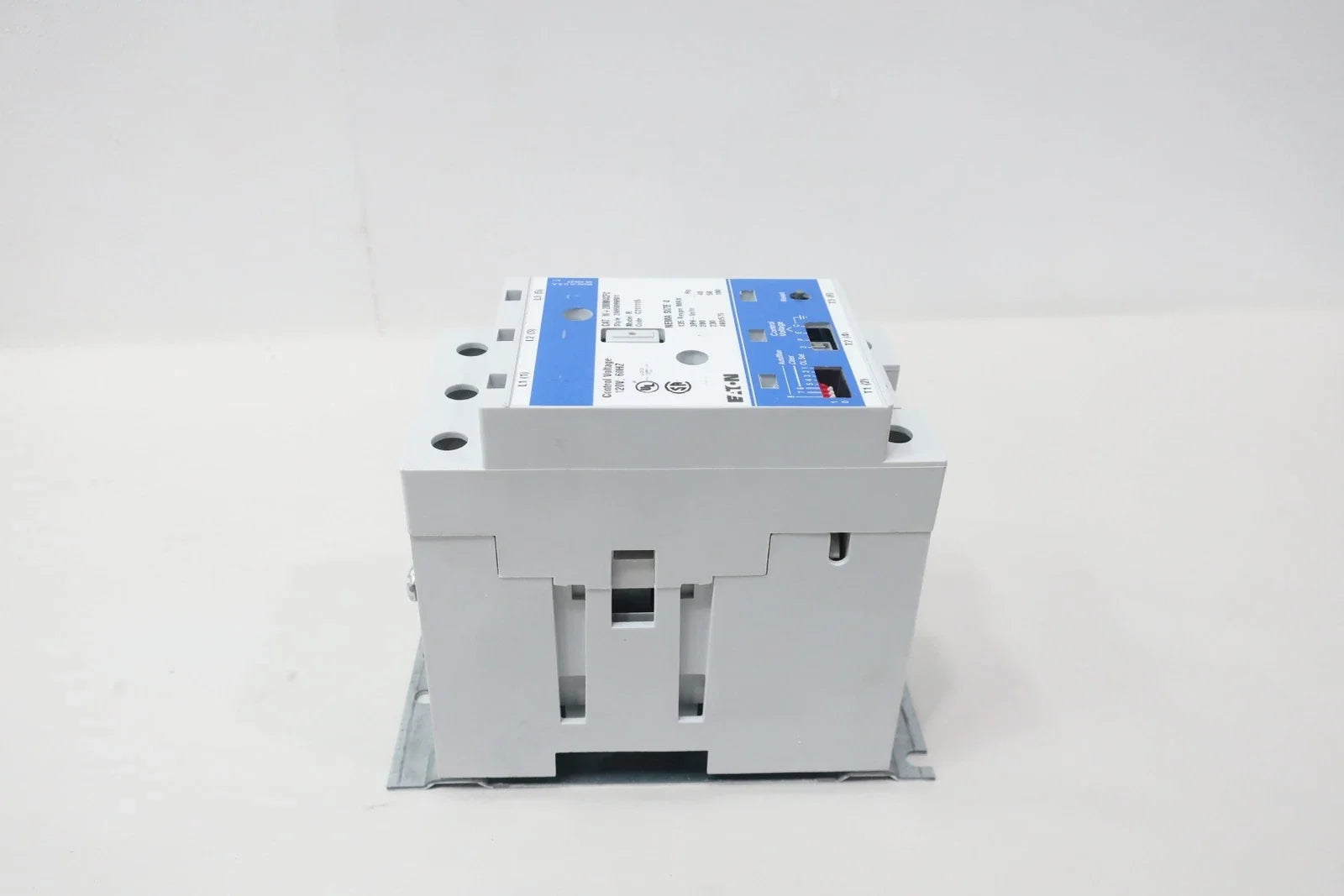

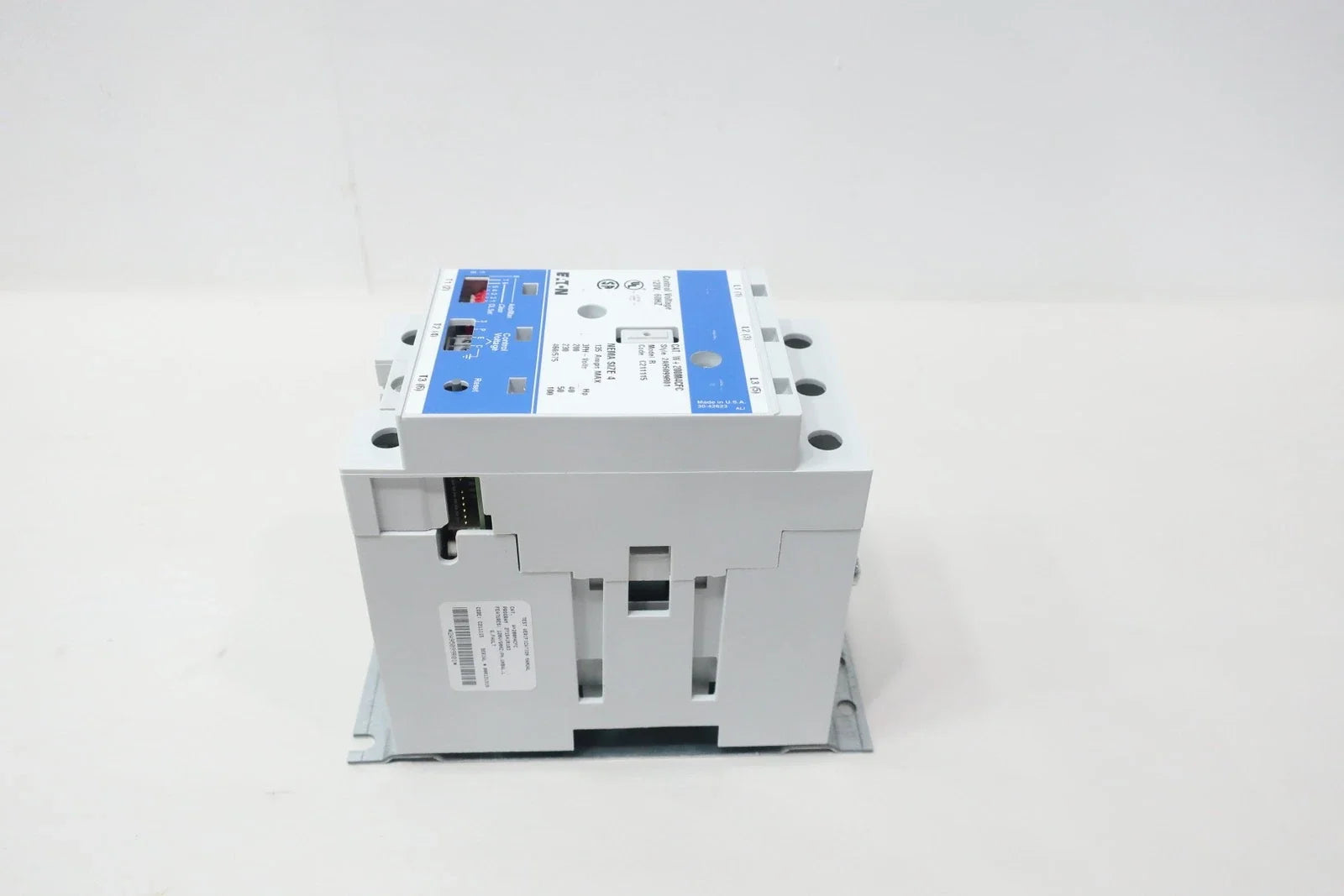

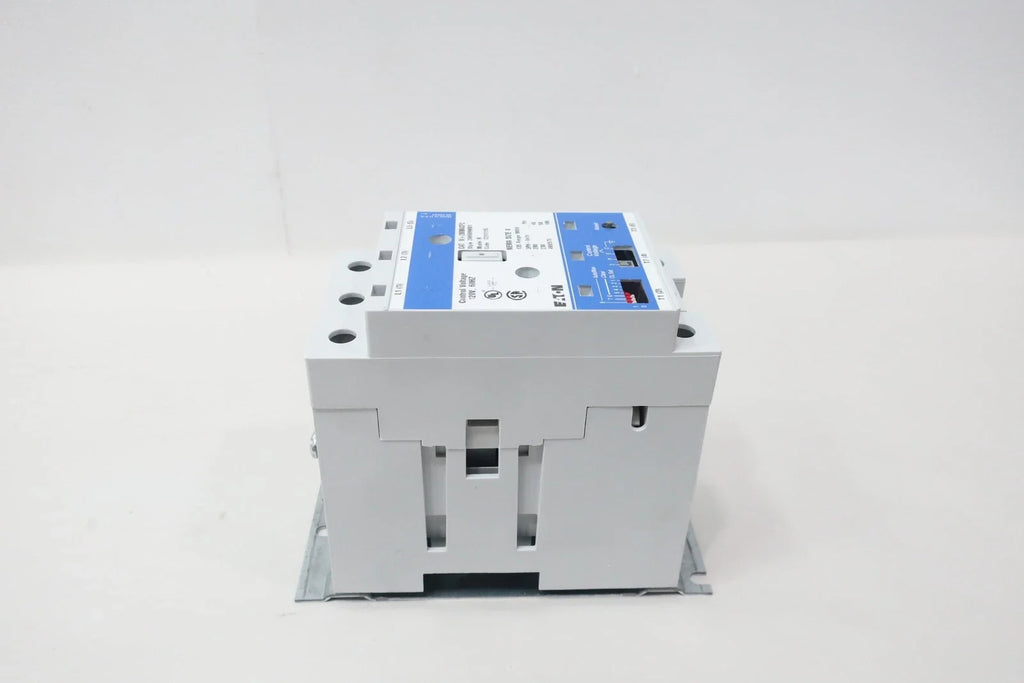

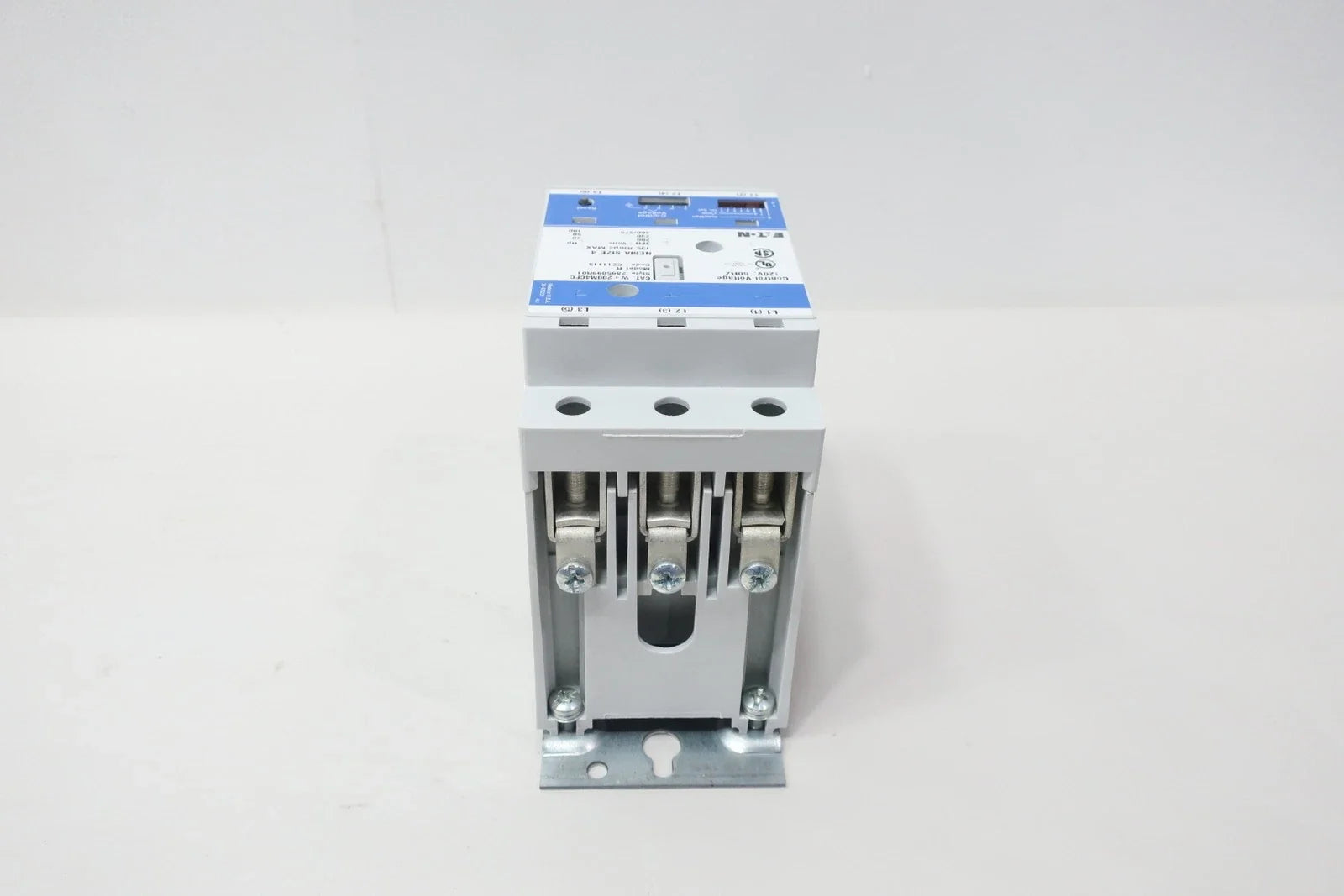

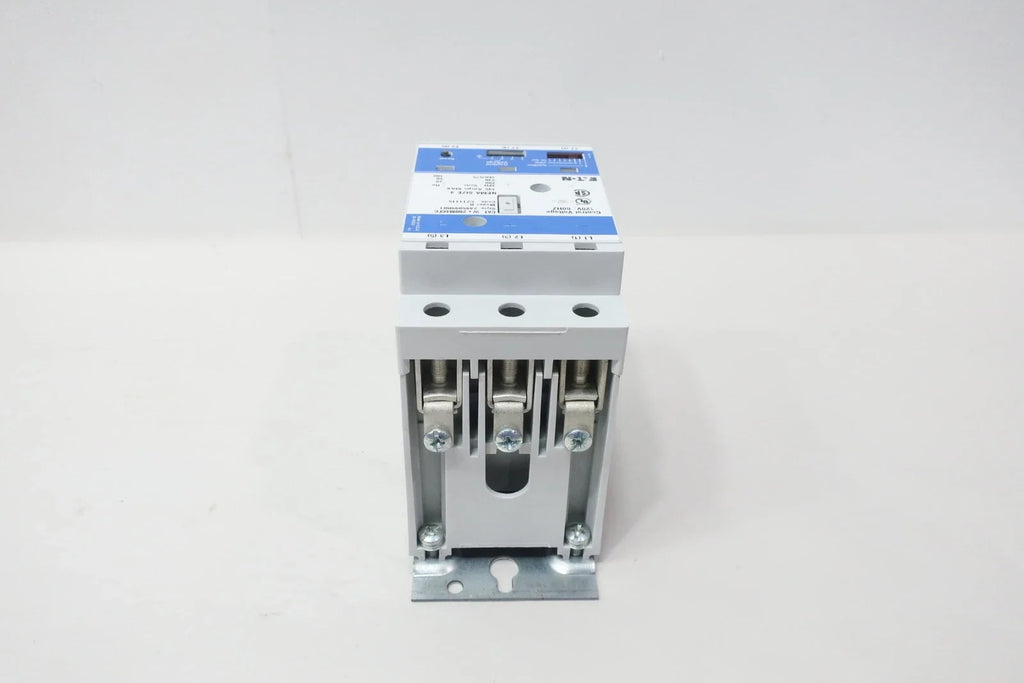

The Eaton W200M4CFC is a full-voltage non-reversing motor starter designed for reliable control and protection of three-phase industrial motors. Manufactured by Eaton / Cutler-Hammer, the W200M4CFC features a NEMA Size 4 frame with a 135A rating and operates on control voltages of 120VAC. It provides dependable motor starting performance and overload protection for demanding industrial motor control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton / Cutler-Hammer |
| Category |
Motor Control |
| Part Number |
W200M4CFC |
| Subcategory |
Motor Starter |
| Series |
Advantage |
| Starter Type |
Full Voltage Non-Reversing |
| Frame Type |
W+200 |
| NEMA Size |
4 |
| Continuous Current Rating |
135 A |
| Voltage Rating |
600 VAC |
| Number of Poles |
3 |
| Phase |
3 Phase |
| Control Coil Voltage |
120 VAC (50/60 Hz) |
| Overload Relay Type |
Solid State |
| Enclosure Type |
Open |
| Mounting Type |
Surface Mount |
| Approvals |
UL, CSA |
| Standards |
NEMA |
| Motor FLA Range |
9.9 – 133 A |
| Horsepower Rating (200V 3Ø) |
40 HP |
| Horsepower Rating (230V 3Ø) |
50 HP |
| Horsepower Rating (460V 3Ø) |
100 HP |
| Horsepower Rating (575V 3Ø) |
100 HP |
| Length |
5.5 in |
| Width |
1.77 in |
| Height |
6.3 in |
| Weight |
Approx. 8 lb |
Information About W200M4CFC
The W200M4CFC is part of Eaton’s Advantage Series motor control lineup, engineered to provide efficient and durable motor starting solutions for industrial automation and heavy-duty equipment. Designed as a NEMA Size 4 starter, it supports large three-phase motors and operates in systems up to 600VAC. The starter incorporates a solid-state overload relay to enhance motor protection and improve operational reliability in demanding environments. With a three-pole configuration and open enclosure construction, the unit is intended for installation within motor control centers or industrial panels as part of Eaton Advantage motor control systems.
Key Features:
- Full Voltage Non-Reversing Starter: Designed for direct-on-line motor starting with simple and reliable operation.
- NEMA Size 4 Frame: Suitable for large industrial motors and heavy-duty motor control applications.
- 135 Amp Continuous Rating: Provides dependable performance for high-load motor circuits.
- Three-Pole Configuration: Supports three-phase motor control systems.
- Solid-State Overload Relay: Protects motors from overheating and overload conditions with improved accuracy.
- Wide Motor Horsepower Capability: Supports motors up to 100 HP at 460V and 575V three-phase systems.
- 120VAC Control Coil: Compatible with standard industrial control voltage systems.
- Advantage Series Compatibility: Designed to integrate with Eaton Advantage motor control centers and equipment.
The W200M4CFC delivers the reliability and precision required for industrial motor control and protection systems.
