Description

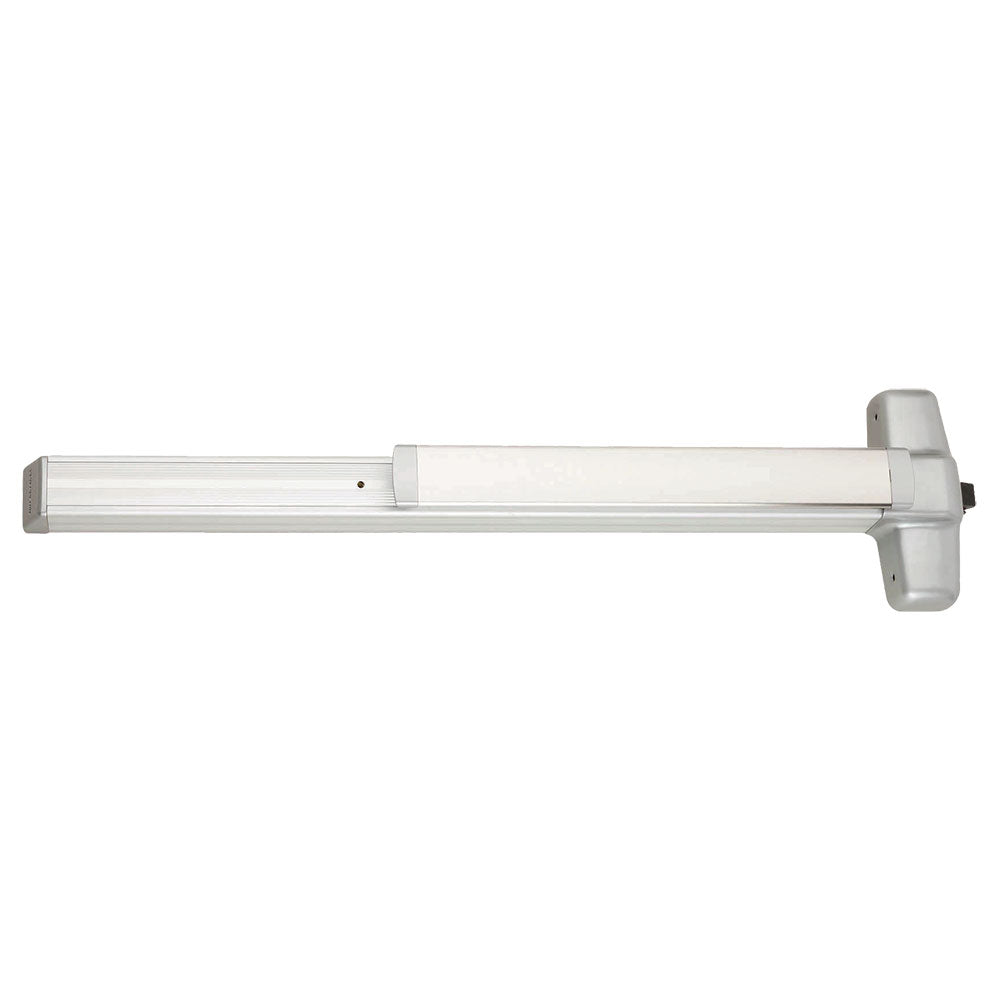

The Von Duprin 99-EO-US26D 3' 299-PBT=US32D is a heavy-duty rim panic exit device designed to provide reliable, code-compliant egress for commercial buildings. Manufactured by Von Duprin, this Grade 1 exit device features an architectural-grade touch bar mechanism, satin chrome finish, and exit-only operation for high-traffic door applications. It is engineered for long-term durability and smooth operation in demanding institutional and commercial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Von Duprin (Allegion) |
| Category |
Door Hardware |
| Part Number |
99-EO-US26D 3' 299-PBT=US32D |
| Subcategory |
Panic Exit Devices |
| Product Series |
Von Duprin 99 Series |
| Function |
Exit Only (EO) |
| Device Type |
Rim Exit Device |
| Certification |
ANSI/BHMA A156.3 Grade 1 |
| Fire Rating |
Non Fire Rated |
| Door Width |
3 ft (36 in.) |
| Handing |
Non-Handed |
| Finish |
Satin Chrome (US26D / 626) |
| Strike |
299 Roller Strike |
| Dogging |
Standard Hex Key Dogging |
| Cylinder |
Not Required |
| Latchbolt |
Deadlocking Horizontal Latch Bolt |
| Mounting |
Surface Mounted Rim |
| Typical Applications |
Commercial, Institutional, Educational, Healthcare, Government Buildings |
| Country of Manufacture |
United States |
| Weight |
Approximately 24 lb |
Information About 99-EO-US26D 3' 299-PBT=US32D
The 99-EO-US26D 3' 299-PBT=US32D is part of the renowned Von Duprin 99 Series of premium panic hardware built for demanding commercial and institutional installations. Its rim-mounted configuration utilizes a deadlocking horizontal latch bolt that engages a frame-mounted strike, making it suitable for single doors or double doors with a removable mullion. The exit device features a non-handed design for simplified installation, a standard hex key dogging mechanism for holding the latch retracted during business hours, and a durable satin chrome finish for excellent wear resistance. Designed to meet ANSI/BHMA Grade 1 performance standards, it is commonly installed in schools, hospitals, office buildings, government facilities, and other high-occupancy structures requiring dependable emergency egress.
Key Features:
- Grade 1 Certification: Meets ANSI/BHMA A156.3 Grade 1 requirements for heavy-duty commercial use.
- Exit Only Function: Provides free egress from the interior without outside operating trim.
- Rim Exit Device: Surface-mounted horizontal latch bolt engages a frame-mounted roller strike.
- 99 Series Push Bar: Architectural-grade touch bar designed for frequent daily operation.
- Hex Key Dogging: Standard dogging feature holds the push bar depressed during normal business hours.
- Non-Handed Design: Can be installed on left- or right-hand doors without modification.
- 299 Roller Strike Included: Provides smooth latch engagement and dependable door operation.
- Satin Chrome Finish: US26D/626 finish offers excellent corrosion resistance and a professional appearance.
- 3-Foot Door Compatibility: Factory sized for standard 36-inch commercial doors and can be field adjusted if required.
- Deadlocking Latchbolt: Improves security while preventing unauthorized latch manipulation.
- Commercial Durability: Built for continuous operation in high-traffic institutional and commercial facilities.
The 99-EO-US26D 3' 299-PBT=US32D delivers the reliability and precision required for commercial emergency egress systems in demanding architectural applications.
