Description

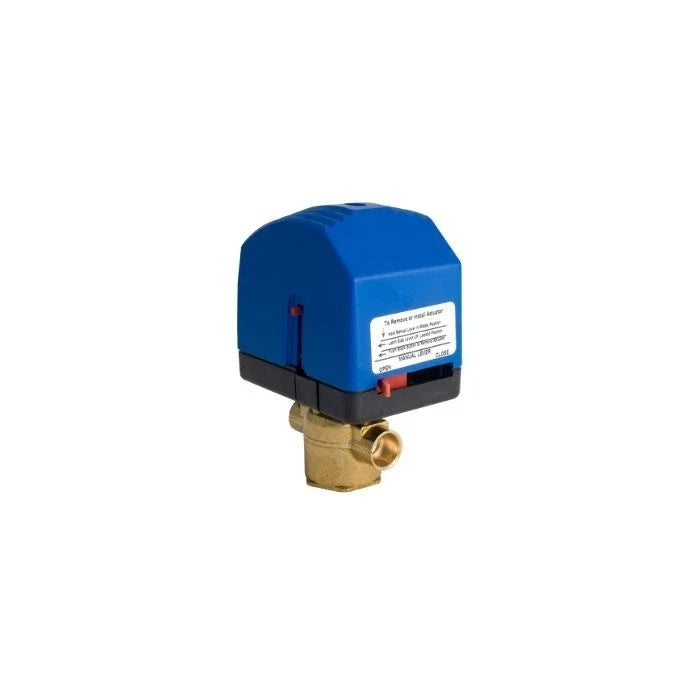

The Schneider Electric VM2322P23A000 is a 2-way proportional control valve with a 3/4-inch NPT connection designed for fluid flow regulation in HVAC and building automation systems. It is normally open and paired with a proportional electric actuator operating at 24 VAC with spring return functionality. This assembly is intended for precise control of water or glycol mixtures in non-steam applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
HVAC Control |
| Part Number |
VM2322P23A000 |
| Subcategory |
Control Valves |
| Valve Pattern |
2-way |
| Valve Size |
3/4 inch |
| End Fitting |
NPT |
| Flow Coefficient (Cv) |
2.0 |
| Valve Position |
Normally Open |
| Fluid Compatibility |
Water, Glycol 25–60% (no steam) |
| Actuator Type |
Electric |
| Control Type |
Proportional |
| Control Signal Range |
0–10 VDC, 0–5 VDC, 4–20 mA DC, 5–10 VDC |
| Power Input |
24 VAC |
| Loss of Power Action |
Spring return |
| Mechanical Movement |
Rotary |
| Protection Rating |
NEMA 1 |
| Weight |
4.6 lbs |
Information About VM2322P23A000
The VM2322P23A000 is a valve and actuator assembly engineered by Schneider Electric for modulating fluid control applications. The valve body features a 3/4-inch NPT end fitting and a Cv rating of 2.0, supporting controlled flow in hydronic systems. It is compatible with water and glycol solutions ranging from 25% to 60% concentration. The integrated AP23A000 electric actuator supports multiple proportional control signal ranges and provides spring return operation upon power loss for fail-safe positioning.
Key Features:
- 2-Way Proportional Control Valve: Designed for modulating fluid flow in control systems.
- Normally Open Configuration: Allows default open position during unpowered conditions.
- 3/4-Inch NPT Connection: Standard threaded fitting for HVAC and hydronic installations.
- Proportional Electric Actuator: Supports multiple analog control signal ranges.
- Spring Return on Power Loss: Ensures defined fail-safe operation.
- Hydronic Fluid Compatibility: Rated for water and glycol mixtures without steam.
- NEMA 1 Protection Rating: Suitable for indoor mechanical and control environments.
The VM2322P23A000 delivers the reliability and precision required for proportional fluid control in HVAC and building automation applications.
