Device

Model

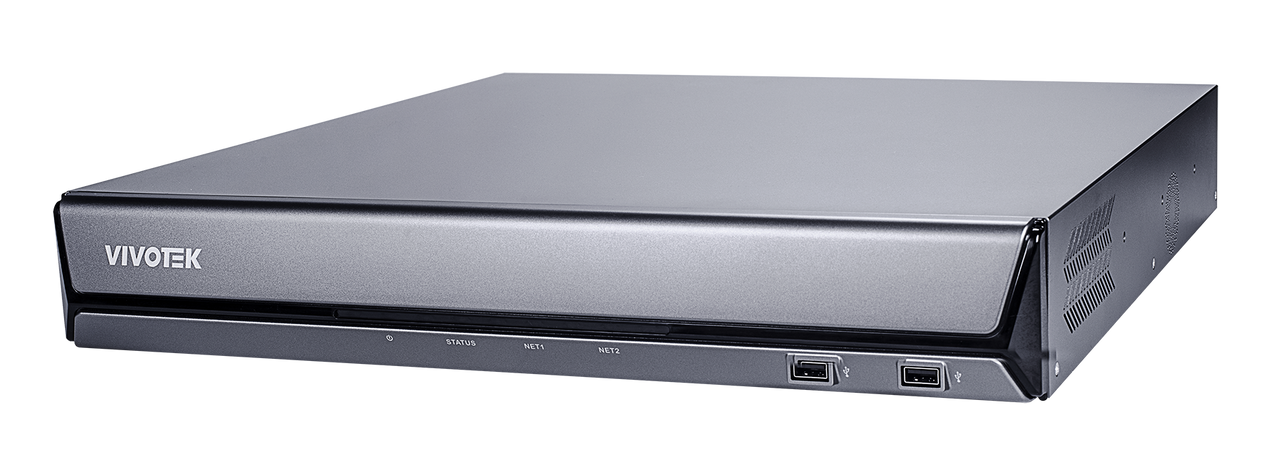

ND9442P

OS

Embedded Linux

Watchdog

Hardware + Software

Power Restoration

System Restart Automatically after Power Recovery

Display

LiveView Display

16 Channels
Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4

Video Output

HDMI x1, VGA x1

Display Resolution

3840x2160, 1920x1080, 1280x720

Fisheye Dewarp

Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P

PTZ Operation

Direction Control, Home, Iris, Preset, Patrol (Group)

Video

Video Format

H.265, H.264, MJPEG

Graphic Decoder

Hardware decoding

Decoding Resolution

Up to 7680x2560

Decoding Capability

H.265/H.264:
3840x2160 @ 90 fps (3-CH)
1920x1080 @ 360 fps (12-CH)

Audio

Audio Format

G.711, G.726

Audio In/Out

3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1

Record

Recording Time (sec.)

Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)

Recording Stream

Dual

Recording Throughput

192 Mbps

Recording Mode

Continuous, Schedule, Manual, Event, Activity Adaptive Streaming

Recording Setting

Recycle (unit: Day)

Watermark

Supported

Storage & Backup

HDD Devices

Internal x4 (3.5")
*HDD purchased separately.

HDD Max. Capacity

*Please refer to the recommended HDD list on the VIVOTEK website.

RAID

RAID 0, 1, 5

Disk Management

Create, Format and Remove Disk
HDD S.M.A.R.T.

External Storage

USB Storage (USB 3.0)

Video Clip Export

USB Dongle (FAT Format)

Schedule Backup

FTP

Playback

Playback Display

4 Channels
Multi-Layout Display: 1x1, 2x2, 1P+3, 3V

Playback Control

Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)

Video Search

By calendar, date/time, and alarm

Thumbnail Explorer (Storyboard)

Listing the thumbnails of recorded video (Max. 2-CH)

Snapshot

JPEG

Video Clip Export

Supported

Network

Ethernet

10/100/1000Mbps Ethernet (RJ-45) x2

Network Throughput Input/Output Total

224 Mbps

PoE

802.3at/af compliant PoE ports x 16 (Total Max. 200 W)
* DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.

PoE Management

Supported

Protocols

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

USB

Front: 2 (USB 2.0)
Back: 1 (USB 3.0)

Alarm In

16

Alarm Out

8

Audio

3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1

RS485

1 (Reserved)

System

Camera Integration

ONVIF Profile S

Event

Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Fan error

Event Action

Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, VIVOCloud APP Notification

User Management

User level: administrator, regular user

Log

System, recording, user, error

Date & Time

Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

Language

Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Deep Search

Object Search

People, Vehicle

Scene Search

Line crossing, Intrusion, Loitering

Attribute Search

People: Gender, Age, Clothing Color, Accessories
Vehicles: Type, Color

Advanced Features

VCA Counting Solution

Supported

VCA Event Search

Supported

Smart Search II

Supported

Trend Micro IoT Security

Supported

Cybersecurity Management

Supported

Remote Client

Software AP

Shepherd, VAST 2, VSS (VAST Security Station)

Mobile/Tablet App

iViewer (Android & iOS)

Web Browser

Chrome

VIVOCloud

Supported

General

Power Input

100-240V AC, 50/60Hz

Power Consumption

Max. 300 W

Dimensions

432 (W) x 421 (D) x 66 (H) mm

Weight

4.6 kg (without HDD)

Operating Temperature

-10°C ~ 55°C (14°F ~ 131°F)

Humidity

0 ~ 95%

Safety Certifications

CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS

Warranty

36 months
