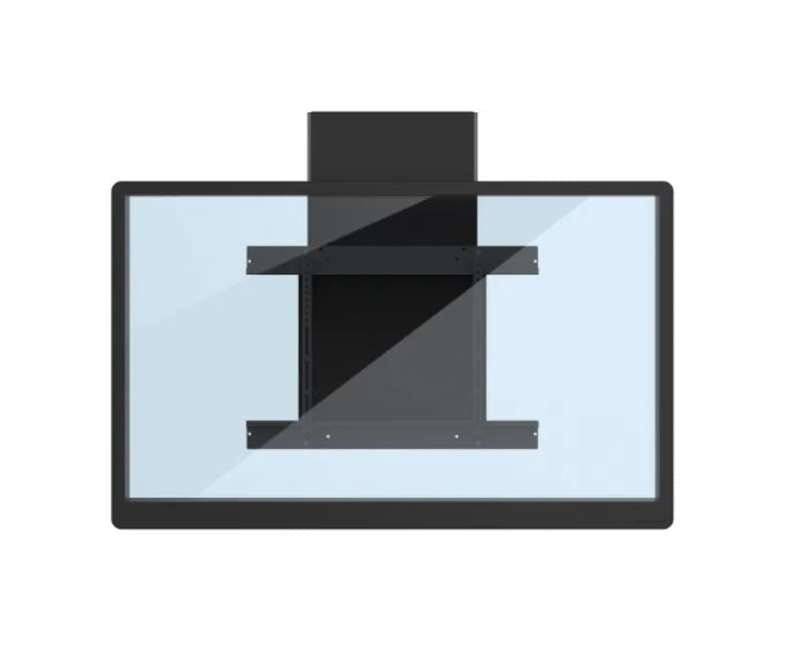

ViewSonic BalanceBox VB-BLW-002 – Height-Adjustable Wall Mount
The VB-BLW-002 (BalanceBox 400-70) is a robust height-adjustable wall mount designed for heavy-duty interactive displays. Ideal for 65″–75″ panels, especially ViewSonic ViewBoard series, it allows effortless vertical positioning without power—perfect for classrooms, boardrooms, or collaboration spaces.
Key Features
-
Spring-Tension, Manual Height Adjustment: Easily raise or lower display up to 15.75″ / 40 cm using internal spring assistance. No motors or electricity required.
-
Weight Capacity & Compatibility: Supports 90.4–152 lb (41–69 kg). Fits 65″–75″ displays; aligns with VESA mounts 200×200 mm to 800×600 mm.
-
Display Compatibility: Tailored for ViewSonic ViewBoard models IFP6550 / 6560 / 6570 / 7550 / 7560 (including “-2 / ‑S” variants).
-
Build & Finish: Constructed from durable steel, finished in black powder coat. Wall-mounted for one interactive flat panel.
-
Dimensions & Weight:
| Item |
Dimensions (WxHxD) |
Weight |
| Mount |
21.9″ × 23.3″ × 3.2″ |
60.9 lb (27.6 kg) |
| Boxed Shipping |
24.4″ × 26.4″ × 3.8″ |
~65 lb (29.5 kg) |
-
Warranty & Support: 90-day limited warranty.
Compatibility & Included Components
Includes VESA mounting brackets; supports both adapter + display using BalanceBox part numbers 480A12 + 481A70. Mounts interactive ViewBoard displays flush against wall; adjust height manually.
Use-Case Summary
-
Interactive Classrooms: Easily adjust screens for seated/standing views.
-
Meeting Rooms: Accommodates dynamic presenter needs.
-
AV Installations: Reliable, power-free adjustment—ideal for corporate, educational, or government environments.
Specifications
-
Model: VB-BLW-002 / BalanceBox 400-70
-
Display Range: 65″–75″ (max 152 lb)
-
Height Travel: 15.75″ / 40 cm
-
Materials: Steel, black powder coat
-
Adjustments: Manual, spring-assisted
-
Interface: VESA 200×200–800×600 mm
-
Depth: 3.2″
-
Warranty: 90 days
The VB-BLW-002 is a rugged, user-friendly, and power-free wall-mount solution ideal for ViewSonic interactive displays. Its spring-tension adjustment and robust build make it a strong choice for dynamic environments in education and business.
