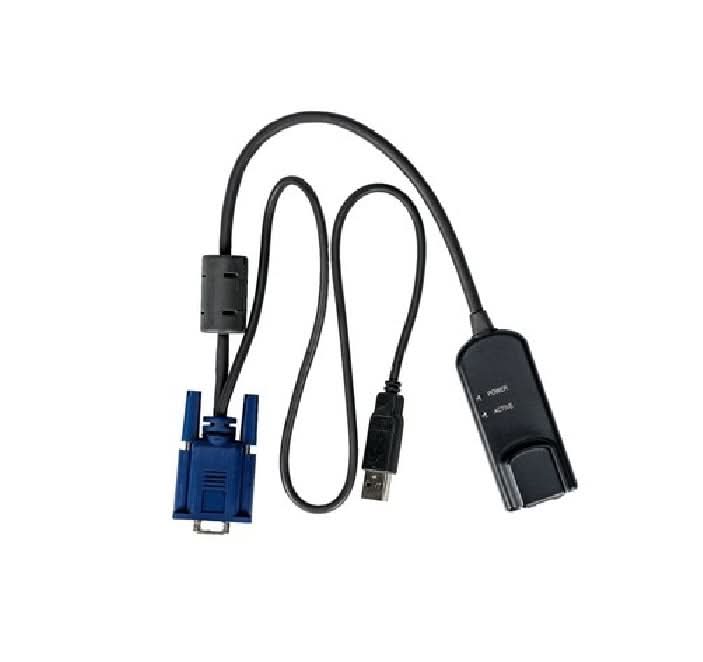

The Vertiv Avocent MPUIQ-VMCHS-G01 is a high-resolution Server Interface Module (SIM) designed for use with Avocent MergePoint Unity (MPU) and DSR KVM-over-IP switches. It converts server signals (keyboard, monitor, and mouse) to be transmitted over a single CAT5 cable to the switch, significantly reducing cable clutter.
Specifications
Model Number: MPUIQ-VMCHS-G01
Brand: Vertiv
Alt Part Number(s): MPUIQ-VMCHS-G01
Product Type: Server Interface Module
Technical Description
Brand: Vertiv
Model Number: MPUIQ-VMCHS-G01
Video Resolution: 1600 x 1200
Switch Side: 1 x RJ-45 female (network)
Interface Support: Full USB 2.0 support (up to 12 Mbps)
Connectors Server Side: 1 x 15-pin VGA (HD-15) male and 1 x USB 2.0 Type A male
Connectivity: Wired
Cable Length: 1.2ft (approx. 0.37m)
Cable Type: RJ-45 / USB / VGA
Compliance: TAA Compliant
Form Factor: External dongle
