Description

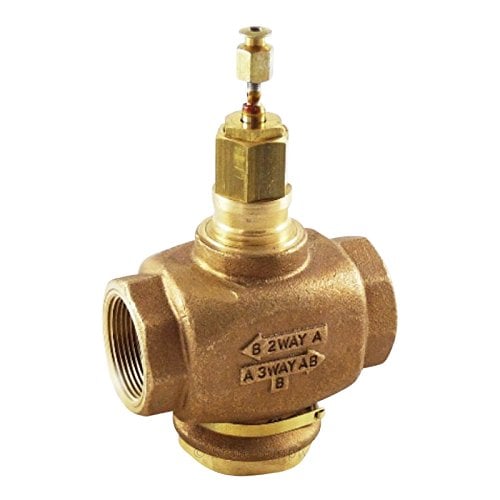

The Honeywell V5011N1073 is a 1-1/4-inch two-way threaded globe valve designed for precision control of water, steam, or glycol mixtures (up to 50%) in heating and cooling HVAC systems. It provides 18.7 Cv flow capacity and a direct-acting, stem-down-to-close design suitable for both modulating and two-position control applications. Constructed from red brass with stainless steel trim, the valve ensures durability, corrosion resistance, and smooth flow modulation under demanding system conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Valves |
| Part Number |
V5011N1073 |
| Subcategory |
Solenoid Valve |
| Valve Type |
Two-way Globe Valve |
| Body Pattern |
Straight-through (two-way) |
| Connection Type |
Female NPT |
| Valve Size |
1-1/4 in |
| Flow Coefficient (Cv) |
18.7 |
| Flow Characteristic |
Equal percentage (water), linear (steam) |
| Valve Action |
Stem down to close |
| Actuation |
Direct acting; actuator purchased separately |
| Controlled Medium |
Steam, water, or 50% glycol solution |
| Maximum Differential Pressure (Close-off) |
240 psi |
| Maximum Differential (Quiet Water Service) |
20 psid |
| Static Pressure Rating |
ANSI Class 150 |
| Maximum Pressure (Steam @ 248 °F) |
217 psi |
| Body Material |
Red brass |
| Stem Material |
Stainless steel |
| Seat Material |
Stainless steel |
| Plug/Disc Material |
Brass |
| Packing Type |
Spring-loaded, self-adjusting |
| Stem Travel |
3/4 in |
| Bonnet Size |
1-3/8 in |
| Temperature Range (Water) |
36 °F to 248 °F (2 °C – 120 °C) |
| Temperature Range (Steam) |
Up to 340 °F (171 °C) |
| Rangeability |
50:1 per VDI/VDE 2173 |
| Leakage Rating |
≤ 0.05 % of Cv |
| Mounting Orientation |
Upright or horizontal (not upside-down) |
| Compatible Actuators |
ML6420, ML7420, MP953, Q5001/Q5020 linkages |
| Dimensions (H × W × D) |
6-5/8 in × 3-1/4 in × 1-9/16 in |
| Weight |
3.80 lb (1.72 kg) |
Information About V5011N1073
The V5011N1073 is part of Honeywell’s V5011N Series of two-way globe valves, engineered for hydronic and steam service in commercial HVAC systems. The valve is rated for up to 240 psi close-off pressure and supports an ANSI 150 static pressure rating. Its equal-percentage flow characteristic provides stable and accurate water control, while a linear characteristic offers precise steam regulation. Featuring spring-loaded, self-adjusting packing and stainless steel internal components, it delivers long-lasting reliability and minimal maintenance. The valve can be paired with compatible Honeywell actuators such as the ML6420/ML7420, MP953, or via Q5001/Q5020 linkages for Modutrol or rotary motor applications.
Key Features:
- Versatile Media Control: Suitable for hot/chilled water, 50% glycol, or steam service (not for combustible gases).
- Precision Flow Performance: Equal-percentage characteristic for water and linear for steam ensures stable modulation.
- High Close-Off Pressure: Rated to 240 psi, allowing reliable operation in high-pressure hydronic systems.
- Direct-Acting Design: Stem moves downward to close valve, ensuring positive shutoff and control accuracy.
- Robust Brass Construction: Red brass body with stainless steel stem and seat for corrosion resistance and extended life.
- Low Leakage Rate: ≤ 0.05 % of Cv for tight shutoff and efficient system performance.
- Wide Rangeability: 50:1 flow control range per VDI/VDE 2173 provides smooth response across operating conditions.
- Self-Adjusting Packing: Spring-loaded packing minimizes maintenance and compensates for wear.
- Actuator Compatibility: Works with Honeywell ML6420, ML7420, MP953, or Modutrol IV actuators (via Q5001/Q5020 linkage).
- Field Serviceable: Repack and rebuild kits available for quick in-field maintenance.
The V5011N1073 provides dependable, precise flow control in commercial heating and cooling systems requiring durability and fine modulation.
