[shortdesc]
- Ubiquiti USW-PRO-MAX-24-POE is a 24-port Layer 3 UniFi switch featuring PoE++ support, high-speed 2.5GbE ports, and 10G SFP+ uplinks, optimized for enterprise networking
[/shortdesc]
[properties]
| Property |
|
| Model |
USW-Pro-Max-24-PoE |
| Product Type |
24-port, Layer 3 Etherlighting™ switch with PoE++ capability |
| Dimensions |
442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight |
Without mounting brackets: 5.1 kg (11.3 lb); With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure Material |
SGCC steel |
| Form Factor |
Rack mount (1U) |
| Etherlighting™ |
Yes |
| Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Operating Humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
[/properties]
[specifications]
| Specification |
|
| Port Layout |
- 16 x 1 GbE RJ45 (8 PoE+; 8 PoE++) |
| - 8 x 2.5 GbE RJ45 (All PoE++) |
| - 2 x 10G SFP+ |
| Total Non-Blocking Throughput |
56 Gbps |
| Switching Capacity |
112 Gbps |
| Forwarding Rate |
83 Mpps |
| Supported VLANs |
1 |
| MAC Address Table Size |
16 |
| L3 Table Size (ARP Entries) |
6 |
| Packet Buffer Size |
1.5 MB |
| PoE Ports |
- 8 x PoE+ |
| - 16 x PoE++ |
| Max. PoE Wattage per Port |
- PoE: 15.4W |
| - PoE+: 32W |
| - PoE++: 64W |
| Total Available PoE |
400W |
| Max. Power Consumption |
- 50W (Excluding PoE Output) |
| - 450W (Including PoE Output) |
| Power Method |
- Universal input, 100—240V AC, 50/60 Hz |
| - USP RPS DC input |
| Power Supply |
AC/DC, internal, 550W |
| Supported Voltage Range |
100—240V AC |
| Heat Dissipation |
170.6 BTU/hr (Excluding PoE Output) |
| LCM Display |
1.3" touchscreen |
[/specifications]

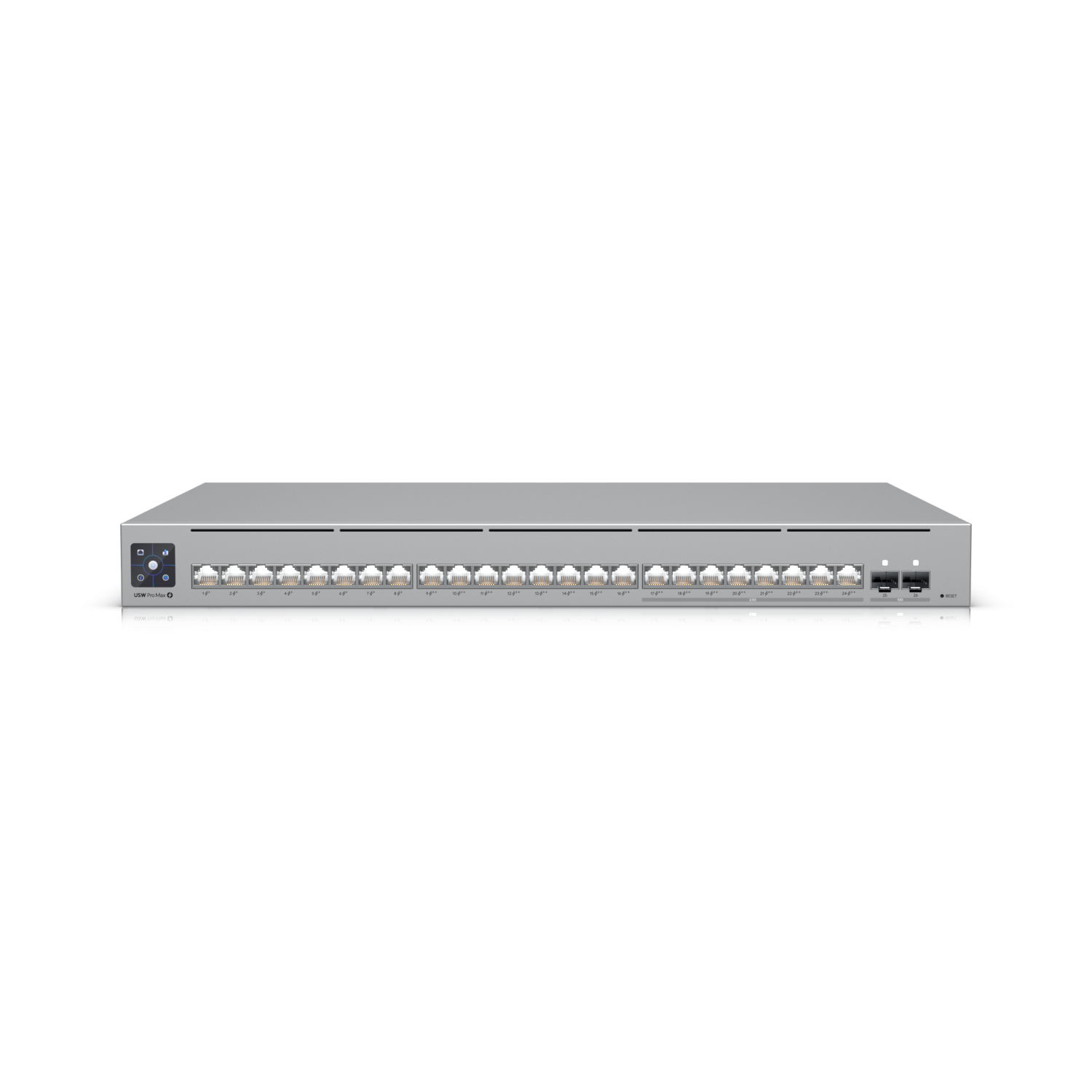

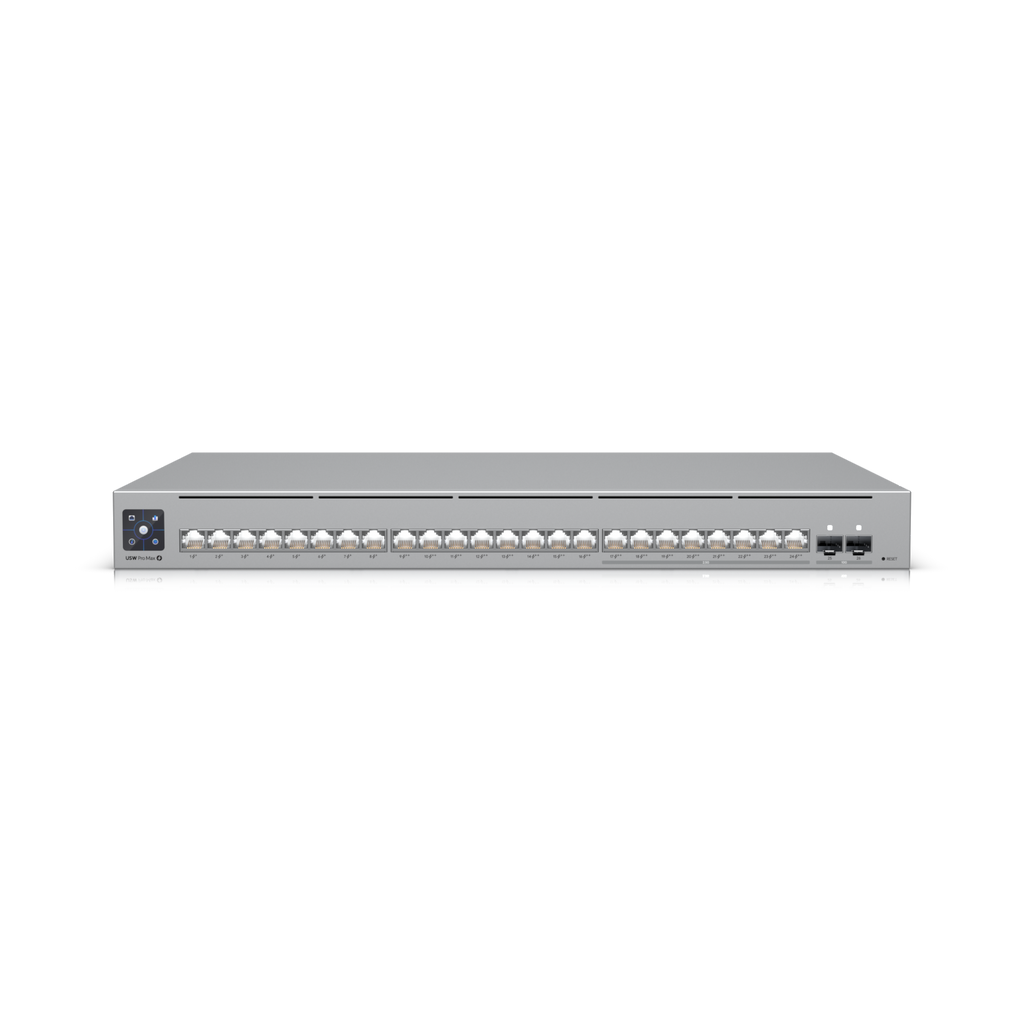

Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+
The Ubiquiti USW-PRO-MAX-24-POE is a high-performance Layer 3 UniFi switch designed for businesses and enterprise environments requiring advanced networking features and PoE++ support. Equipped with 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports, this switch delivers a total PoE budget of 400W. Additionally, it features 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for ultra-fast connectivity. With a rack-mountable 1U form factor, Etherlighting™ technology, and advanced security protocols, the USW-PRO-MAX-24-POE ensures seamless network performance and management.
Key Features:
-
Enterprise-Grade Networking: 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports.
-
High-Speed Uplinks: 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for high-bandwidth applications.
-
Powerful PoE Support: PoE+ (32W per port) and PoE++ (64W per port) with a total power budget of 400W.
-
Advanced Layer 3 Features: Supports DHCP server, DHCP relay, inter-VLAN routing, and static routing.
-
Etherlighting™ Technology: Provides visual port status indication for easy diagnostics.
-
Comprehensive Security: 802.1X authentication, DHCP snooping, MAC-based ACLs, and port isolation.
-
Optimized for Audio/Video Streaming: Features QoS (DSCP), IGMP snooping, Pro AV profiles, and multicast control.
-
Compact & Efficient: 1U rack-mountable design with an LCM touchscreen display.
Technical Specifications:
-
Switching Capacity: 112 Gbps
-
Total Non-Blocking Throughput: 56 Gbps
-
Forwarding Rate: 83 Mpps
-
Supported VLANs: 1,000
-
MAC Address Table: 16,000 entries
-
Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
-
Layer 2 Features: LACP, STP, RSTP, IGMP Snooping, QoS, Port Mirroring, Jumbo Frames
-
PoE Ports: 16 PoE++ ports, 8 PoE+ ports
-
PoE Power Budget: 400W
-
Power Consumption: 50W (excluding PoE), 450W (including PoE)
-
Power Supply: Internal AC/DC, 550W
-
Form Factor: Rack mount (1U)
-
LCM Display: 1.3" touchscreen
-
Operating Temperature: -5°C to 40°C (23°F to 104°F)
-
Operating Humidity: 10% to 90% non-condensing
-
Certifications: CE, FCC, IC
-
Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
-
Weight: 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with brackets
