[properties]
| Properties |
USW-48-POE |
| Description |
USW-48-PoE 48 RJ45 ports with 4 SFP ports |
| Product Family |
Ubiquiti UniFi Switch |
| Product Type |
Switch |
| Overview |
(32) Gigabit RJ45 ports with 802.3af/at
• (16) Gigabit RJ45 ports
• (4) 1G SFP ports
• 1U Rackmountable (hardware included) |
[/properties] [specifications]
| Specifications |
USW-48-POE |
| Dimensions |
442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72") |
Weight
With Rackmount Brackets |
4.52 kg (9.97 lb)
4.61 kg (10.16 lb) |
Interfaces
Networking
Management |
(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports
Ethernet In-Band |
|
|
| Power Method |
100-240VAC, 50/60 Hz, Universal Input |
| Power Supply |
AC/DC, Internal, 240W |
| Voltage Range |
100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) |
45W |
LEDs
RJ45 Data Ports
SFP Data Ports |
PoE; Speed/Link/Activity
Link/Activity |
| ESD/EMP Protection |
Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration |
ETSI300-019-1.4 Standard |
| Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Operating Humidity |
10 - 90% Noncondensing |
| Certifications |
CE, FCC, IC |
| PoE |
|
| Total Available PoE |
195W |
PoE Interfaces
Ports 1-32 |
PoE+ IEEE 802.3af/at
(Pins 1, 2+; 3, 6-) |
Max. PoE Wattage per Port by PSE
802.3at |
32W |
| Voltage Range 802.3at Mode |
44-57V |
| Voltage Range 802.3at Mode |
50-57V |
[/specifications] [accesories] [/accesories]

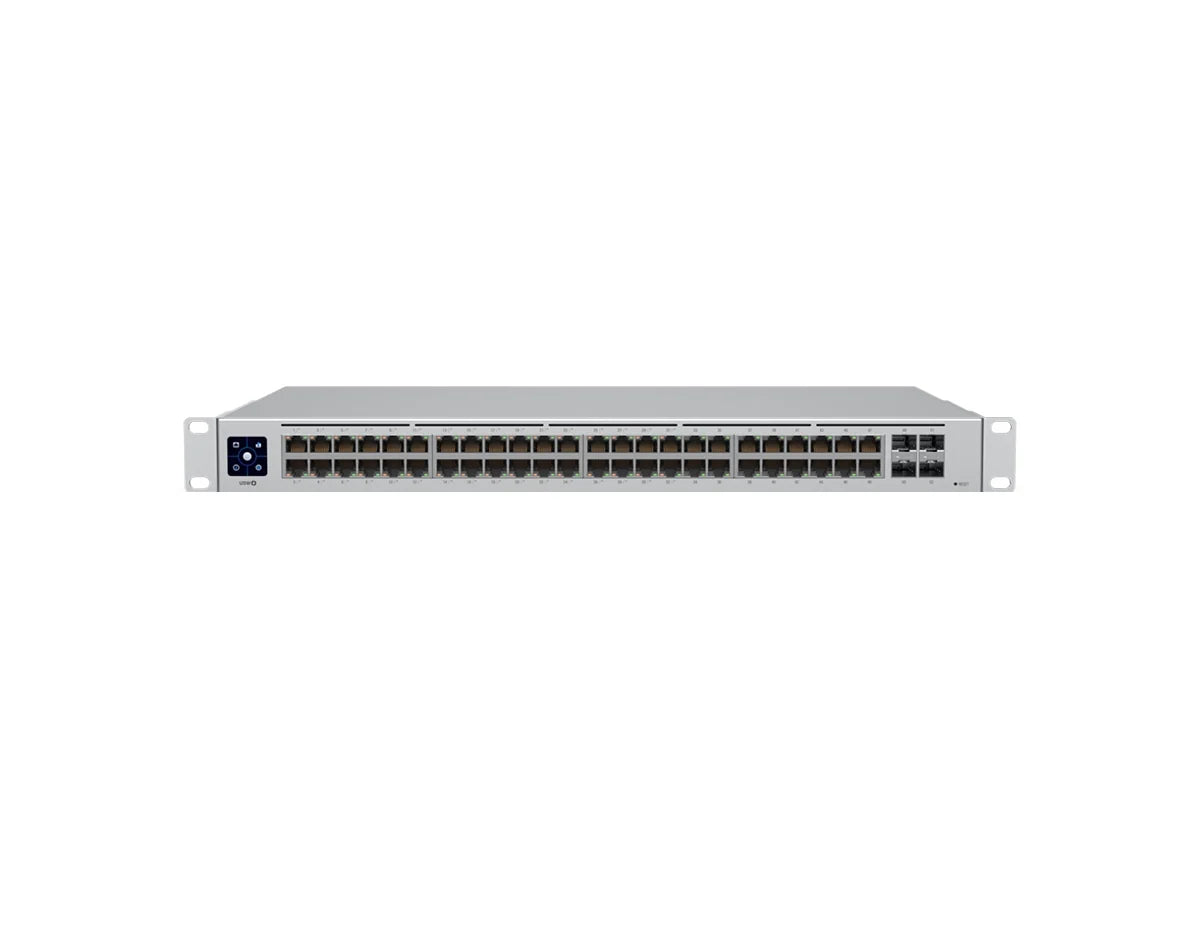

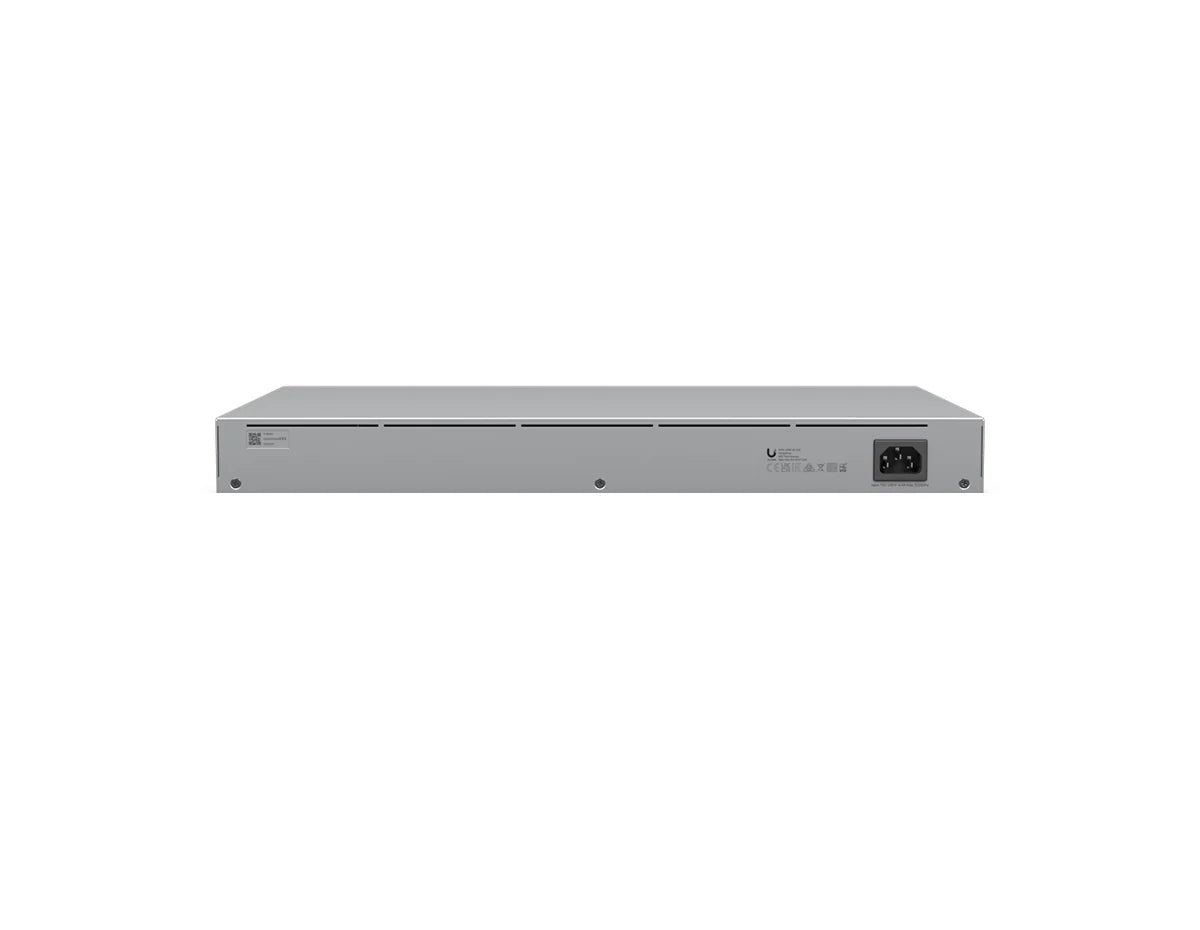

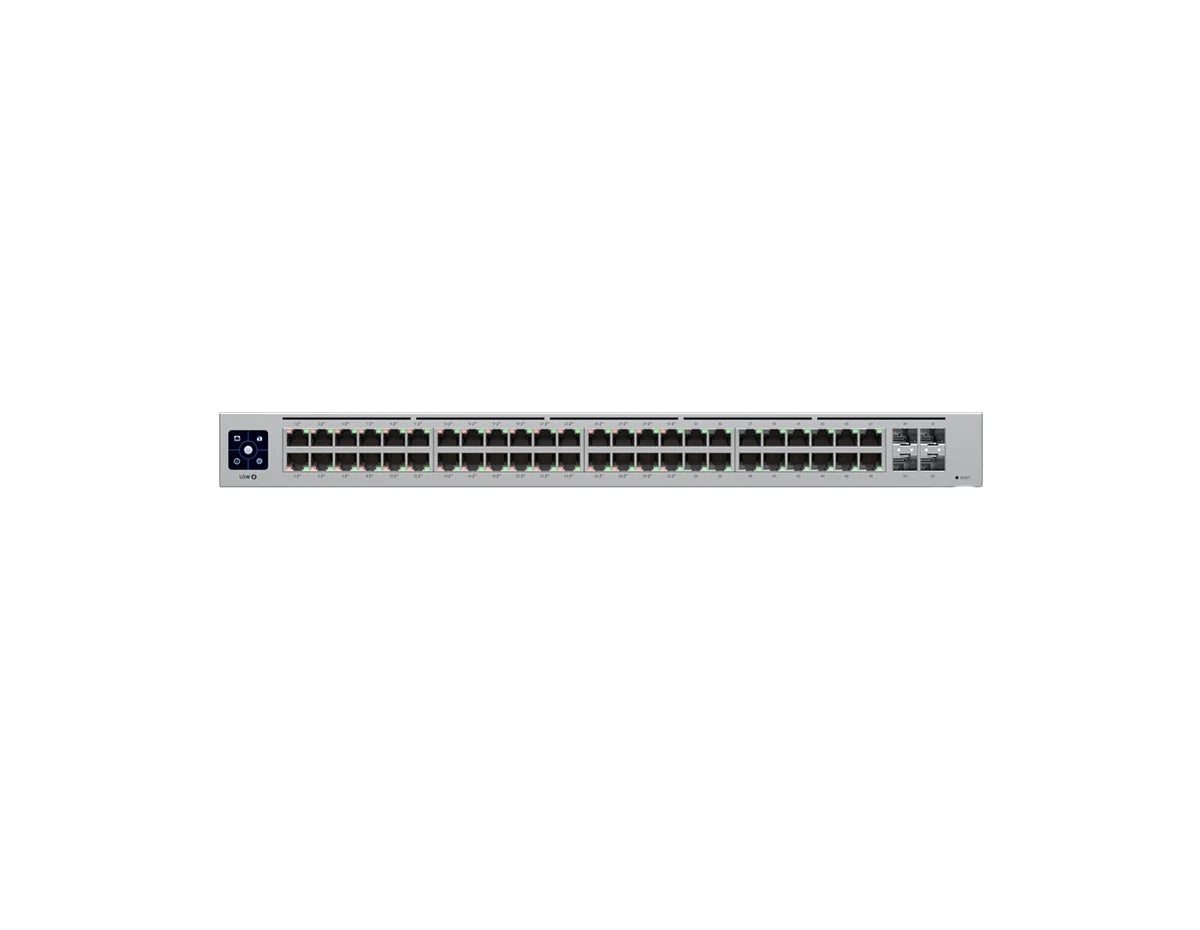

Ubiquiti UniFi USW-48-POE Switch
The USW-48-PoE is a customizable Gigabit Layer 2 switch equipped with 48 Gigabit Ethernet ports, which includes 32 autosensing 802.3at PoE+ ports, and 4 SFP ports. This switch offers Gigabit PoE connections for RJ45 Ethernet devices and Gigabit fiber uplink choices for enterprise network connectivity. Additionally, the USW-48-PoE is equipped with a 1.3" touch LCM display to provide status information.
Quick Specs:
-
32x Gigabit RJ45 ports with 802.3af/at
-
16x Gigabit RJ45 ports
-
4x 1G SFP ports
-
1U Rackmountable (hardware included)
Please see the related tabs for the USW-48-PoE datasheet and compatible accessories.
