| Product Name |
Ubiquiti USW-16-POE Switch |
| Product Description |
16-port Gigabit Layer 2 switch with 8 PoE+ ports and 2 SFP ports, featuring a fanless design and 1.3" touch LCM for status monitoring. |
| Compatibility |
UniFi Network Controller |
| Ports |
16 Gigabit RJ45 ports (8 with 802.3af/at PoE+), 2 SFP ports |
| Data Transfer Rate |
1 Gbps per port |
| Form Factor |
1U Rackmountable |
| Compliances |
CE, FCC, IC |
| Management Interface |
Ethernet In-Band |
| Forwarding Rate |
26.78 Mpps |
| Power Method |
Universal input, 100—240V AC, 50/60 Hz |
| Power Supply |
AC/DC, internal, 60W |
| Max. Power Consumption |
18W (Excluding PoE output) |
[/properties]
[specifications]
| Total Non-Blocking Throughput |
18 Gbps |
| Switching Capacity |
36 Gbps |
| Total Available PoE |
42W |
| Max. PoE Wattage per Port |
32W |
| Operating Temperature Range |
-5 to 40° C (23 to 104° F) |
| Operating Humidity Range |
10 to 90% noncondensing |
| Dimensions (W x D x H) |
442 x 200 x 44 mm (17.4 x 7.9 x 1.7 inches) |
| Weight |
2.8 kg (6.2 lbs) without mounting brackets; 2.9 kg (6.4 lbs) with mounting brackets |
| Certifications |
CE, FCC, IC |
[/specifications]

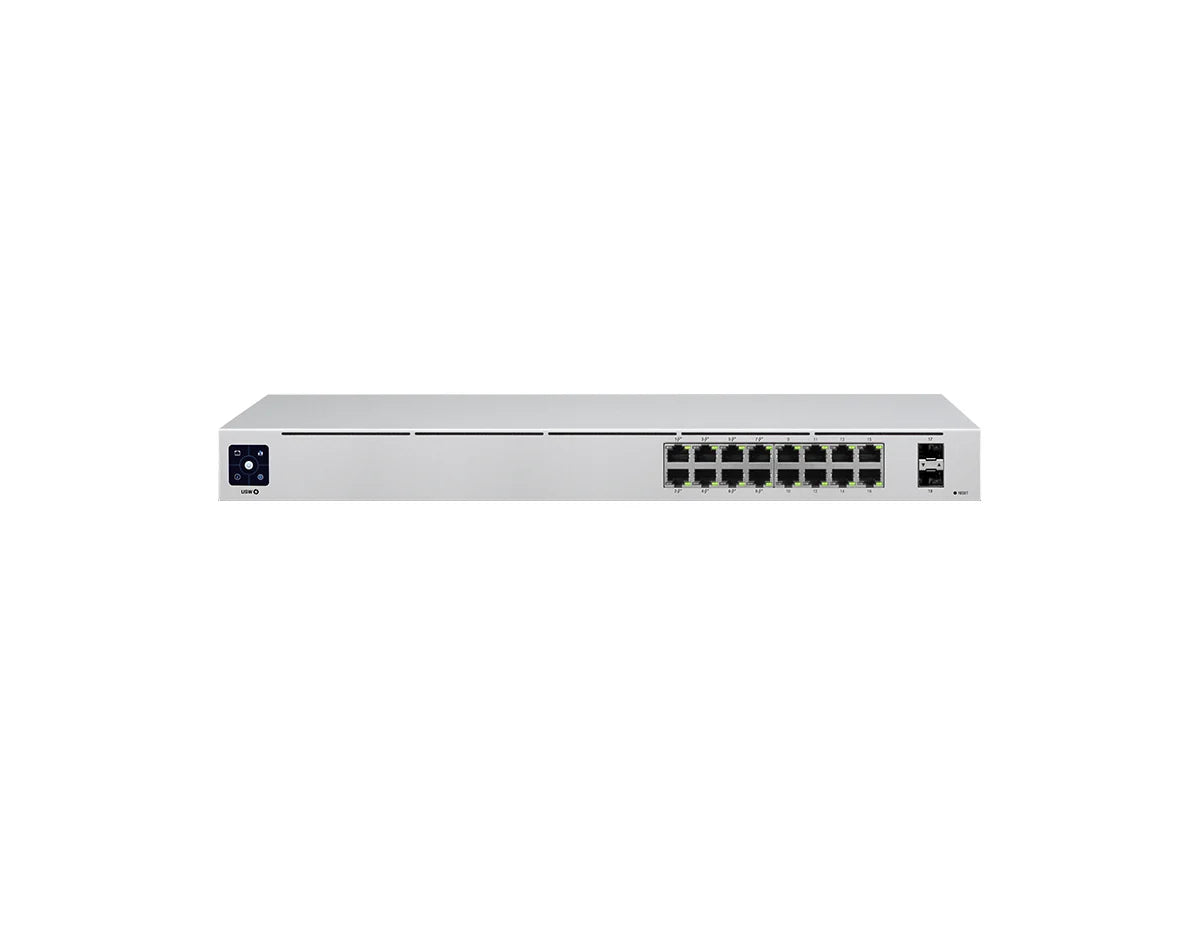

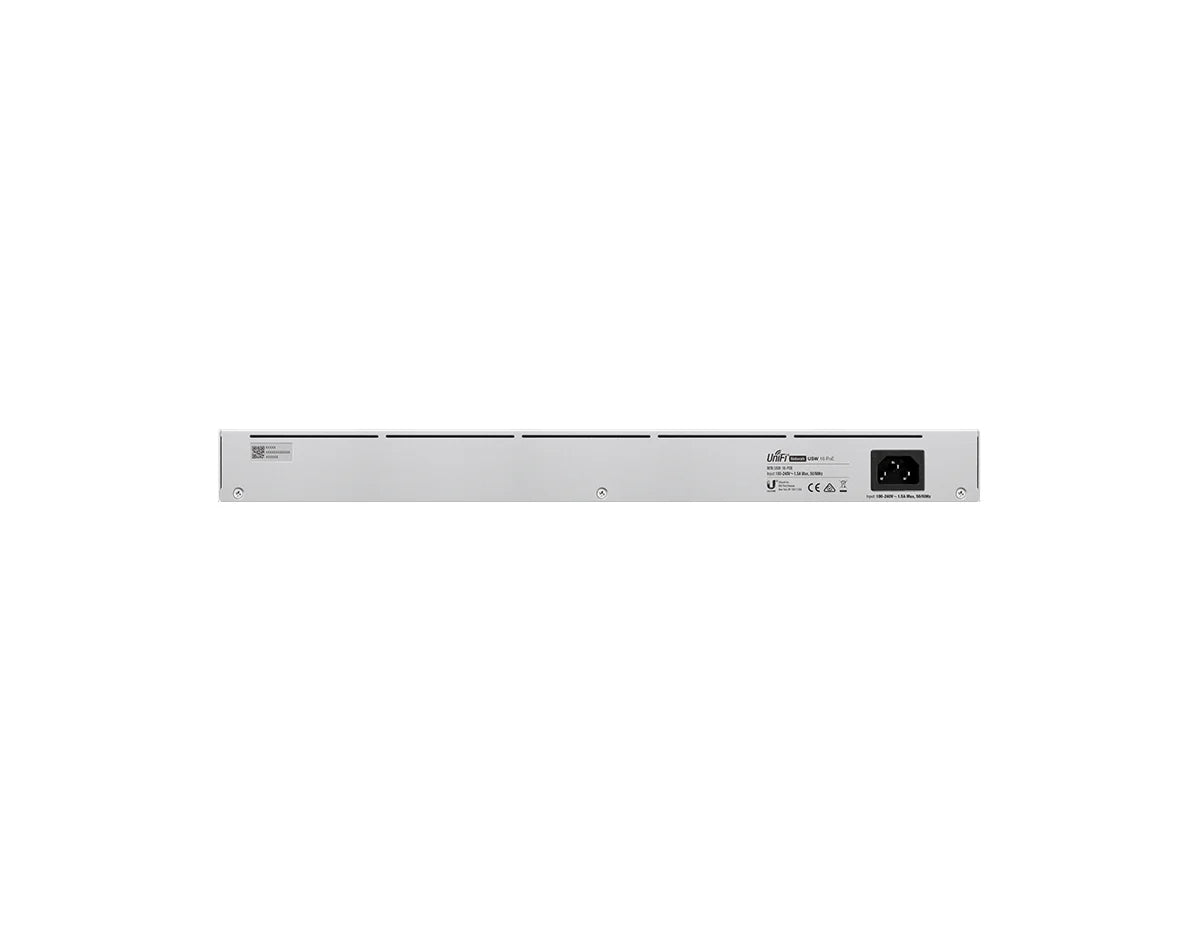

Ubiquiti USW-16-POE Switch
The USW-16-PoE is a customizable Gigabit Layer 2 switch equipped with 16 Gigabit Ethernet ports, comprising eight auto-sensing 802.3at PoE+ ports and two SFP ports. This switch facilitates Gigabit PoE connections for RJ45 Ethernet devices and offers Gigabit fiber uplink alternatives for enterprise networks. Notably, the USW-16-PoE is integrated with a 1.3" touch LCM to furnish status updates. Its compact fanless design, with a depth of 7.9", allows for convenient installation in an SOHO rack cabinet.
Quick Specs:
-
8x Gigabit RJ45 ports with 802.3af/at
-
8x Gigabit RJ45 ports
-
2x 1G SFP ports
-
1U Rackmountable (hardware included)
Please see the related tabs for the USW-16-PoE datasheet and compatible accessories.
