[shortdesc]

• Sensor 8MP 1/1.8" CMOS Delivers crisp 2160 x 2160 video at up to 24 fps for high-definition surveillance, Fully compatible with UniFi Protect, enabling smart AI-powered security features, Field of View: H: 180°, V: 180°, D: 180°

[/shortdesc]

[properties]

Optics	UVC-G5-DOME-ULTRA
Sensor	1/2.4" CMOS
Lens	Fixed focal length
View angle	H: 102.4°, V: 54.9°, D: 120.6°
Night mode	Built-in IR LED illumination and IR cut filter
IR distance	20 m (65 ft)
Video
Resolution	4MP 2688 x 1512 (16:9)
Max. frame rate	30 FPS
Image settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor	Dual-core Arm® Cortex®-A7 based chip
Networking interface	10/100 MbE RJ45 port
Max. power consumption	4.2W
Power method	PoE
Supported voltage range	37–57V DC
Button	Factory reset
Mounting	Surface mount
Ambient operating temperature	-20 to 40º C (-4 to 104º F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
Software
Web application	UniFi Protect
Mobile app	UniFi Protect iOS™ and Android™

[/properties]

[specifications]

Video
Resolution	4MP 2160 x 2160 (1:1)
Max. frame rate	24 FPS
Image settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Power supply	5V DC, 0.5A
System
Processor	Quad-core Arm® Cortex®-A53 based chip
Networking interface	GbE RJ45 port
Max. power consumption	12.5W
Power method	PoE
Supported voltage range	37—57V DC
Output power	5V DC, 1A per port
Display	0.96" color display
Button	Factory reset
Mounting	Wall, ceiling mount
Ambient operating temperature	-20 to 40° C (-4 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
Audio
Microphone	Supports optional AI Theta Audio module for two-way audio (sold separately)
Speaker	Supports optional AI Theta Audio module for two-way audio (Sold separately)
Software
UniFi OS application	UniFi Protect
Mobile app	UniFi Protect iOS™ and Android™

[/specifications]

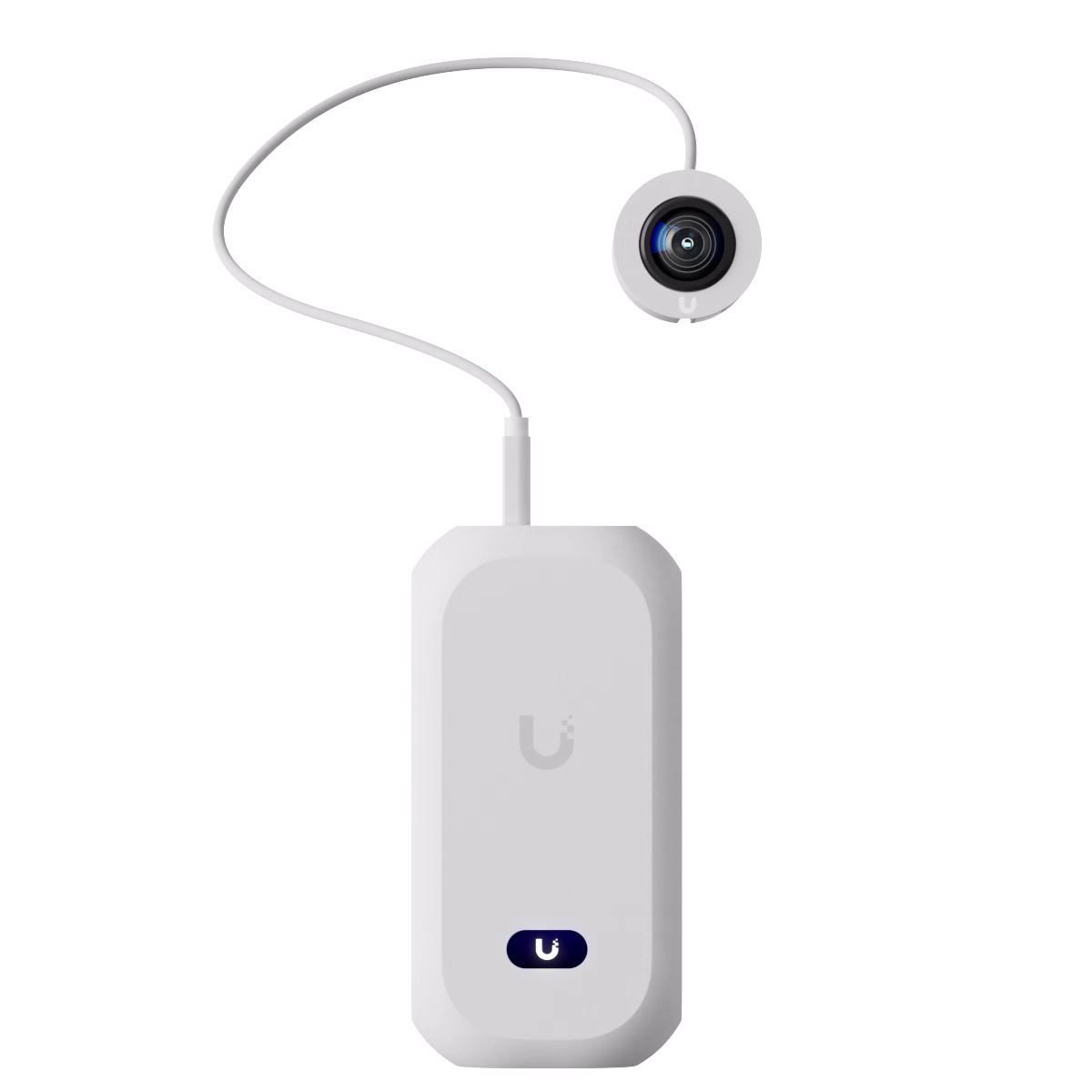

UniFi AI Theta Pro (UVC-AI-Theta-Pro)

The UniFi AI Theta Pro is a cutting-edge 360° surveillance camera designed for immersive coverage in any environment. Equipped with an 8MP 1/1.8" CMOS sensor and fixed focal length lens, it delivers 4MP 2160 x 2160 resolution video at up to 24 fps, providing clear and detailed footage. Its compact design allows for easy wall or ceiling installation, making it ideal for a variety of surveillance applications. The AI-powered camera is fully compatible with the UniFi Protect system, offering seamless integration with existing security setups.

Key Features:

• 360° View: Full 180° horizontal, vertical, and diagonal coverage for complete monitoring of any area.
• 4MP Resolution: Delivers crisp 2160 x 2160 video at up to 24 fps for high-definition surveillance.
• Advanced Image Settings: Offers customizable image settings including brightness, contrast, and white balance for optimal video quality.
• PoE Powered: Supports Power over Ethernet (PoE) for simplified installation and power management.
• AI Integration: Fully compatible with UniFi Protect, enabling smart AI-powered security features.
• Rugged Design: Built with durable materials for long-lasting performance in various environments.

Technical Specifications:

• Sensor: 8MP 1/1.8" CMOS
• Video Resolution: 2160 x 2160
• Lens: Fixed focal length
• Field of View: H: 180°, V: 180°, D: 180°
• Frame Rate: 24 fps
• Power Supply: PoE (37-57V DC)
• Power Consumption: Max 12.5W
• Operating Temperature: -20 to 40°C (-4 to 104°F)
• Dimensions (Hub): 140 x 70 x 38 mm
• Weight (Hub): 330 g (0.73 lbs)
