[properties]
| Properties |
UniFi Dream Router (UDR) |
| Description |
Ubiquiti UDR Router: Harness WiFi 6's four-stream tech, 128 GB storage, 5 GHz, 2.4 GHz bands, multiple ports, and Micro SD slot.
|
| Product Family |
Ubiquiti UniFi |
| Networking Interface |
(4) LAN: GbE RJ45 ports
(1) WAN: GbE RJ45 port |
| PoE interface |
(2) PoE |
| Power Method |
Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz |
| Power Supply |
AC/DC, internal, 50W |
| Maximum Power Consumption |
19.37W (Excluding PoE output) |
| PoE budget |
32W |
| Max. PoE wattage per port by PSE |
15.4W |
| Voltage range PoE mode |
44—57V DC |
| Dimensions |
Ø 110 x 184.1 mm (Ø 4.33 x 7.3") |
| Power Save |
Supported |
| Beamforming |
Supported |
[/properties][specifications]
| Specifications |
UDR |
| Processor |
Dual-core Cortex A53 at 1.35 GHz |
| System Memory |
2 GB |
| On‑Board Flash Storage |
16 GB |
| Internal Storage |
128 GB |
| TX Power |
2.4 GHz: 26 dBm
5 GHz: 26 dBm
|
| Antenna |
(1) Internal, Quad‑Polarity Antenna |
| Antenna Gain |
2.4 GHz: 3.4 dBi
5 GHz: 4.3 dBi |
2.4 GHz MIMO
5 GHz MU-MIMO |
4 x 4
4 x 4 |
2.4 GHz Radio Rate
5 GHz Radio Rate |
600 Mbps
2.4 Gbps |
| Wi‑Fi Standards |
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| VLAN |
802.1Q |
| Concurrent clients |
300+ |
| BSSID |
8 per Radio |
| Operating Temperature |
‑10 to 45° C (14 to 113° F) |
| Operating Humidity |
5 to 95% Noncondensing |
| Certifications |
CE, FCC, IC |
[/specifications]

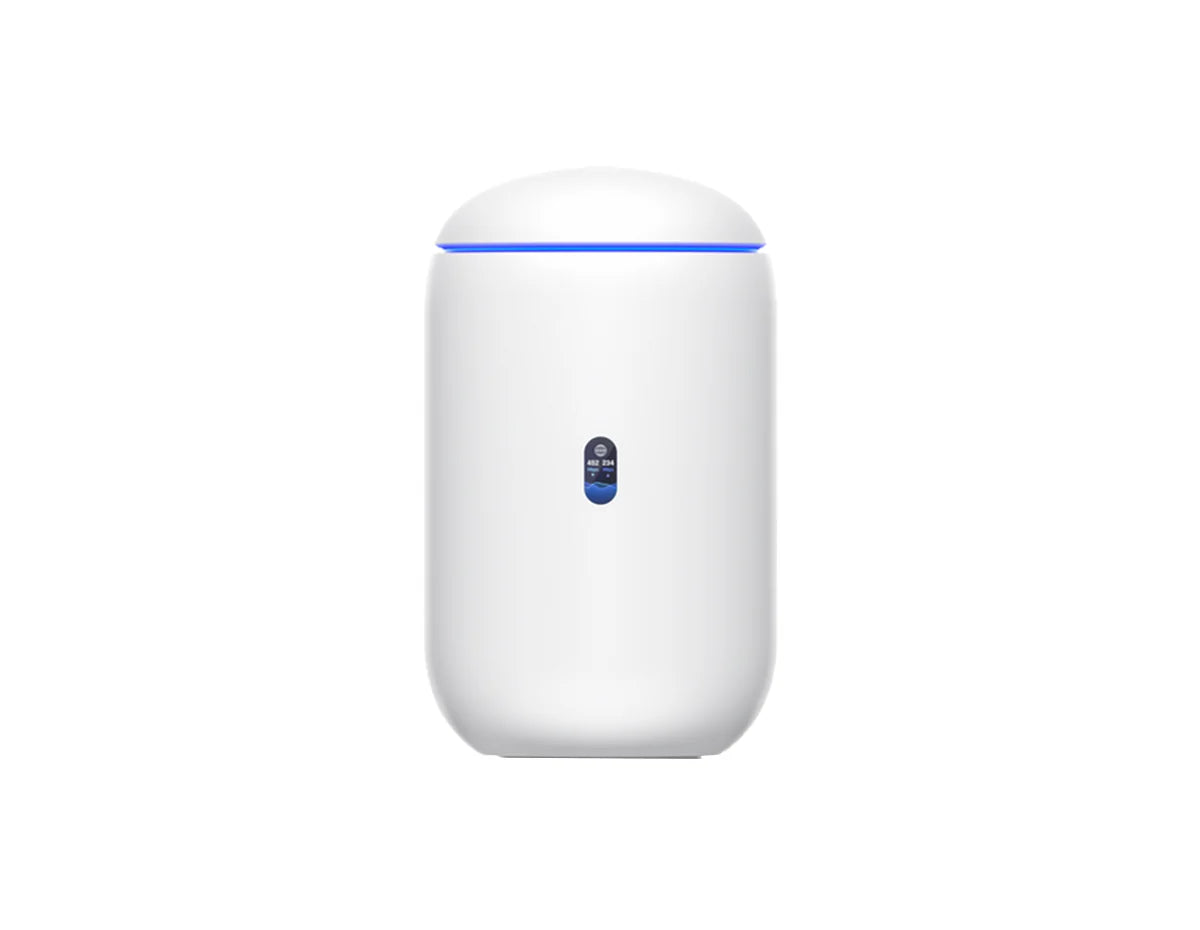

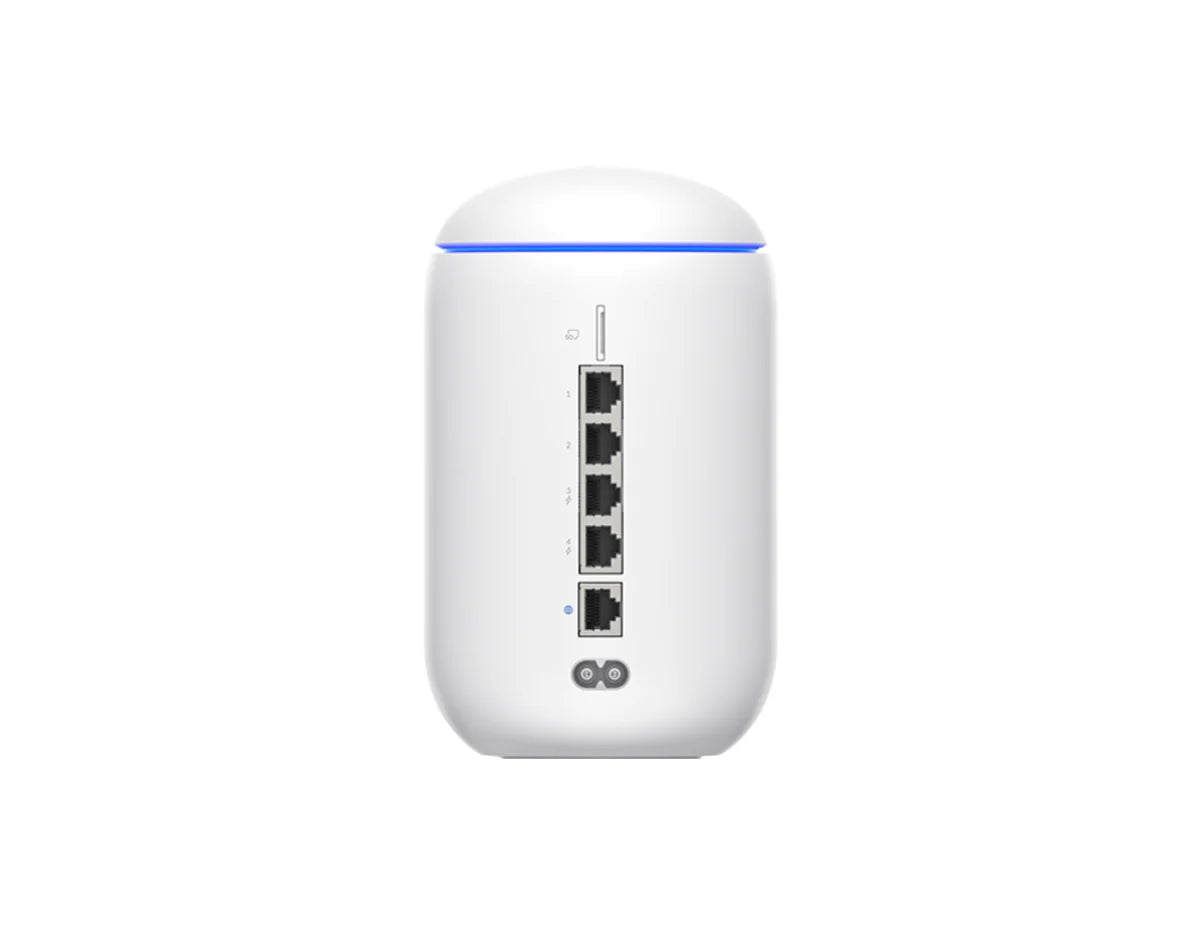

Ubiquiti UDR-US Router
The next-generation Wi-Fi 6 router, the UDR-US, offers unparalleled performance at an unbeatable price. The UDR-US ensures high-quality connectivity for all devices with its advanced 4x4 MU-MIMO and OFDMA technology. Its aggregate wireless throughput rate over its 2.4 and 5 GHz bands is up to 3 Gbps. Additionally, this product has five GbE RJ45 ports, two of which provide PoE to compatible devices. The LCM color screen on the router makes monitoring all the connections on the UDR-US easy.
Quick Specs:
-
Four-stream WiFi 6 Technology
-
128 GB of internal storage
-
4x LAN ports, including 2x 802.3af PoE outputs
-
1x WAN GbE RJ45 port
Please see the related tabs for the UDR-US datasheet and compatible accessories.
