[shortdesc]
- Network management device, GigE, 1U, rack-mountable
[/shortdesc]
[properties]
| Properties |
UniFi Dream Machine PRO |
| Description |
The UniFi Dream Machine Pro is a compact, powerful all-in-one network appliance designed for scalable networking in various settings. It integrates advanced security, dual WAN ports (10G SFP+ and Gigabit RJ45), and UniFi Network software, making it an ideal solution for streamlined network management. |
| Product Family |
Ubiquiti UniFi |
| Networking Interface |
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Port
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port |
| Management Interface |
Ethernet In-Band
(1) Bluetooth BLE |
| Dimensions |
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Maximum Power Consumption |
33W |
| Supported Voltage Range |
100 ‑ 240VAC |
| Power Method |
(1) Universal AC Input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input |
| Power Supply |
Internal AC/DC, 50W |
| ESD/EMP protection |
Air: ± 15 kV, contact: ± 8 kV |
[/properties][specifications]
| Specifications |
UDM PRO |
| IDS/IPS Throughput |
3.5 Gbps |
| Processor |
Arm Cortex‑A57 Quad‑Core at 1.7 GHz |
| System Memory |
4 GB DDR4 |
| On‑Board Flash |
16 GB eMMc |
| Software |
Embedded UniFi® Network Controller Software |
| Operating Temperature |
‑10 to 40° C (14 to 104° F) |
| Certifications |
CE, FCC, IC |
[/specifications]

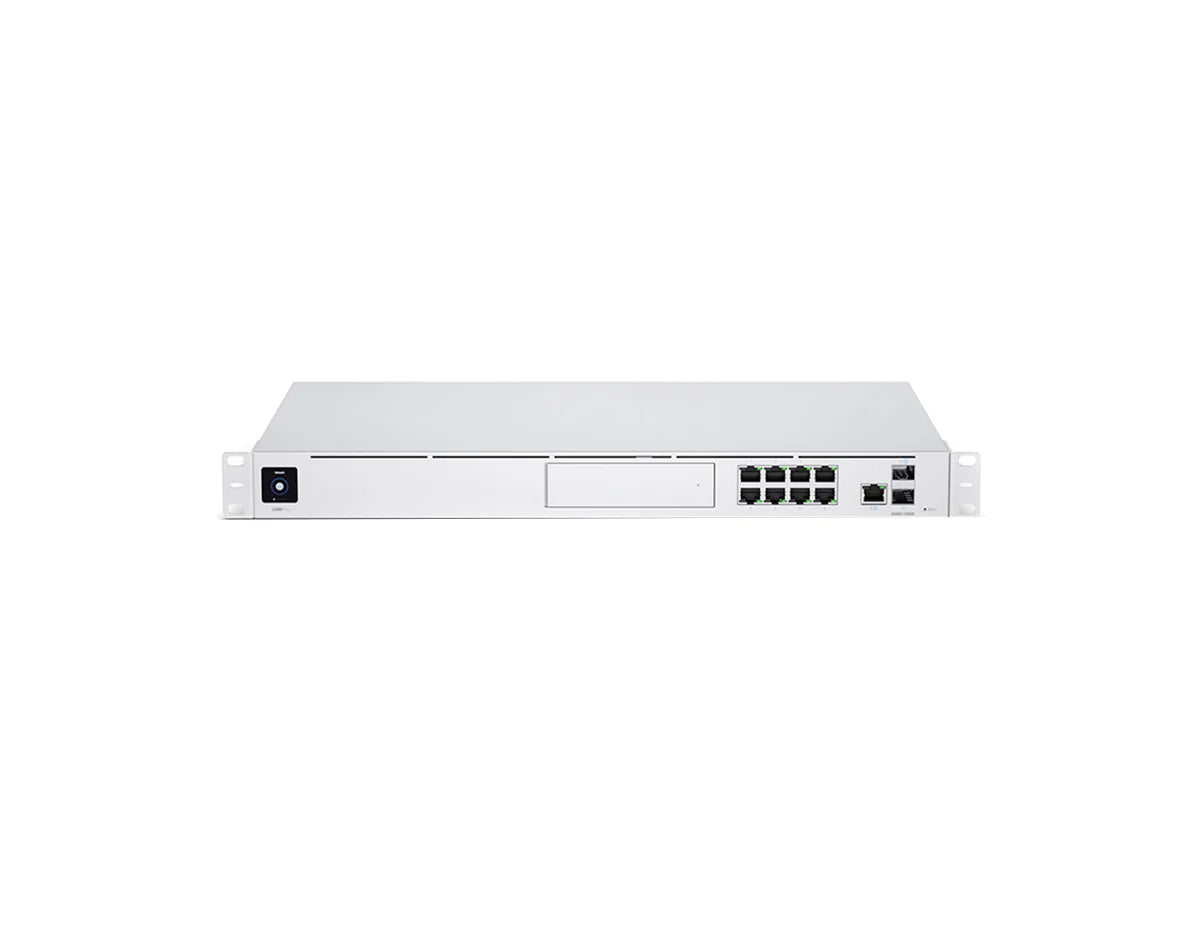

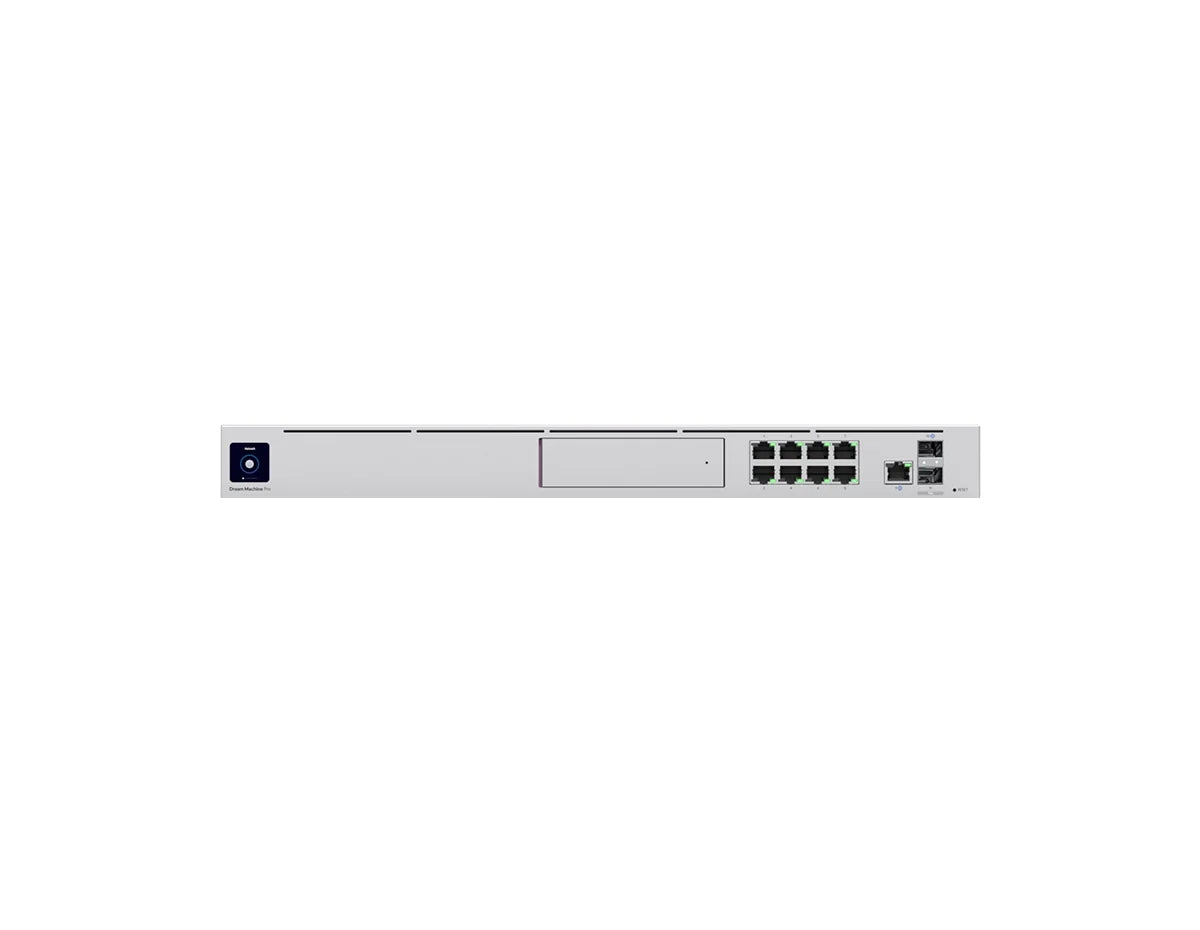

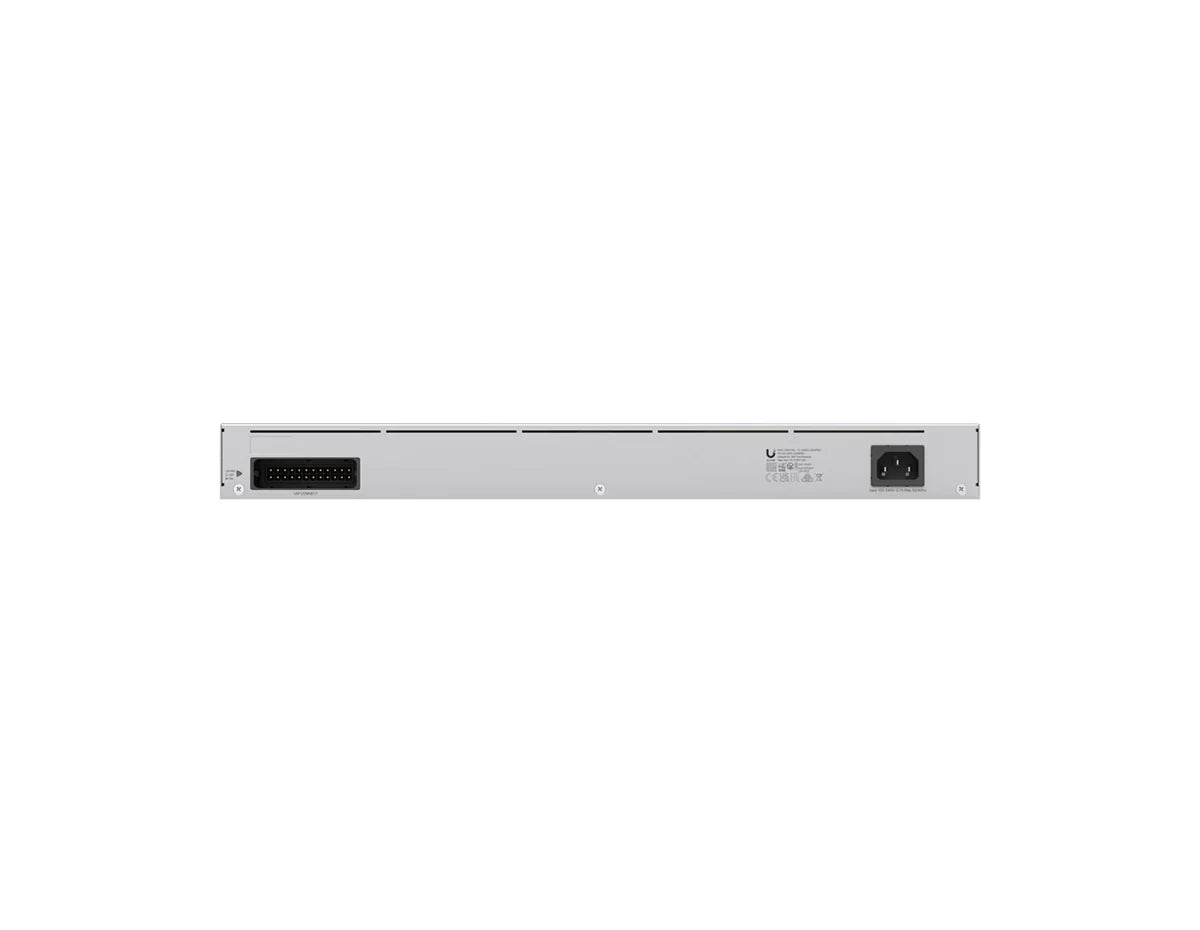

Ubiquiti UDM-PRO
The UDM Pro is a high-quality UniFi OS Console designed for enterprise use, providing a flexible networking solution and a comprehensive platform for multiple applications. The UDM Pro is a 1U-sized, rack-mountable console equipped with a fast 1.7 GHz quad-core processor. It can be utilized as a network appliance and includes a built-in security gateway. This product has 10G SFP+ WAN support, an 8-port Gigabit switch, and a network video recorder compatible with 3.5-inch hard disk drives.
Quick Specs:
-
8x 10/100/1000 RJ45 LAN Ports
-
1x 10/100/1000 RJ45 WAN Port
-
1x 1/10G SFP+ LAN Port / 1x 1/10G SFP+ WAN Port
-
4 GB RAM
Please see the related tabs for the UDM-PRO datasheet and compatible accessories.
