[shortdesc]

• Networking Interface: (48) GbE RJ45 ports, (4) 1/10G SFP+ ports, Switching Capacity: 176 Gbps, Forwarding Rate: 130.944 Mpps

[/shortdesc]

[properties]

Product Name	USW-PRO-48
Description	Ubiquiti Switch Pro 48, a 48-port managed Gigabit switch with advanced Layer 3 features, designed for enterprise networks with high performance and reliability.
Switch Type	Managed Layer 3 switch
Total Ports	48 x Gigabit Ethernet (10/100/1000 Mbps)
Uplink Ports	4 x 10G SFP+ ports
Management	Cloud-based via UniFi Controller
Operating Temperature	-5°C to 45°C (23°F to 113°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Humidity	10% to 90% non-condensing
Dimensions	44.0 cm x 28.5 cm x 4.3 cm (17.3 in x 11.2 in x 1.7 in)
Weight	5.7 kg (12.6 lb)
Power Supply	Internal AC/DC power supply (200W)
Cooling	Active cooling with multiple fans
Usage	Suitable for enterprise, campus, and data center networks
Durability	Designed to handle continuous 24/7 operation with a MTBF of over 1,200,000 hours

[/properties]

[specifications]

Switching Capacity	176 Gbps
Forwarding Rate	130.94 Mpps
VLAN Support	Supports up to 4,094 VLANs
Latency	<1 microsecond for 64-byte packets
Certifications	CE, FCC, IC, RoHS compliant
Environmental Safety	Complies with RoHS 3 (Directive 2015/863/EU) for hazardous substances
EMC Compliance	Meets EN 55032, EN 55024, and FCC Part 15 standards
Power Consumption	Maximum 60W
Stacking Support	Virtual stacking via UniFi Controller
MTBF	>1,200,000 hours
Security Features	802.1X authentication, MAC filtering, DHCP snooping
Management Features	Remote monitoring, firmware updates, and configuration via UniFi Controller
Quality of Service	Supports 802.1p, DSCP, and priority queuing for traffic prioritization
Deployment	Optimized for high-performance networks and multi-gigabit uplink scenarios
Monitoring	Real-time network monitoring and diagnostics through UniFi Controller
Firmware Compatibility	Supports automatic updates via UniFi Controller
Reliability	Features dual redundant power inputs for increased reliability

[/specifications]

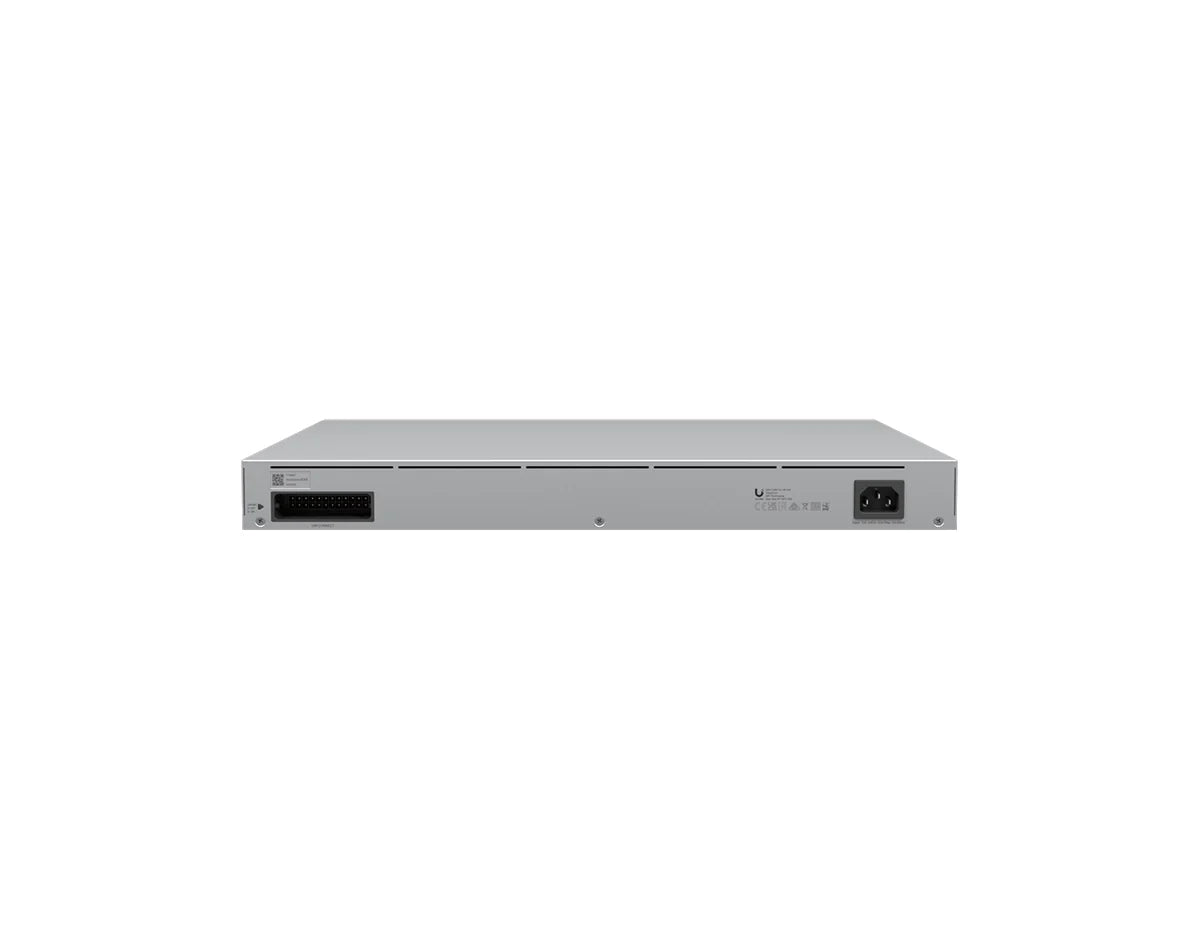

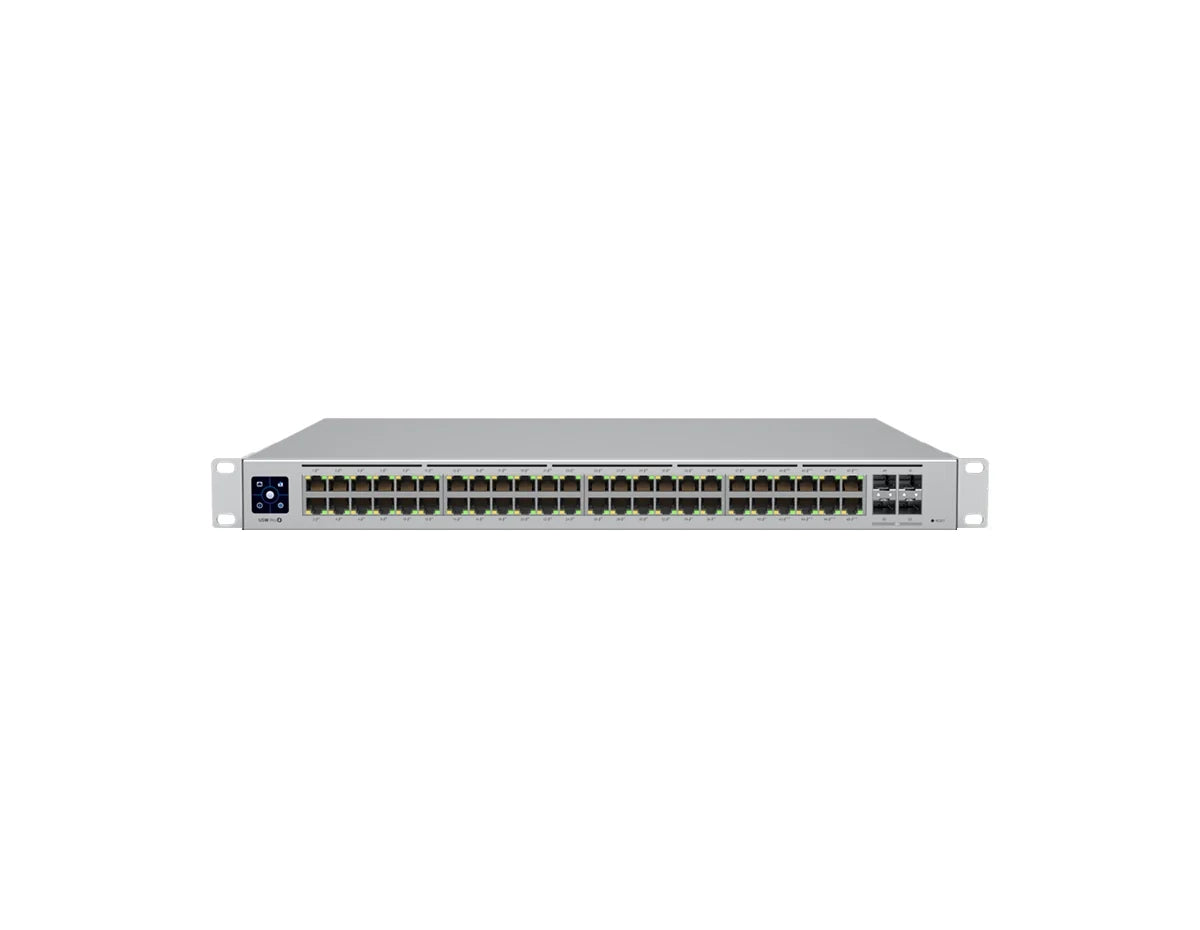

Ubiquiti USW-Pro-48 Switch Pro 48

The Ubiquiti USW-Pro-48 Switch Pro 48 is a highly efficient and versatile switch designed for enterprise networks. With advanced hardware and robust features, the USW-Pro-48 ensures reliable performance and seamless network management.

Quick Specs:

• Dimensions: 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
• Weight: Without mounting brackets: 4 kg (8.8 lb); With mounting brackets: 4.1 kg (9 lb)
• Enclosure Material: SGCC steel
• Management Interface: Ethernet In-band
• Networking Interface: (48) GbE RJ45 ports, (4) 1/10G SFP+ ports
• Total Non-blocking Throughput: 88 Gbps
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.944 Mpps
• Power Method: Universal input, 100—240V AC, 50/60 Hz; USP RPS DC input, 11.5V DC, 5.22A
• Power Supply: AC/DC, internal, 60W
• Supported Voltage Range: 100—240V AC
• Max. Power Consumption: 60W
• ESD/EMP Protection: Air: ±16kV, contact: ±12kV
• LCM Display: (1) 1.3" touchscreen
• Button: Factory reset
• Operating Temperature: -5 to 45° C (23 to 113° F)
• Operating Humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC

System Status:

• Ethernet Speed/link/activity
• SFP+ Speed/link/activity
• RPS Status

Please see the related tabs for the USW-Pro-48 datasheet and compatible accessories.
