[shortdesc]
Four-drive-bay NVR, 10G SFP+ uplink, Gigabit RJ45, 4 GB memory, 1U rackmount design, UniFi Protect management
[/shortdesc]
[properties]
| Brand |
Ubiquiti |
| Model |
Network Video Recorder |
| SKU |
UNVR |
| Product Type |
Network Video Recorder |
| Form Factor |
Rack mount (1U) |
| Storage Capacity |
(4) 2.5/3.5" drive bays |
| Hard Drive Support |
(4) 2.5/3.5" HDD / SSD |
| Networking Interface |
(1) 10G SFP+ port, (1) GbE RJ45 port |
| Management Applications |
UniFi Protect, UniFi Access, UniFi Connect |
| Dimensions |
442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7") |
| Weight |
Without mounting brackets: 5.11 kg (11.27 lb); With mounting brackets: 5.20 kg (11.46 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Operating Temperature |
-5 to 40° C (23 to 104° F) |
[/properties]
[specifications]
| Managed Cameras |
(60) HD, (30) 2K, (18) 4K |
| Managed Access Hubs |
150+ |
| Data Protection |
Supported |
| Vantage Point |
Supported |
| Door Access Support |
Supported |
| Power Redundancy |
Supported |
| Processor |
Quad ARM® Cortex®-A57 cores at 1.7 GHz |
| Memory |
4 GB |
| Management |
Ethernet |
| Maximum Power Budget for Drives |
75W |
| Maximum Power Consumption |
100W |
| Power Method |
(1) Universal AC input, 100-240V AC, 2A Max., 50/60 Hz; (1) USP-RPS DC input, 11.5V DC, 10.43A |
| Power Supply |
AC/DC, internal, 120W |
| Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, SRRC, Anatel: 01924-21-08356 |
[/specifications]
Scalable UniFi Protect Video Storage
The Ubiquiti UNVR is an enterprise network video recorder designed to combine UniFi Protect management, scalable storage, and a four-drive-bay architecture in a compact rackmount enclosure. It provides centralized access to surveillance recordings through the UniFi Protect graphical interface from compatible desktop computers and mobile devices.

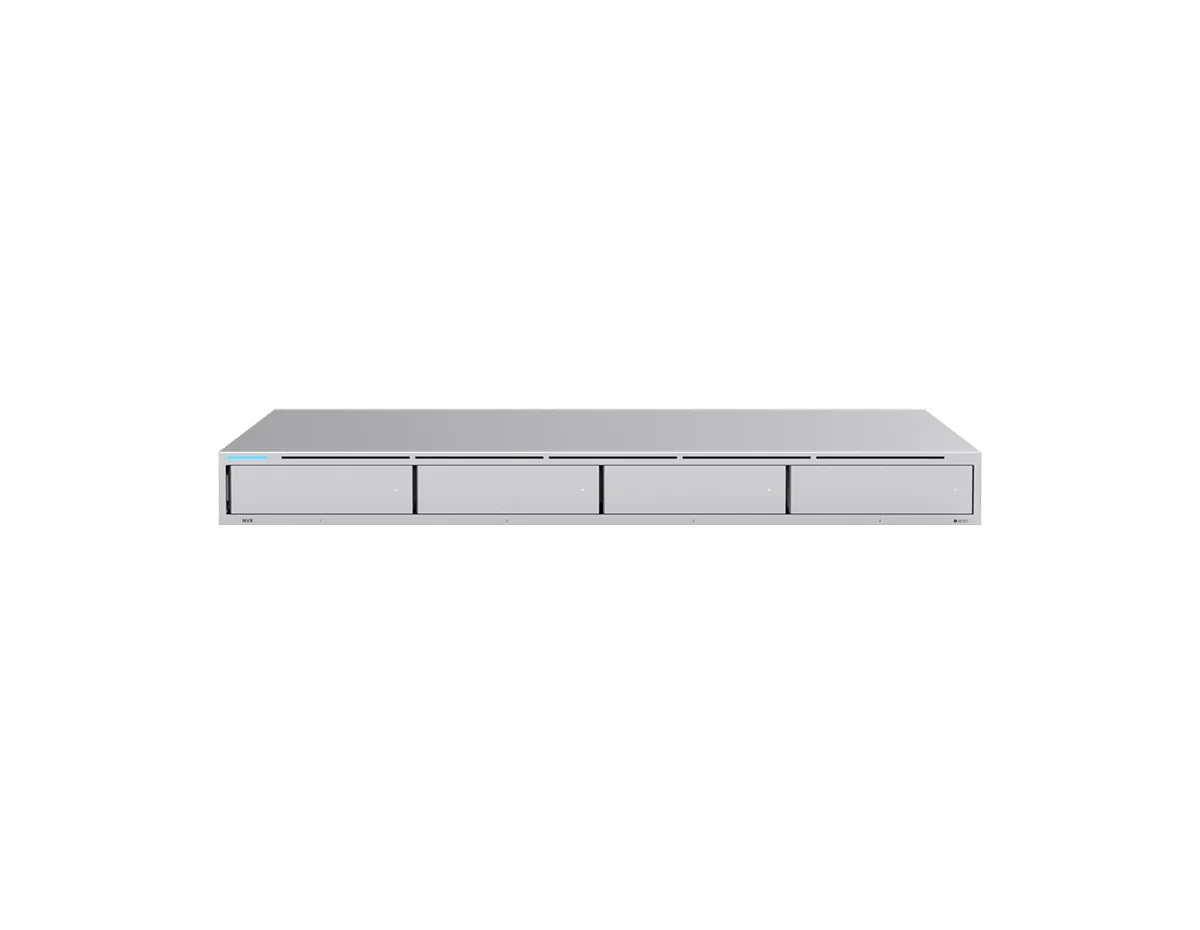

Front-accessible drive bays simplify hard drive installation and maintenance. The recorder also supports both Gigabit Ethernet and 1/10 Gbps SFP+ connectivity, helping it integrate into surveillance networks that require flexible uplink options and centralized video storage.
Key Benefits and Features
- Four front-accessible drive bays for simplified storage installation and maintenance
- Integrated UniFi Protect software for centralized surveillance management
- 1/10 Gbps SFP+ interface for high-speed network connectivity
- Gigabit RJ45 Ethernet interface for standard network integration
- USP-RPS input support for connection to a compatible redundant power system
Ideal Use Cases
- Centralized video recording for business surveillance systems
- UniFi Protect deployments requiring expandable local storage
- Rack-mounted security infrastructure in server and network rooms
- Multi-camera installations requiring desktop and mobile recording access
Technical Specifications
-
Model: UNVR
-
Product Type: UniFi Protect network video recorder
-
Drive Bays: 4
-
Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
-
System Memory: 4 GB
-
On-Board Flash Storage: 8 GB
-
Network Interfaces: 1 x 10/100/1000 Mbps RJ45 and 1 x 1/10 Gbps SFP+
-
Maximum Power Consumption: 100W
-
Power Supply: Internal 120W AC/DC
-
Dimensions: 442.4 x 325 x 43.7 mm
Build a Centralized UniFi Protect Recording Platform
Deploy the Ubiquiti UNVR to consolidate surveillance recording, storage management, and remote access within the UniFi Protect ecosystem. Order the UNVR for a rack-ready network video recording solution with flexible Ethernet connectivity and four accessible drive bays.
