[shortdesc]
-
Power Method: PoE, Throughput Rate: 2.4 GHz: 573.5 Mbps, 5 GHz: 2402 Mbps, Networking Interface: (1) GbE RJ45 port
[/shortdesc]
[properties]
| Properties |
|
|
| SKU |
U6+ |
|
| Description |
Compact ceiling-mounted WiFi 6 access point with 4 spatial streams, ideal for small and medium-sized businesses |
|
| Product Type |
Access Point |
|
| WiFi Standards |
WiFi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
|
| Interface |
1 x GbE RJ45 |
|
| Mounting Options |
Wall, ceiling |
|
| Enclosure |
Polycarbonate, aluminum |
|
| Antenna Gain |
3 dBi (2.4 GHz), 5.4 dBi (5 GHz) |
|
| Power Method |
Properties |
|
|
SKU |
U6+ |
|
Description |
Compact ceiling-mounted WiFi 6 access point with 4 spatial streams, ideal for small and medium-sized businesses |
|
Product Type |
Access Point |
|
WiFi Standards |
WiFi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
|
Interface |
1 x GbE RJ45 |
|
Mounting Options |
Wall, ceiling |
|
Enclosure |
Polycarbonate, aluminum |
|
Antenna Gain |
3 dBi (2.4 GHz), 5.4 dBi (5 GHz) |
|
Power Method |
PoE, 44–57V DC |
[/properties]
[specifications]
| Specifications |
U6+ |
| Maximum Throughput |
2.4 GHz: 573.5 Mbps, 5 GHz: 2.4 Gbps |
| Transmit Power |
23 dBm (2.4 GHz and 5 GHz) |
| MIMO Configuration |
2x2 MU-MIMO |
| Operating Temperature |
-30°C to 60°C (-22°F to 140°F) |
| Operating Humidity |
5 to 95% non-condensing |
| Certifications |
CE, FCC, IC |
| Safety Compliance |
UL 60950-1 |
| Electromagnetic Compatibility |
EN 55032, EN 55024, FCC Part 15 Class B |
| EMC Compliance |
CE Marking, ICES-003 |
| Environmental Safety |
RoHS compliant |
| Weight |
338 g (0.75 lb) |
[/specifications]

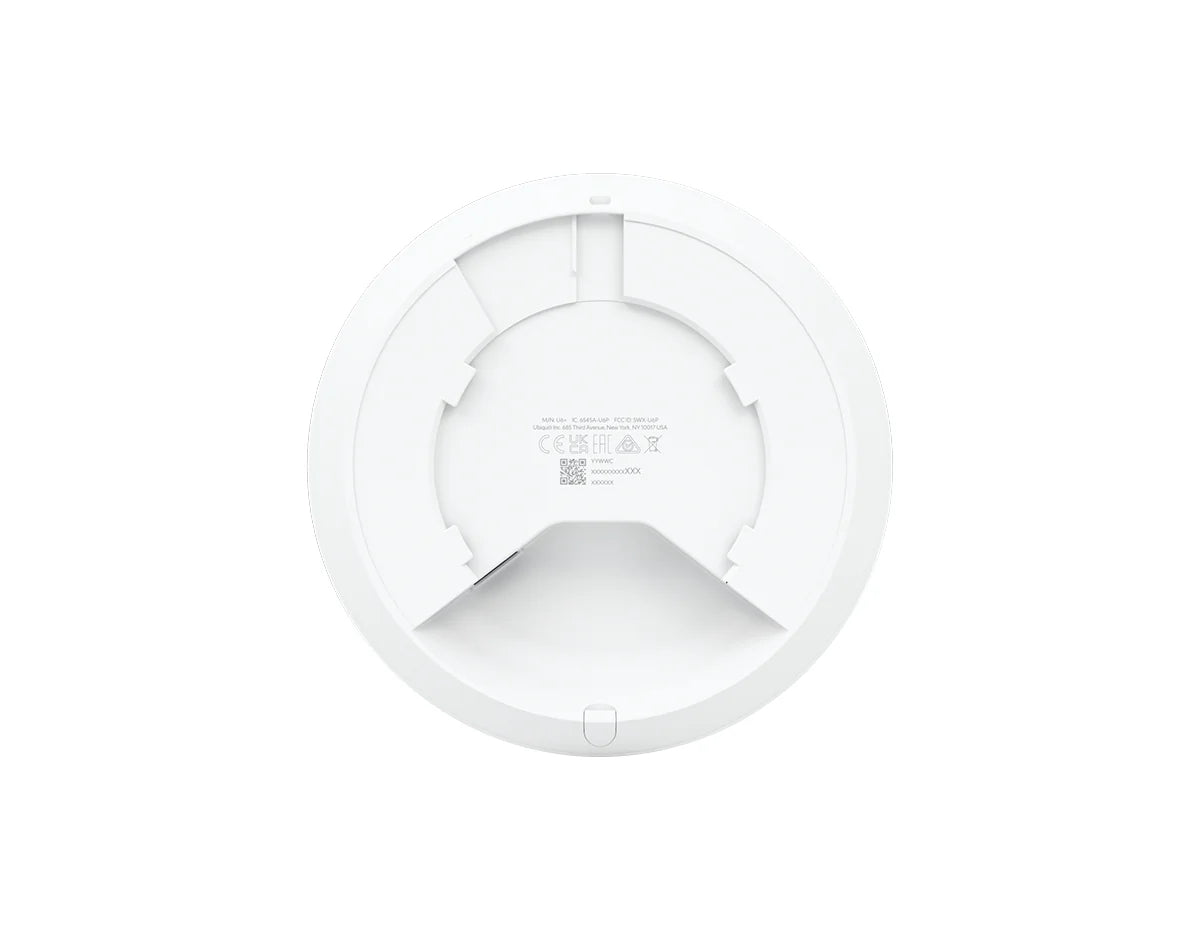

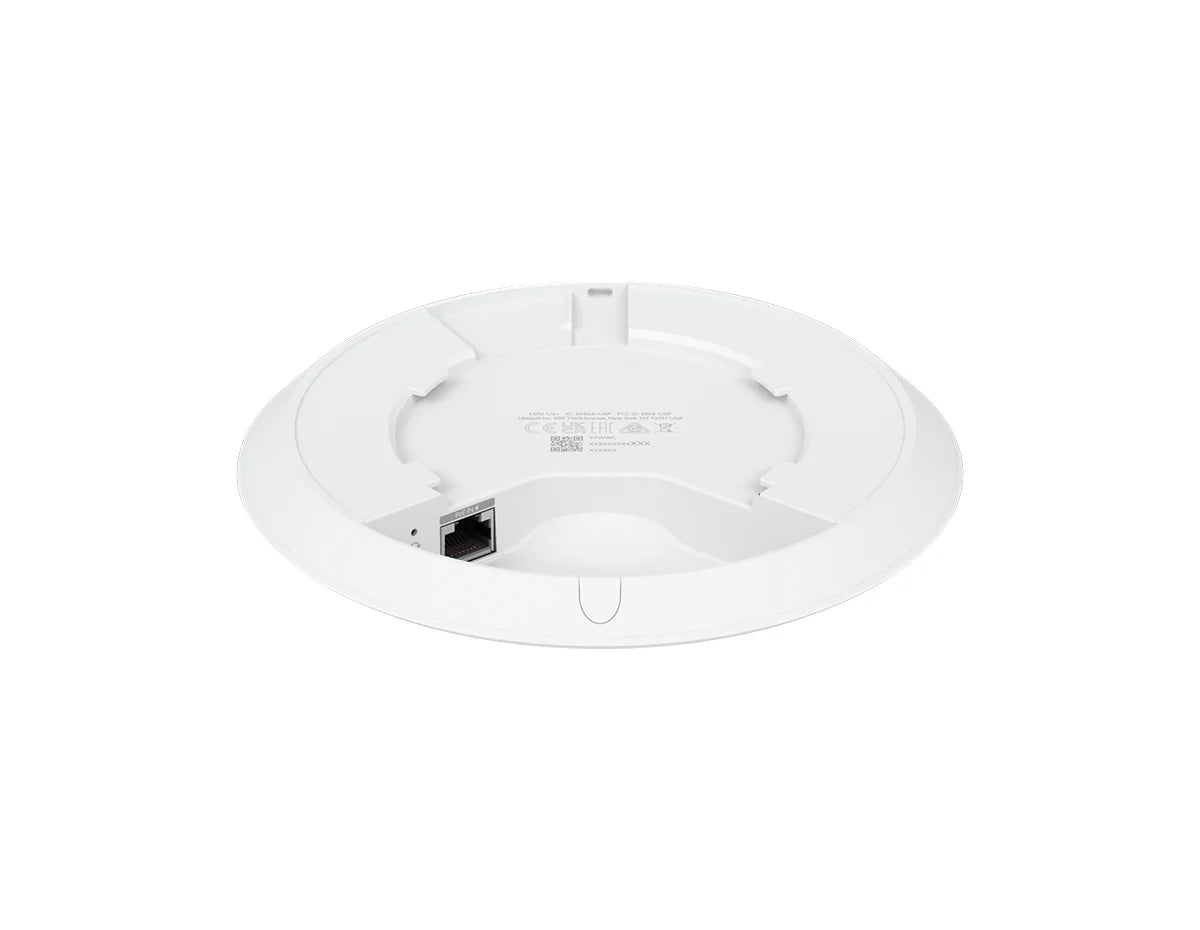

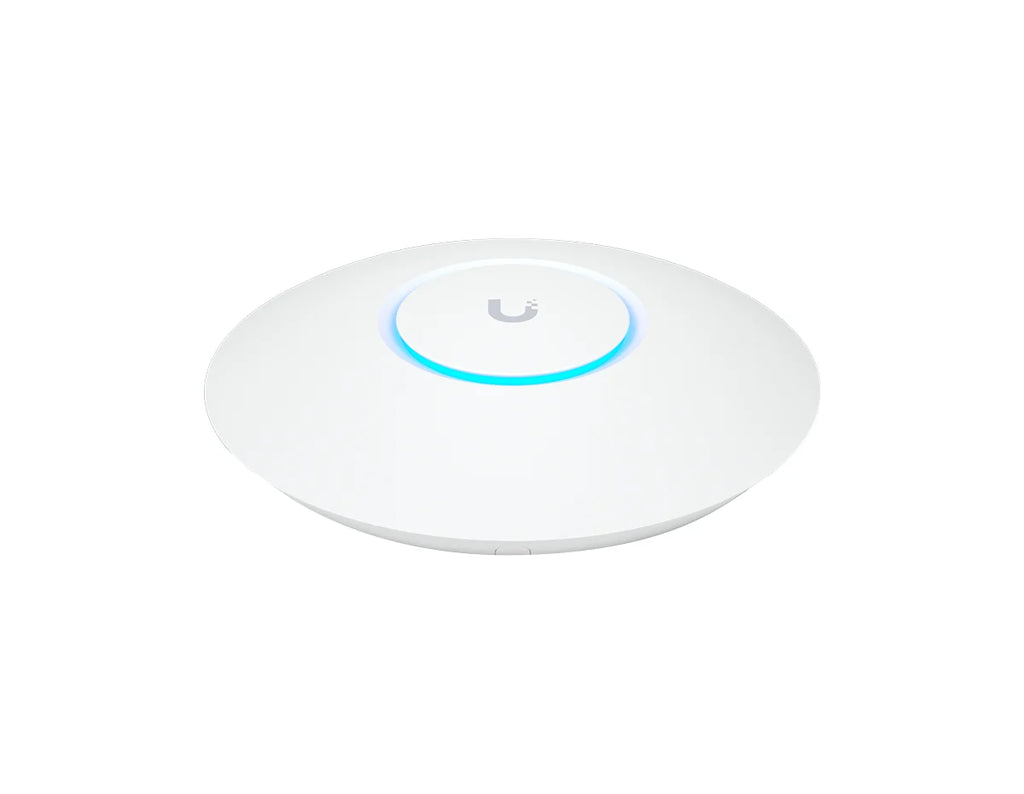

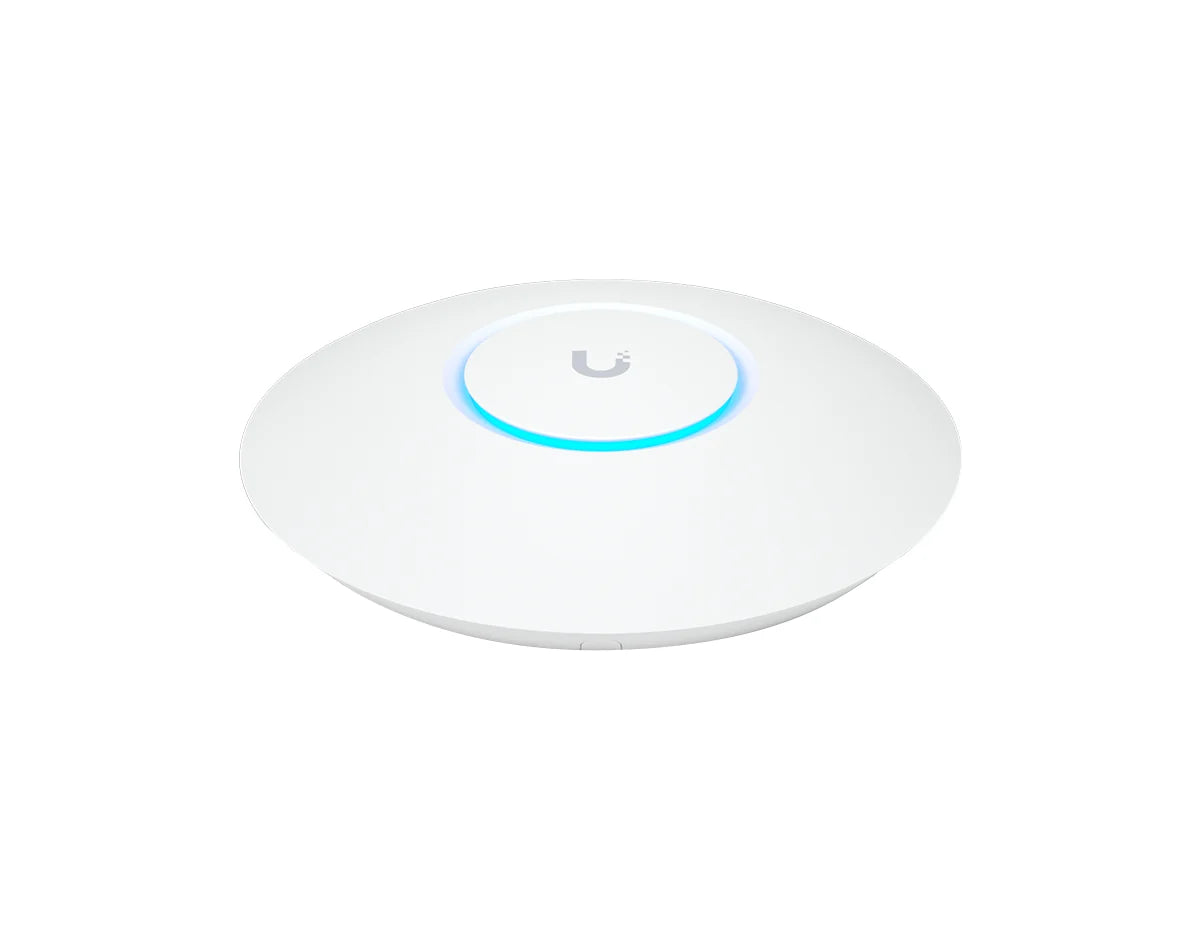

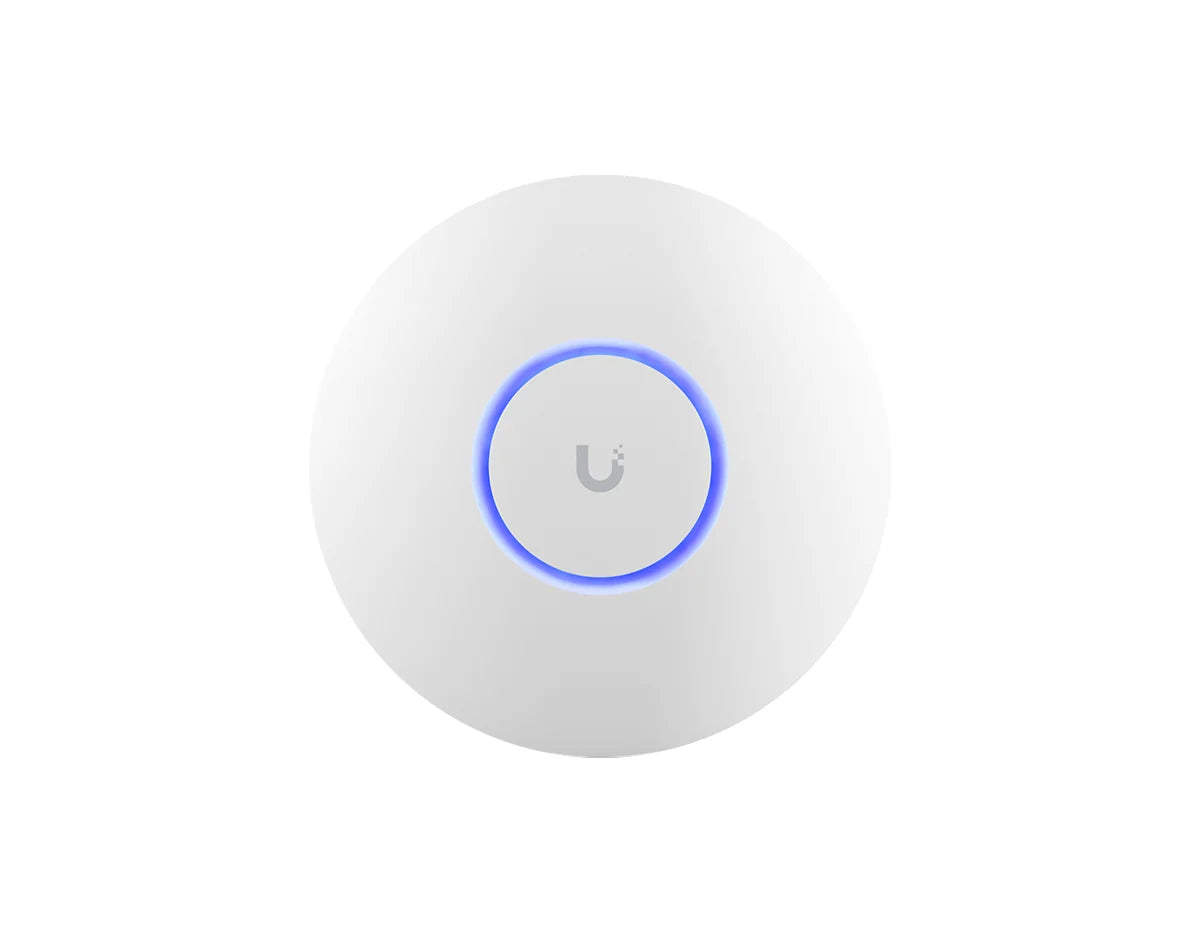

Ubiquiti Networks U6+ Access Point
Overview
The Ubiquiti Networks U6+ Access Point is designed to deliver high-performance Wi-Fi connectivity with support for the latest Wi-Fi 6 standards. It offers dual-band 2.4 GHz and 5 GHz frequencies, PoE power, and a capacity for over 300 concurrent clients, making it ideal for high-density environments.
Specifications
-
Dimensions: 160 x 33 mm (6.3 x 1.3")
-
Weight: Without mount: 338 g (0.75 lb), With mount: 413 g (0.91 lb)
-
Enclosure Materials: Top cover: polycarbonate, Bottom cover: aluminum
-
Mount Materials: ABS, SGCC steel
-
Networking Interface: (1) GbE RJ45 port
-
Management Interface: Ethernet
-
Power Method: PoE
-
Supported Voltage Range: 44–57V DC
-
Max. Power Consumption: 9W
-
Max. TX Power: 2.4 GHz: 23 dBm, 5 GHz: 23 dBm
-
MIMO: 2.4 GHz: 2x2, 5 GHz: 2x2
-
Throughput Rate: 2.4 GHz: 573.5 Mbps, 5 GHz: 2402 Mbps
-
Antenna Gain: 2.4 GHz: 3 dBi, 5 GHz: 5.4 dBi
-
LED: White/blue
-
Button: Factory reset
-
Mounting: Wall/ceiling (included)
-
Operating Temperature: -30 to 60° C (-22 to 140° F)
-
Operating Humidity: 5 to 95% noncondensing
-
Certifications: CE, FCC, IC
-
WiFi Standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
-
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
-
BSSID: 8 per radio
-
VLAN: 802.1Q
-
Advanced QoS: Per-user rate limiting
-
Guest Traffic Isolation: Supported
-
Zero Wait DFS: Not supported
-
Concurrent Clients: 300+
