Overview

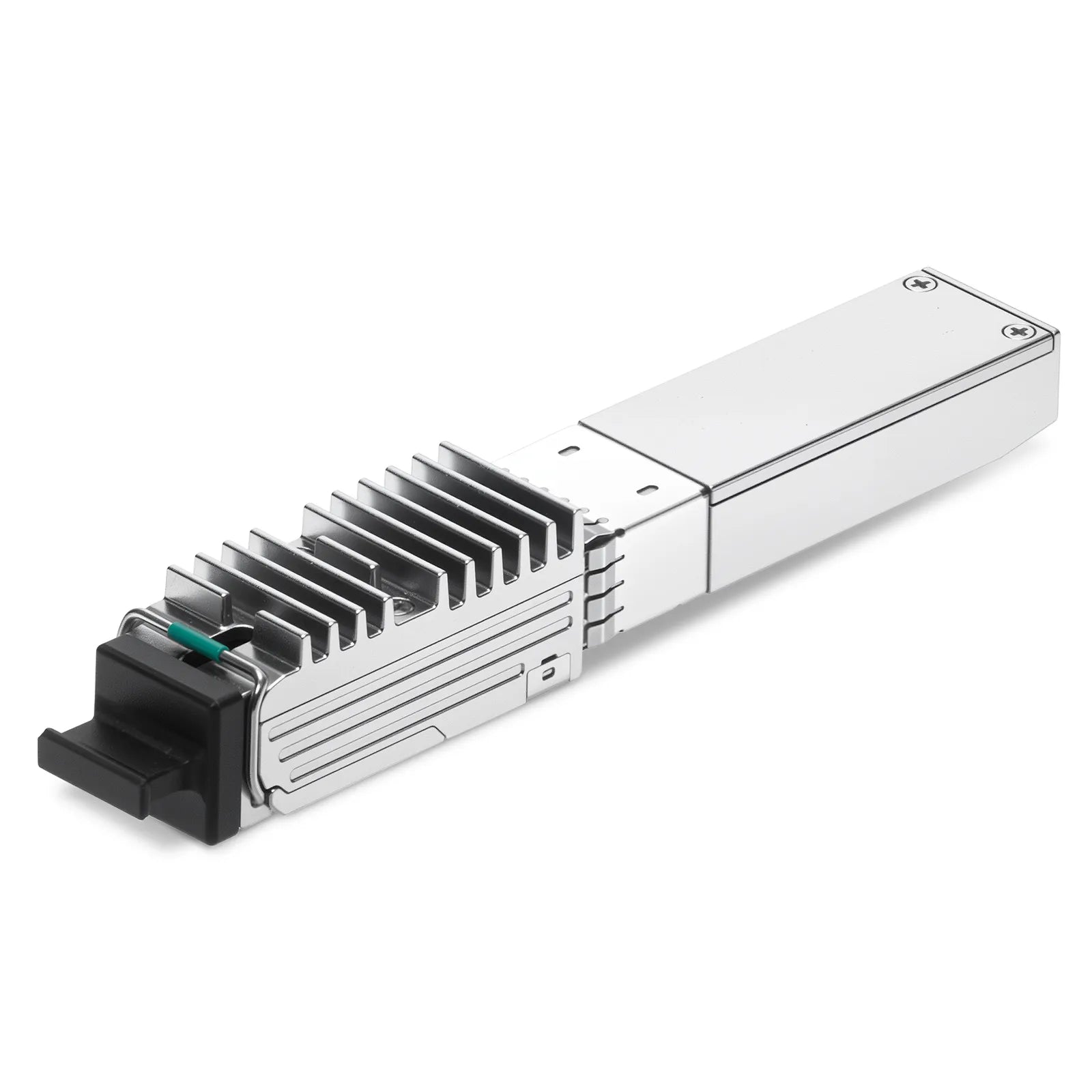

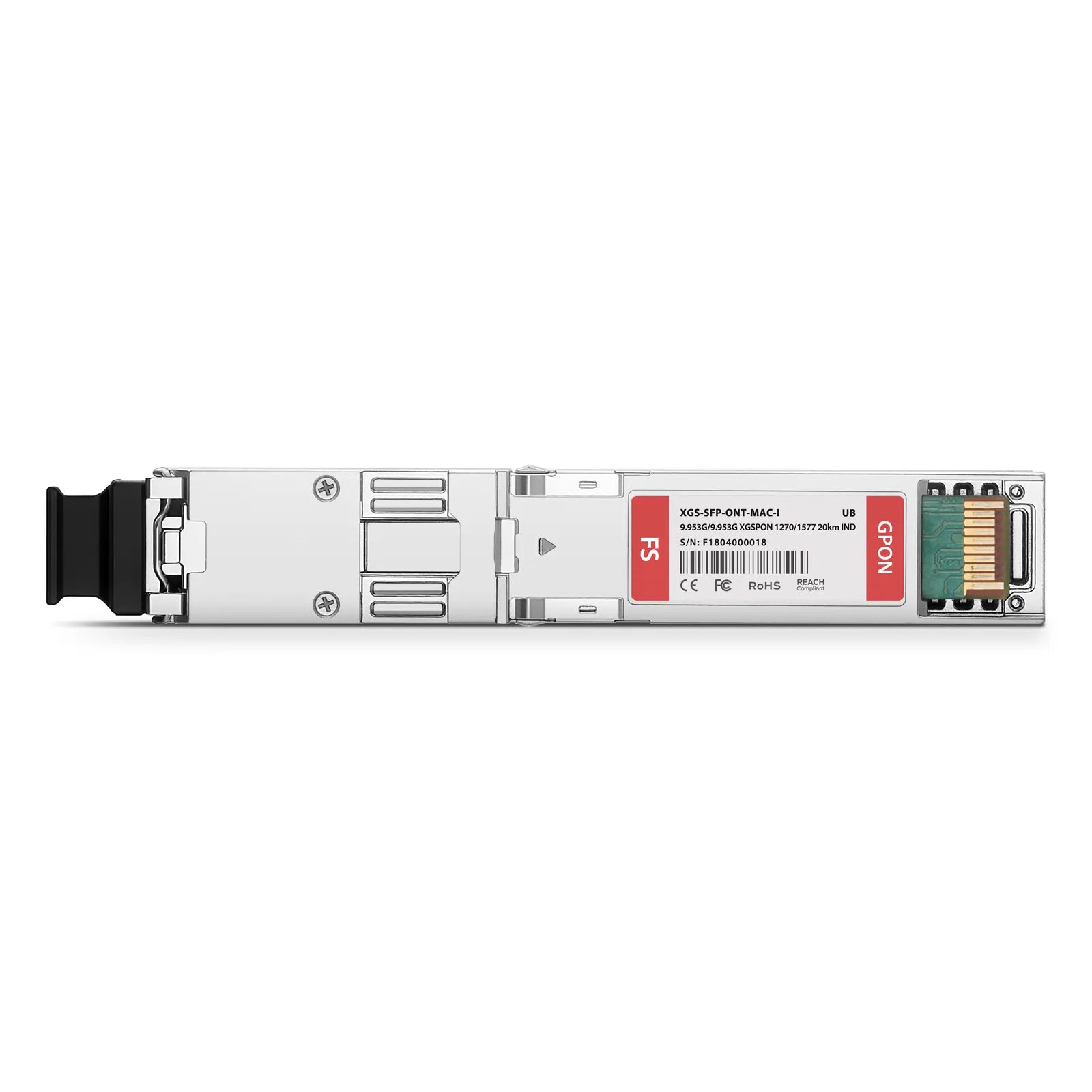

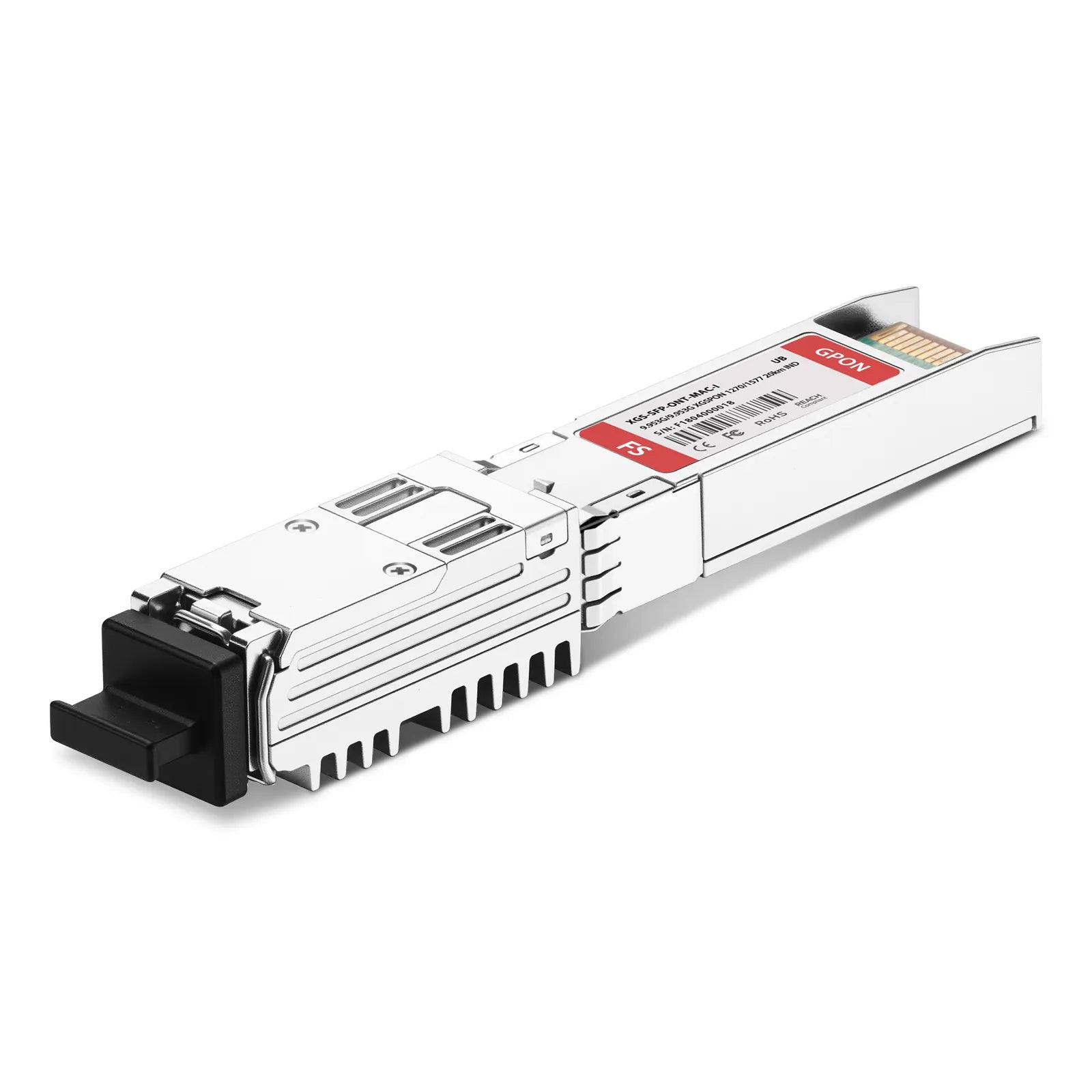

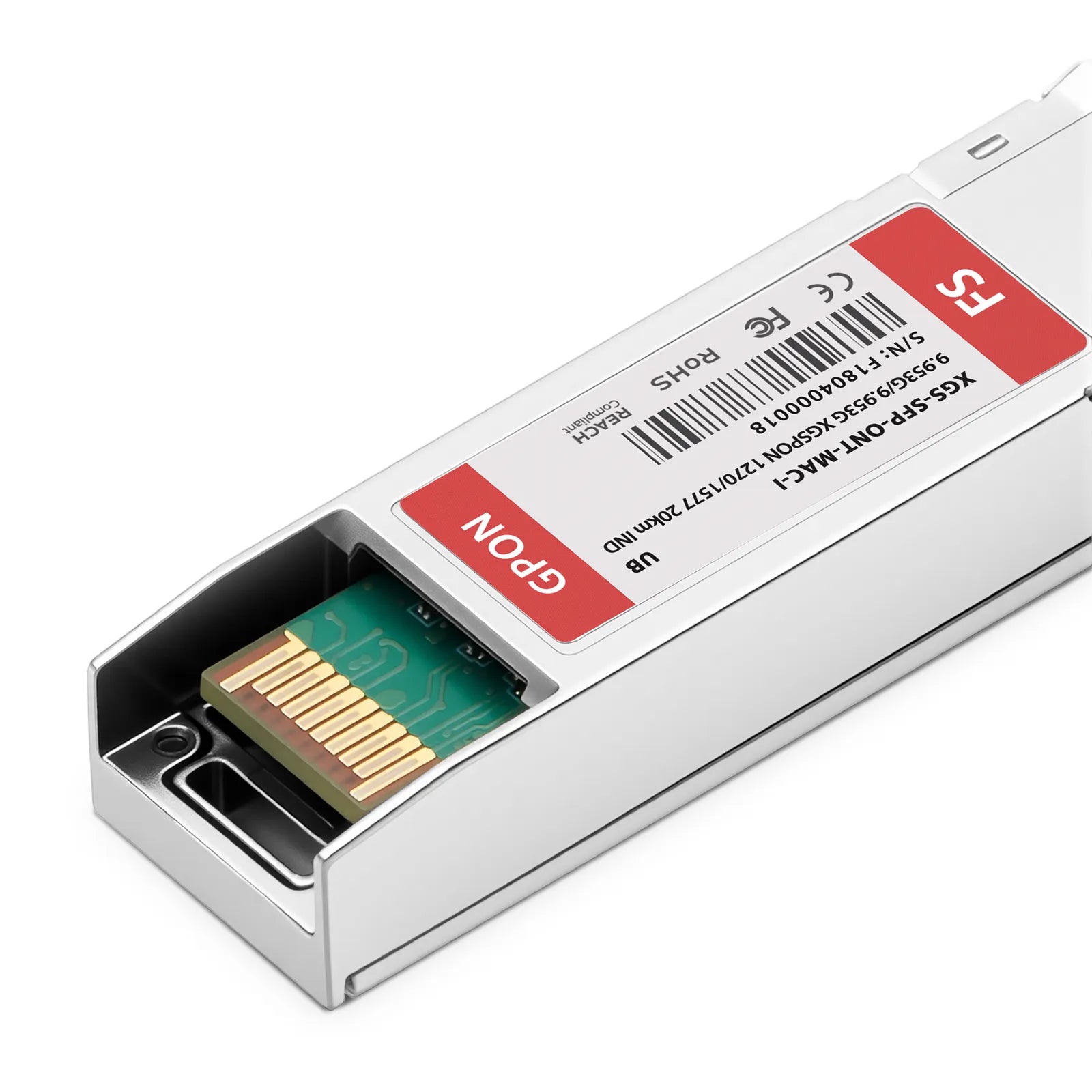

The XGS-SFP-ONT-MAC-I is an SFP+ transceiver module engineered for 10-Gigabit capable symmetric passive optical network (XGS-PON) systems. It utilizes bidirectional transmission over a single-mode optical fiber with an integrated XGSPON MAC and OMCI stack to support full FCAPS management functionality. This module provides a symmetric data rate of 9.953 Gbps for both upstream and downstream traffic, facilitating network connectivity over distances up to 20km.
Key Features
-
Integrated Management Interfaces: Includes both Web GUI and SSH support, allowing for remote network supervision, configuration of key parameters, and maintenance from any location.
-
Industrial-Grade Temperature Range: Operates reliably within an ambient temperature range of -40°C to 85°C, making it suitable for deployment in harsh outdoor environments.
-
Symmetric 10G Data Transmission: Enables a 9.953 Gbps upstream and downstream throughput to meet high-bandwidth requirements in FTTx and wireless backhaul applications.
-
Standard-Compliant Architecture: Fully compliant with ITU-T G.9807.1 and SFP+ MSA standards, ensuring interoperability with standard XGS-PON OLT equipment.
-
TO-Can Hermetic Packaging: Utilizes a TO-can package design to provide airtight protection and efficient heat dissipation for the internal DFB laser and APD receiver components.
Technical Specifications
| Part Number |
XGS-SFP-ONT-MAC-I |
| Form Factor |
SFP+ |
| Data Rate |
9.953G-TX / 9.953G-RX |
| Wavelength |
1270nm-TX / 1577nm-RX |
| Max Distance |
20km |
| Connector |

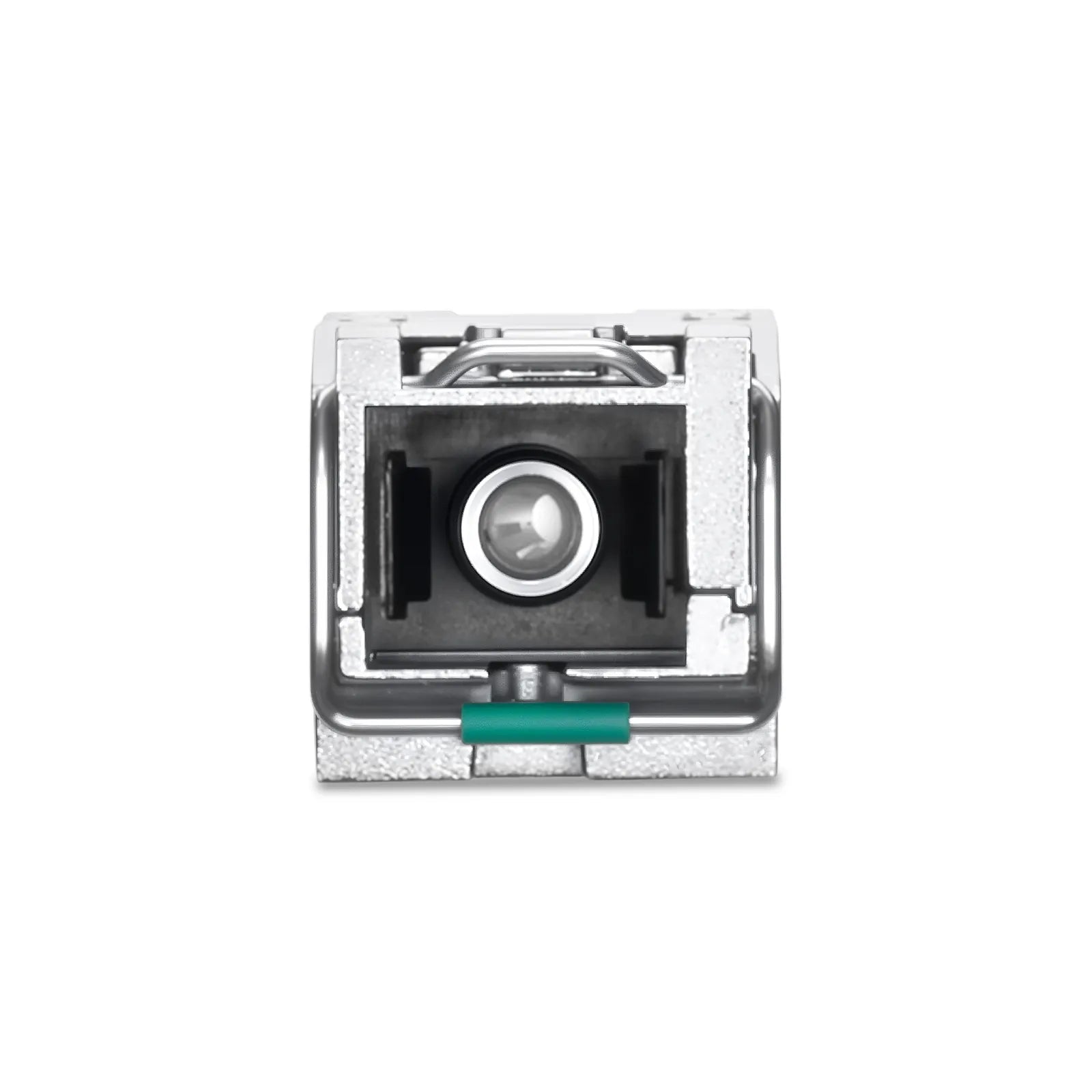

SC/APC Simplex |
| Media |
Single-Mode Fiber (SMF) |
| Transmitter Type |
DFB |
| Receiver Type |
APD |
| TX Power |
4 ~ 9dBm |
| Receiver Sensitivity |
-28dBm |
| Receiver Overload |
< -9dBm |
| Power Consumption |
≤3.2W |
| Operating Temperature |
-40 to 85°C (-40 to 185°F) |
| Protocols |
ITU-T G.9807.1, ITU-T G.987.2, ITU-T G.988, SFP+ MSA |
| Management |
Web GUI, SSH |
| DDM/DOM |
Supported |
