Overview

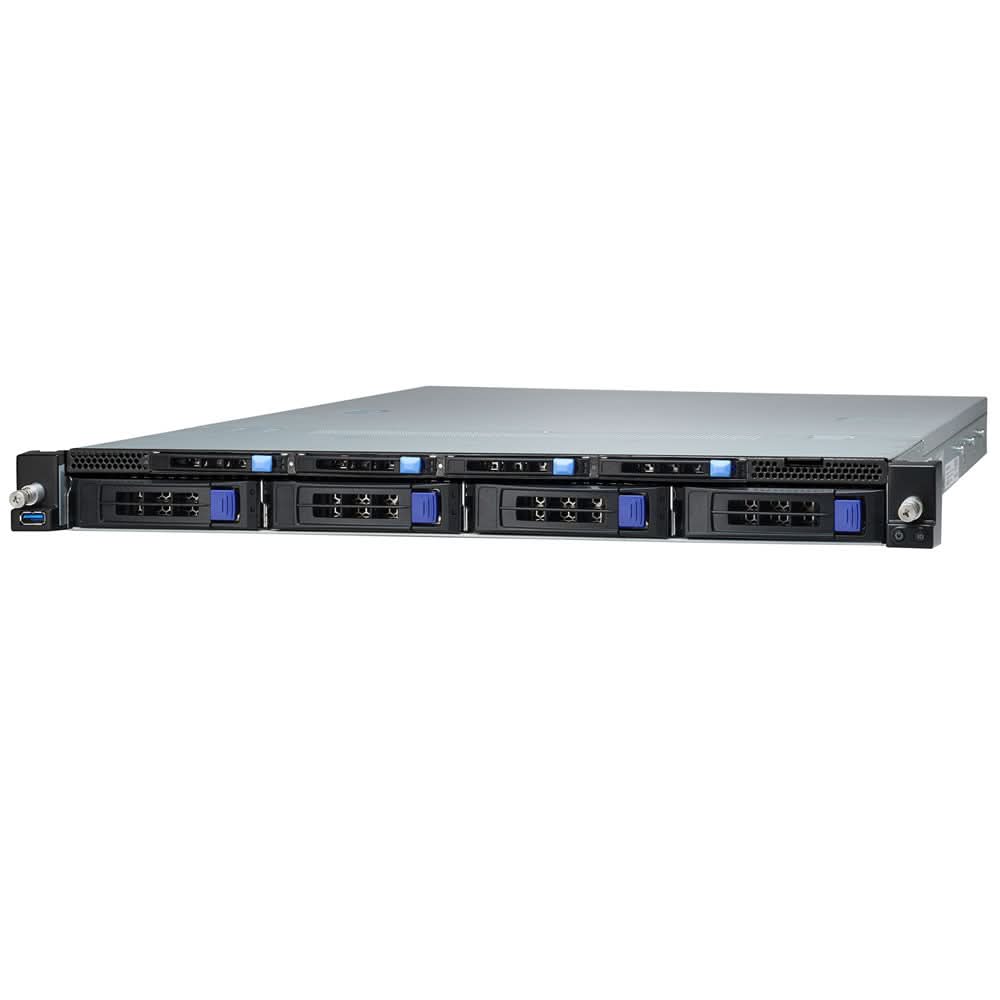

Tyan B8036G68V4E4HR-LE 1U1S Cloud Server AMD EPYC 7003 Series 3rd Gen

Specifications

Model Number:B8036G68V4E4HR-LE

Brand: Tyan

Alt Part Number(s):B8036G68V4E4HR-LE

Product Type:  Server

Technical Description

Brand: Tyan

Model:B8036G68V4E4HR-LE

Cabinet Form Factor: 1U

Processor Type: AMD EPYC 7003 Series

Processor Manufacturer: AMD

RAM Technology: DDR4

Total RAM Slots: 16

Drive Interface Type: SATA

Total Drive Bays: 8

Storage Controller Type: Serial ATA

Network Protocol: Ethernet

Power Supply Type: Standard

Power Requirements: AC 100–240V

Interfaces & Connections:

• USB:

  • 1 × USB 3.1 Gen 1 Type-A port

  • 2 × USB 3.1 Gen 1 ports (via cable)

  • 2 × USB 3.1 Gen 1 ports (rear)

• COM:

  • 1 × DB-9 port (COM1)

  • 1 × header (COM2)

• VGA:

  • 1 × D-Sub 15-pin port

• RJ-45:

  • 2 × Gigabit Ethernet ports

  • 1 × dedicated GbE port for IPMI

Expansion Slots (Total/Free):

• 1 × PCIe Gen 4 x16 slot (Full-Height, Half-Length)

• 1 × PCIe Gen 4 x16 slot (Half-Height, Half-Length)

Dimensions:

• Width: 17.26 inches

• Depth: 26.77 inches

• Height: 1.69 inches

RoHS Compliant: Yes

Boost your enterprise performance with the Tyan B8036G68V4E4HR-LE 1U1S Cloud Server AMD EPYC 7003 Series 3rd Gen —ORDER TODAY!

*
