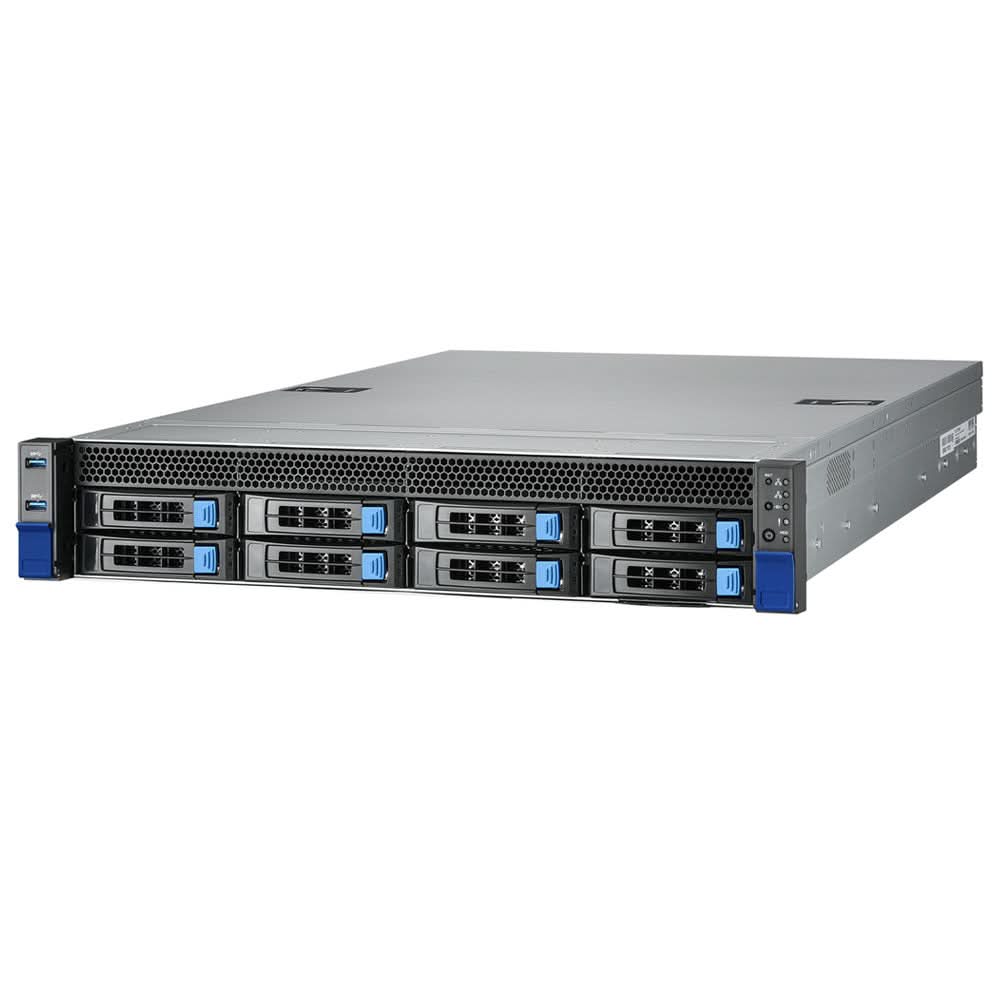

Tyan B7132T75E8HR-2T Intel Xeon SP Series 4th Gen Server

Specifications

Model Number:B7132T75E8HR-2T

Brand: Tyan

Alt Part Number(s):B7132T75E8HR-2T

Product Type:  Server

Technical Description

Brand: Tyan

Model:B7132T75E8HR-2T

Product Description: Tyan Thunder HX TS75-B7132 – 2U Rackmount Server (No CPU, No RAM, No HDD)

Form Factor: 2U Rackmount
Processor Socket: LGA4677 Socket-E
Max Supported CPUs: 2
Chipset: Intel C621A
Motherboard: Tyan S7132GM2NRE-2T

Memory:

• Slots: 32 × DIMM 288-pin

• Installed: 0 GB

• Max Capacity: 4096 GB DDR5 SDRAM

• Features: Registered, 8-channel memory architecture, 3DS registered

Storage:

• Drive Bays: 8 × hot-swap 3.5" bays

• Installed Drives: None

• Storage Controller: RAID (SATA 6Gb/s)

• RAID Levels Supported: 0, 1, 5, 10

Optical Drive: Not included

Graphics:

• Controller: ASPEED AST2600

• Interface: VGA (rear)

Networking:

• 2 × 10 Gigabit Ethernet ports (RJ-45)

• 1 × Dedicated Gigabit Ethernet for IPMI

• Controllers: Intel X710-AT2, Realtek RTL8211F

• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

• Remote Management: IPMI 2.0

Expansion Slots:

• 1 × PCIe 5.0 x4

• 4 × PCIe 5.0 x16

• 2 × M.2 slots (2280/22110)

Interfaces:

• 3 × USB 3.2 Gen 1 (2 front, 1 rear)

• 1 × VGA (rear)

• 2 × 10GbE LAN ports (RJ-45)

• 1 × Management LAN port (RJ-45)

• Buttons: Power, Reset, ID

Cooling: 6 × 60 mm fans

Power:

• Power Supplies: 2 (Installed)

• Redundancy: Yes (1+1)

• Voltage: AC 100–127V / 200–240V (50–60 Hz)

• Output: 1600W

• Certification: 80 PLUS Platinum

Operating System: Not included

Dimensions:

• Width: 17.3 in

• Depth: 29.6 in

• Height: 3.4 in

• Weight: 44.75 lbs

Shipping Weight: 72.97 lbs

Environmental Parameters:

• Operating Temperature: 50°F to 95°F

Compliance: CB, RoHS, C-Tick Class A, LVD, VCCI Class A, DOC-A, FCC SDOC Class A, SMBIOS 3.3
