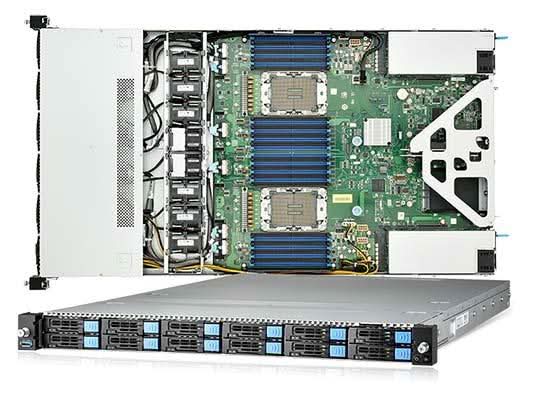

Tyan B7132G79AE12HR-2T 1U Server, Intel Xeon SP Series 4TH Gen
Specifications
Model Number: B7132G79AE12HR-2T
Brand: Tyan
Alt Part Number(s): B7132G79AE12HR-2T
Product Type: Server
Technical Description
Brand: Tyan
Model:B7132G79AE12HR-2T
System Type: Server Barebone
Model: Thunder CX GC79A-B7132
Cabinet Form Factor: 1U
Processor Type: Intel Xeon
Processor Manufacturer: Intel
Max Supported CPUs: 2
Chipset: Intel C741
RAM Technology: DDR5
RAM Slots: 32 total
Max Supported RAM: 4096 GB
Drive Bay Size: 2.5"
Drive Interface: SATA 6 Gb/s, NVMe
Drive Bays: 16 total
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10
Networking Protocol: Gigabit Ethernet
Power Supply Type: Redundant Power Supply
Power Supplies Installed: 2
Voltage Required: AC 100–127V / 13A or AC 200–240V / 7A
Interfaces & Connections: USB 3.2 Gen1, D-Sub 15-pin (VGA), RJ45
Expansion Slots:
2 × PCIe Gen5 x16 slots
1 × PCIe Gen5 x16 OCP 3.0 mezzanine slot
*
