Description
The Trane X70370271010 is an OEM condenser fan motor engineered for compatible Trane and American Standard outdoor air conditioning and heat pump units. This replacement motor delivers dependable airflow through the condenser coil to support efficient heat rejection and stable system operation. Designed to original equipment specifications, it provides reliable performance for residential HVAC applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Trane |
| Category |
HVAC Control |
| Part Number |
X70370271010 |
| Subcategory |
Condenser Fan Motor |
| Manufacturer |
Trane |
| Product Type |
OEM Condensing Fan Motor |
| Compatible Brands |
Trane, American Standard |
| Horsepower |
1/8 HP |
| Input Voltage |
200–230 VAC |
| Phase |
Single Phase |
| Motor Speed |
1075 RPM |
| Rotation |
CCWLE (Counterclockwise Leading End) |
| Frame Size |
48 |
| Capacitor Requirement |
5 µF, 370 VAC |
| Motor Design |
Permanent Split Capacitor (PSC) |
| OEM Replacement For |
Genteq 5KCP39DGV441AS |
| Application |
Residential Air Conditioner and Heat Pump Condensing Units |
| Weight |
9.0 lbs (4.1 kg) |

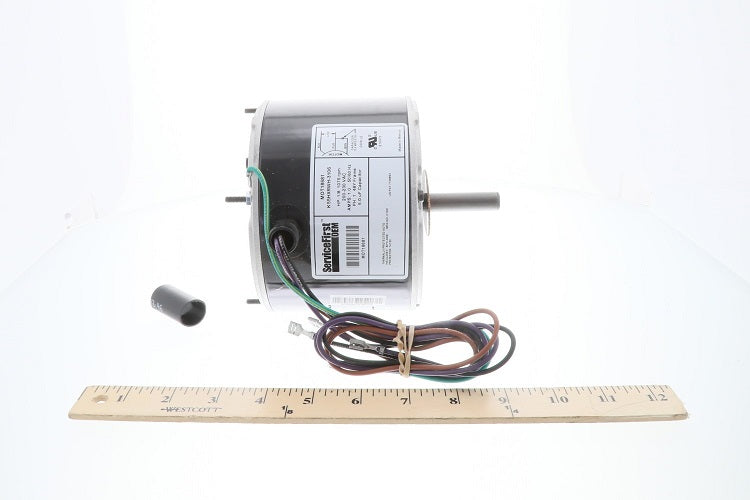

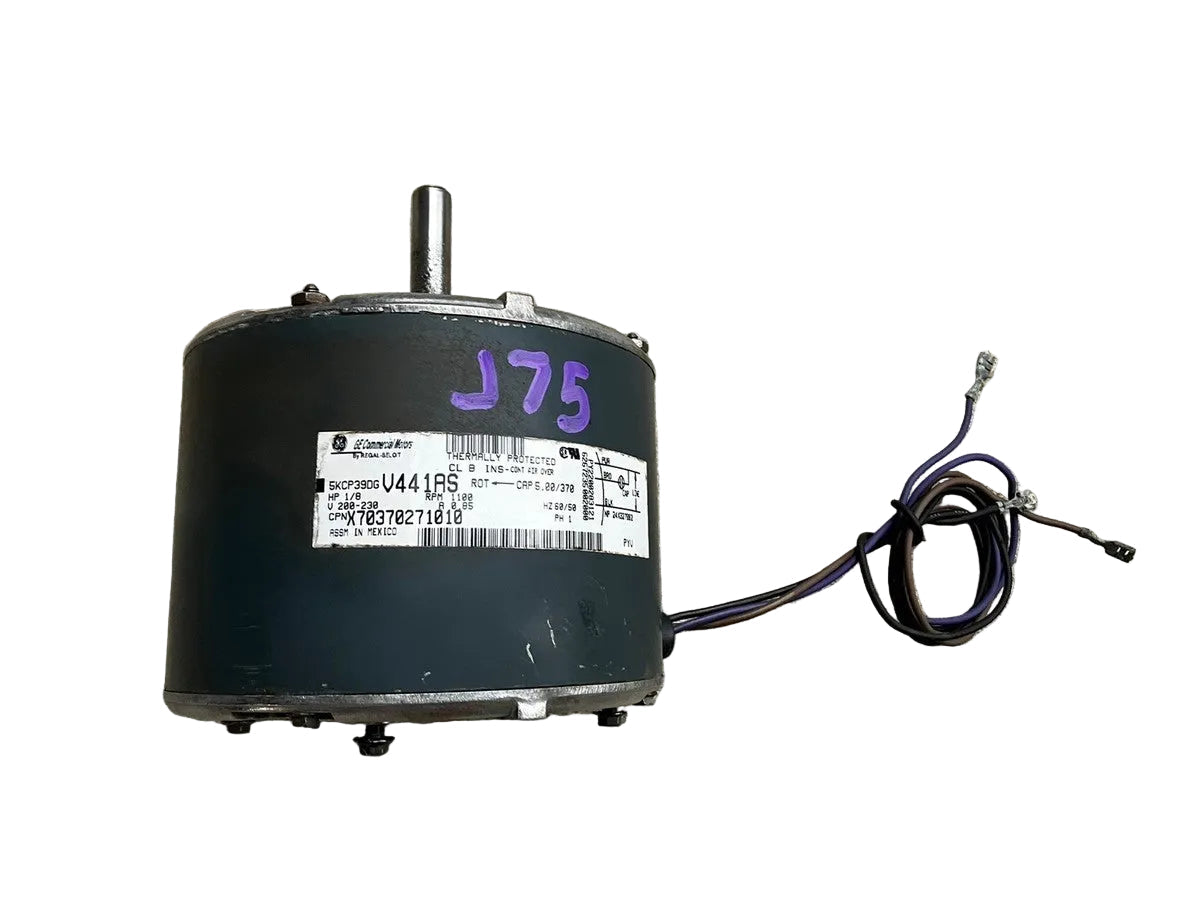

Information About X70370271010
The X70370271010 is a genuine Trane condenser fan motor developed for residential condensing units and heat pumps manufactured by Trane and American Standard. It features a 1/8 horsepower, single-phase permanent split capacitor motor operating on 200–230 VAC at 1075 RPM with a 48-frame design and counterclockwise leading-end rotation (CCWLE). The motor is designed as a direct OEM replacement for the original condenser fan assembly and is compatible with a 5 µF, 370 VAC run capacitor. It also replaces the original Genteq motor identified by part number 5KCP39DGV441AS while maintaining the factory airflow and cooling performance required by the equipment.
Key Features:
- Genuine Trane OEM Motor: Factory replacement for compatible Trane and American Standard condensing units.
- 1/8 Horsepower Output: Provides dependable airflow for residential air conditioning and heat pump systems.
- 200–230 VAC Operation: Designed for standard single-phase HVAC electrical systems.
- 1075 RPM Speed: Delivers the condenser airflow required for efficient heat transfer.
- 48 Frame Construction: Standard frame size allows direct installation in compatible equipment.
- CCWLE Rotation: Counterclockwise leading-end shaft rotation matches original OEM specifications.
- Genteq Replacement: Direct replacement for Genteq motor 5KCP39DGV441AS.
- Permanent Split Capacitor Design: Operates with a 5 µF, 370 VAC run capacitor for reliable performance.
The X70370271010 delivers the reliability and precision required for condenser airflow and heat rejection in compatible residential air conditioning and heat pump systems.
