[shortdesc]
- TP-Link TL-SG2218P is an 18-port Gigabit smart switch featuring 16 PoE+ ports with a 150W budget, 2 SFP uplinks, advanced Layer 2+/L3 Lite functionality, and Omada SDN cloud management—ideal for small and medium business networks
[/shortdesc]
[specifications] [/specifications]

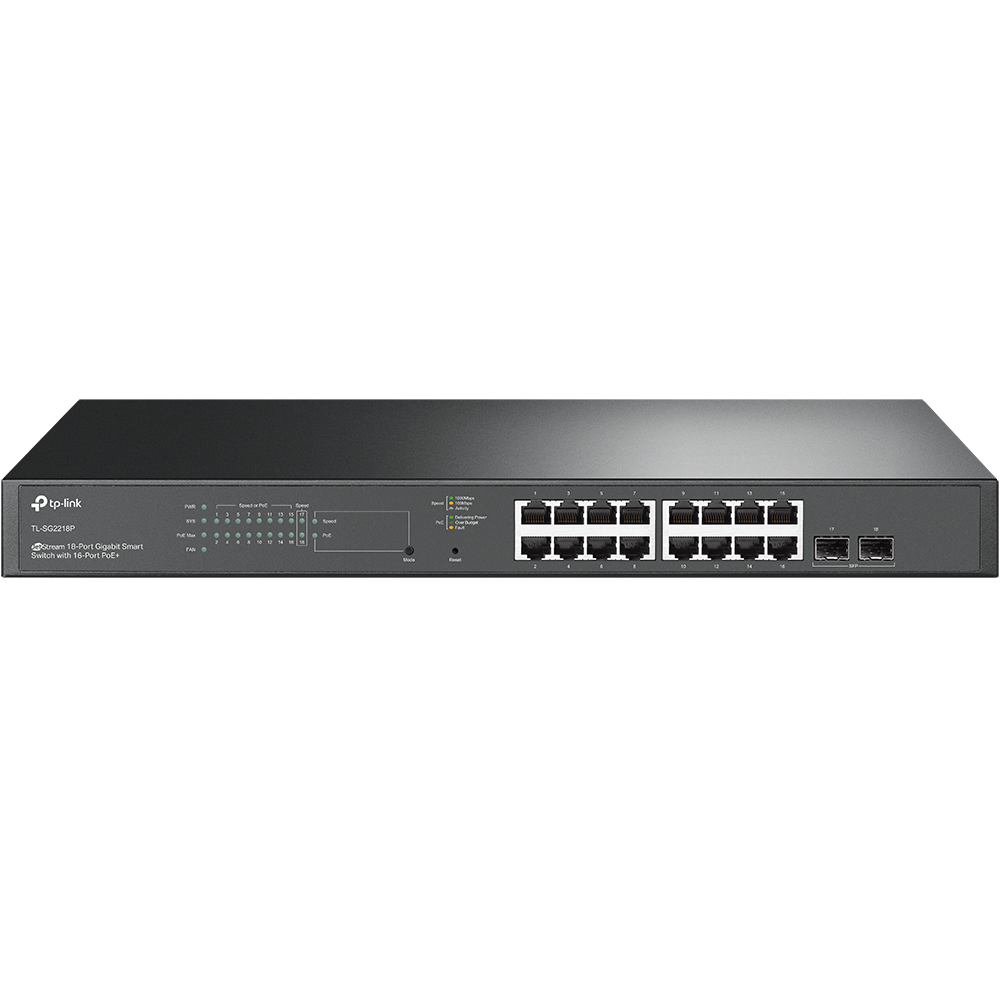

TP-Link TL-SG2218P JetStream Smart Switch 16xGE PoE+
The TP-Link TL-SG2218P is a high-performance 18-port Gigabit smart switch designed for cost-effective business networking. It includes 16 PoE+ ports (802.3af/at compliant) with a total power budget of 150W, ideal for powering IP cameras, VoIP phones, and access points. Two dedicated Gigabit SFP uplink slots ensure smooth long-distance transmission for reliable backbone connectivity. Integrated with the Omada Software Defined Networking (SDN) platform, this switch supports centralized cloud management, Zero-Touch Provisioning, and intelligent network monitoring. With a comprehensive feature set including VLAN, QoS, IGMP Snooping, ACLs, and Static Routing, the TL-SG2218P is an ideal core or access switch for growing professional networks.
Key Features:
-
16 PoE+ Ports: IEEE 802.3af/at compliant with up to 30W per port, delivering a total 150W PoE power budget.
-
Full Gigabit Access: 16× RJ45 Gigabit ports and 2× SFP slots for high-speed fiber uplinks.
-
Omada SDN Support: Centralized cloud management, zero-touch deployment, and mobile app monitoring.
-
Advanced L2+/L3 Lite Functions: Supports VLAN, IGMP Snooping, Static Routing, Link Aggregation, and DHCP services.
-
Comprehensive Security: 802.1X, Port Security, IP-MAC-Port Binding, DoS Defend, DHCP Snooping, and Radius Authentication.
-
Optimized for Voice & Video: L2/L3/L4 QoS with 8 priority queues, Voice VLAN, and IGMP Snooping.
-
Silent & Compact: Rackmountable metal housing with one fan and energy-efficient operation.
Technical Specifications:
-
Ports: 16× 10/100/1000 Mbps PoE+ RJ45, 2× Gigabit SFP
-
PoE Standard: IEEE 802.3af/at
-
Total PoE Power Budget: 150W
-
Switching Capacity: 36 Gbps
-
Forwarding Rate: 26.78 Mpps
-
MAC Address Table: 8K
-
Jumbo Frame: 9 KB
-
Packet Buffer Memory: 4.1 Mbit
-
Power Supply: 100–240V AC, 50/60 Hz
-
Max Power Consumption: 181.4W (with full PoE load)
-
Cooling: 1 internal fan
-
Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
-
Mounting: Rack-mountable
-
Operating Temperature: 0–50°C (32–122°F)
-
Certifications: CE, FCC, RoHS
