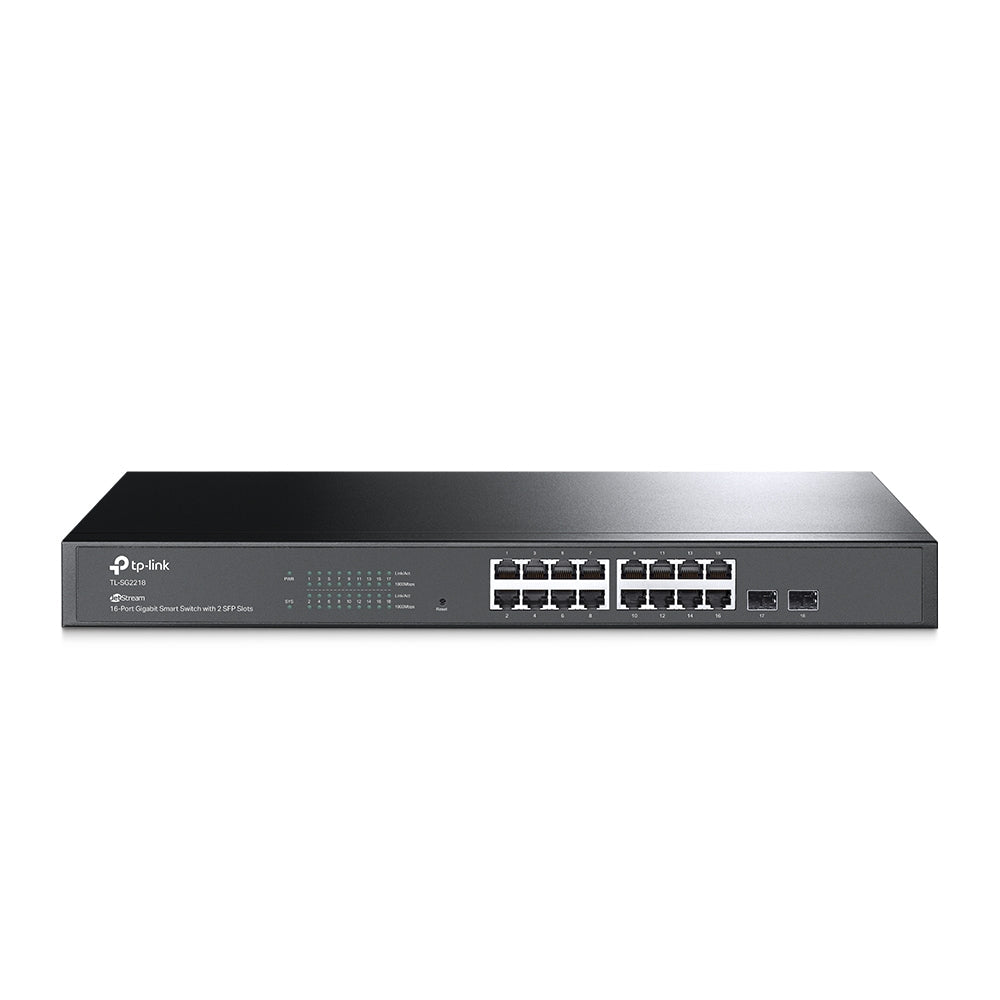

TP-Link TL-SG2218 JetStream Gigabit Smart Switch 16xGE

The TP-Link TL-SG2218 JetStream is a smart-managed Gigabit switch designed for professional networks that require high performance, security, and centralized cloud control. With 16 RJ45 Gigabit ports and 2 SFP slots, this switch offers powerful connectivity for access layer deployment. It features seamless integration with Omada SDN, enabling Zero-Touch Provisioning and centralized management via the cloud, app, or local controller. Comprehensive Layer 2 and Layer 2+ features like VLAN, QoS, IGMP Snooping, and Static Routing ensure reliable and optimized performance for voice, video, and data applications. Built with a fanless metal chassis and rackmount-ready design, the TL-SG2218 delivers silent operation and long-lasting reliability in business and campus environments.

Key Features:

• Full Gigabit Ports: 16× RJ45 10/100/1000 Mbps ports and 2× SFP uplinks for high-speed backbone or uplink connections.
• Omada SDN Integration: Enables centralized cloud management and Zero-Touch Provisioning across multiple sites.
• Advanced L2/L2+ Capabilities: Supports 802.1Q VLAN, STP/RSTP/MSTP, Link Aggregation, IGMP Snooping, and Static Routing.
• Robust Security: Includes IP-MAC-Port Binding, DHCP Snooping, DoS Defend, Port Security, 802.1X, and Access Control Lists.
• Optimized for Voice and Video: Offers L2/L3/L4 QoS, Voice VLAN, and multicast stream control.
• IPv6 Ready: Supports IPv6 dual stack, IPv6 ACL, DHCPv6, MLD Snooping, and ICMPv6 for future-proof networking.
• Silent Operation: Fanless design ensures noise-free performance, suitable for noise-sensitive environments.
• Rackmountable Design: Compact metal housing with included mounting accessories for easy deployment.

Technical Specifications:

• Ports: 16× Gigabit RJ45, 2× Gigabit SFP Slots
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.8 Mpps
• MAC Address Table: 8K entries
• Jumbo Frame: 9 KB
• PoE Support: Not applicable (Non-PoE model)
• Management: Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON, Dual Image
• Power Supply: 100–240V AC, 50/60Hz
• Max Power Consumption: 12.3 W
• Cooling: Fanless
• Mounting: Rackmountable
• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
• Operating Temperature: 0–40°C (32–104°F)
• Certifications: CE, FCC, RoHS
