Overview

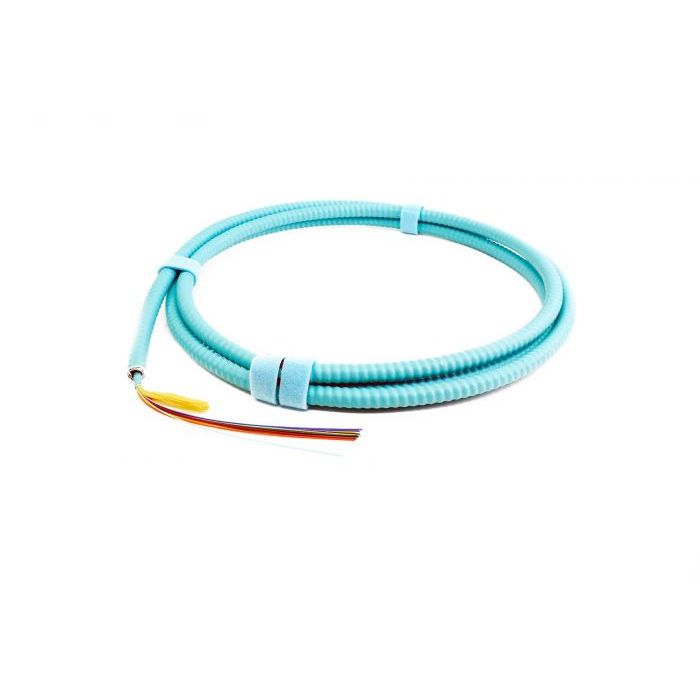

The TLC Micro-Distribution Cable with Aluminum Interlocking Armor is a high-density fiber optic solution engineered for indoor environments where space optimization is critical. Featuring 48 fibers and constructed with a plenum-rated jacket, this cable is designed for deployment in data centers and premise network infrastructures.
Key Features
-
Aluminum Interlocking Armor: Provides a robust mechanical layer that protects the internal fiber bundle from physical impact and crush forces during routing.
-
48-Fiber Count Configuration: Groups fibers into 12-fiber subunits, facilitating organized identification and systematic termination in high-density environments.
-
ClearCurve Multimode Fiber: Utilizes laser-optimized 50/125um OM3 fiber, which allows for smaller bend radii compared to standard multimode fiber while maintaining signal integrity.
-
Plenum-Rated Jacket: Constructed with materials that meet rigorous fire safety standards for use in air-handling spaces above ceilings or below raised floors.
Technical Specifications
| Fiber Count |
48 |
| Fiber Type |
Multimode 50/125um (OM3) |
| Cable Type |
Micro-Distribution |
| Armor Type |
Aluminum Interlocking Armor |
| Jacket Rating |
Plenum |
| Subunit Configuration |
Groups of 12 fibers |
| Color |
Aqua |
| Unit of Measurement |
Meter (Mtr) |
