Overview

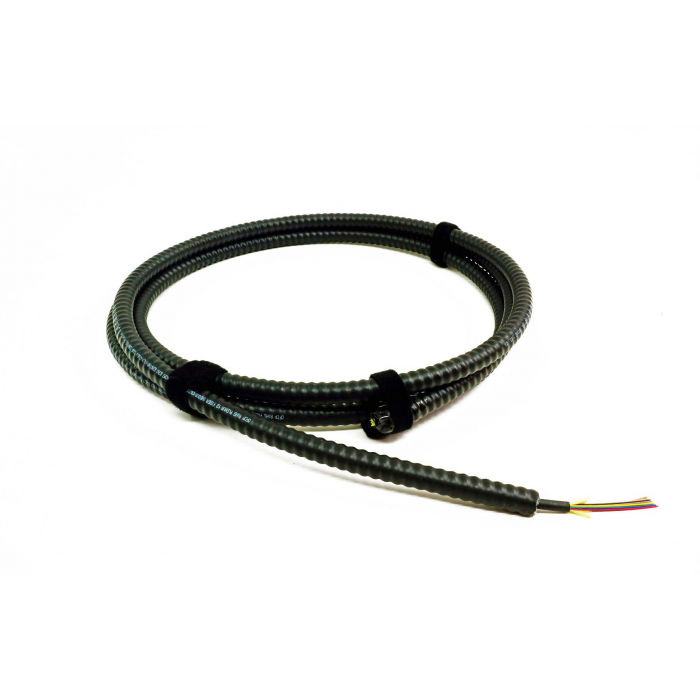

The TLC Indoor/Outdoor Fiber Optic Cable features a 6-fiber distribution construction equipped with Aluminum Interlocking Armor for enhanced mechanical protection. This cable utilizes Corning SMF-28 Ultra singlemode fiber and is designed with a plenum-rated jacket suitable for both indoor and outdoor environments.
Key Features
-
Aluminum Interlocking Armor: Provides a robust metallic layer that protects the internal fiber strands against physical impact and crushing forces during installation and service.
-
900μm Tight Buffered Fibers: Allows for direct termination of connectors onto the fiber strands without requiring additional breakout kits, facilitating efficient field assembly.
-
Gel-Free Construction: Eliminates the need for cleaning messy gels, which simplifies the termination process and allows for faster connector installation.
-
Plenum-Rated Jacket: Features a fire-retardant outer sheath that meets strict building code requirements for installation in air-handling spaces.
-
UV-Resistant Outer Jacket: Ensures the cable remains durable and maintains its physical properties when exposed to sunlight in outdoor deployments.
Technical Specifications
| Attribute |
Detail |
| Fiber Count |
6 Fibers |
| Fiber Type |
Singlemode 9/125μm (OS2) |
| Fiber Brand |
Corning SMF-28 Ultra |
| Cable Construction |
Distribution |
| Jacket Rating |
Plenum |
| Armor Type |
Aluminum Interlocking Armor |
| Buffer Size |
900μm Tight Buffer |
| Strength Members |
Water-blocking aramid yarn |
| Jacket Characteristics |
UV-Resistant, Black |
