Overview

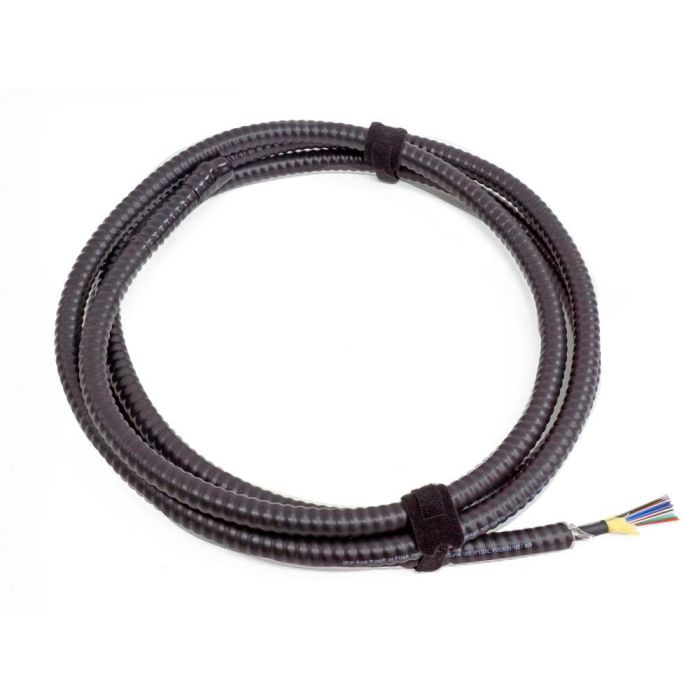

This 24-fiber indoor/outdoor cable utilizes 50/125µm OM3 ClearCurve multimode fiber and is encased in an aluminum interlocking armor layer. It is designed with a plenum-rated black jacket suitable for both indoor and outdoor environments. The construction utilizes tight buffered fibers to facilitate direct termination.
Key Features
-
Aluminum Interlocking Armor: Provides mechanical protection for the internal fibers, reducing the risk of crushing or damage in rugged environments.
-
Plenum Rated Jacket: Constructed with materials that meet fire safety standards for use in plenum spaces, such as dropped ceilings or raised floors.
-
900µm Tight Buffered Fibers: Allows for direct termination of connectors onto the fiber strands without requiring additional breakout kits.
-
Water Blocking Aramid Yarn: Incorporates internal aramid yarn that serves as both a strength member and a water-blocking agent to protect the cable core.
-
Gel-Free Construction: The cable does not contain gels, which allows for cleaner and more efficient termination processes.
Technical Specifications
| Fiber Count |
24 |
| Fiber Type |
Multimode 50/125µm OM3 (ClearCurve) |
| Cable Type |
Indoor/Outdoor Distribution |
| Jacket Rating |
Plenum |
| Armor Type |
Aluminum Interlocking |
| Buffer Type |
900µm Tight Buffered |
| Strength Member |
Water-blocking aramid yarn |
| Jacket Color |
Black |
| Outer Diameter |
7.8mm |
